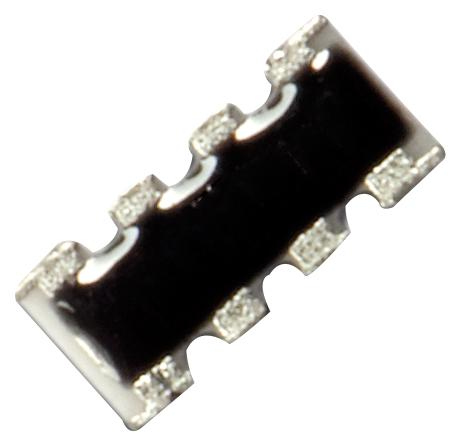

TTElectronics - Welwyn GBCN164AB1R21F7 Resistor Array
The GBCN164AB1R21F7 is a green thick film chip resistor array designed for industrial and electronic applications. Featuring four isolated resistors on a compact 1206 package, it offers a resistance range from 1 ohm to 1 megaohm with a ±15% tolerance. This RoHS-compliant, Pb-free component is suitable for high-temperature environments and cyclic load conditions. Its construction includes ruthenium oxide protection on an alumina substrate, nickel barrier, and tin finish, ensuring durability and reliability in demanding electronic circuits.
TTElectronics - Welwyn GBCN164AB1R21F7 Resistor Array Specifications:
- Dimensions: 16.0 mm length, 5.0 mm width, 0.4 mm thickness
- Package: 1206
- Resistor Power Rating @70°C: 63 mW
- Package Power Rating @70°C: 250 mW
- Resistance Range: 1Ω to 1MΩ
- Resistance Tolerance: ±15%
- TCR: <100 ppm/°C
- Maximum Overload Voltage: 100 V
- Operating Temperature Range: -55°C to +155°C
- Material: Ruthenium Oxide, Alumina Substrate
- Dielectric Withstand Voltage: 300 V
- Construction: Nickel Barrier, Tin Finish
- Marking: 3 digits for 5%, 4 digits for 1%
- Reliability: RoHS compliant, AEC-Q200 qualified
Buy the Buy TT Electronics GBCN164AB Part Number 1R21F7 Online
Purchase the TT Electronics GBCN164AB1R21F7 resistor array online today. This four-resistor chip offers high durability, RoHS compliance, and a wide resistance range from 1 ohm to 1 megaohm. Its robust construction ensures performance in demanding environments up to 155°C. With a compact 1206 package and detailed specifications, this Pb-free resistor array is perfect for precise circuit design and industrial applications. Get reliable, long-lasting electrical components quickly and conveniently from our online store.
Order your TT Electronics GBCN164AB1R21F7 resistor array today and enhance your electronic projects with dependable, high-temperature, RoHS-compliant components.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GBCN164AB1R21F7?
You can click on the BUY or RFQ button to purchase GBCN164AB1R21F7 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GBCN164AB1R21F7?
You can download the GBCN164AB1R21F7 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GBCN164AB1R21F7?
TTElectronics - Welwyn
