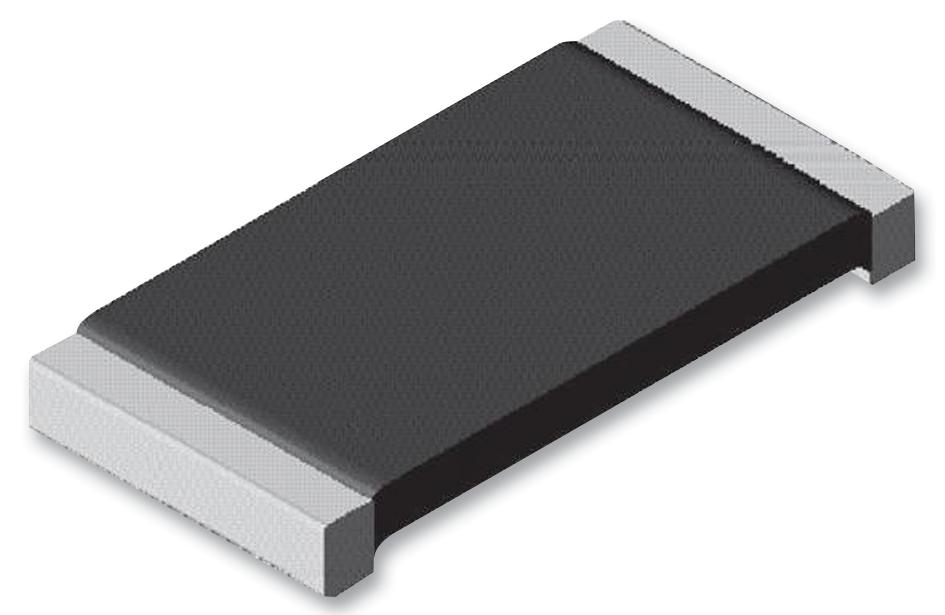

TTElectronics - Welwyn LCS12061R0FT3 Current Sense Resistor
The LCS1206 Low Value Current Sense Thin Film Chip Resistor provides precise current sensing in electronics with high stability and accuracy. Manufactured using thin film technology on a 96% alumina substrate, these resistors feature wrap-around tin-plated terminations for reliable soldering. They are rated for power up to 0.25W at 70°C, with resistance values down to R10 (100mΩ). Offering temperature stability, resistance tolerance of ±1%, and RoHS compliance, the LCS series is ideal for accurate current measurement in compact electronic circuits.
TTElectronics - Welwyn LCS12061R0FT3 Current Sense Resistor Specifications:
- Resistance range: R20-1Ω, R10-1R0
- Power rating at 70°C: 0.125W to 0.25W depending on size
- Resistance tolerance: ±0.5%, ±1%, ±5%
- Temperature coefficient: <R30: +100 ppm/°C, R30: 450 ppm/°C
- Maximum voltage: 50V to 150V depending on series
- Size options: 0603, 0805, 1206, 2010, 2512
- Dimensions: Length varies from 1.60mm to 6.32mm; Width: 0.80mm to 3.20mm
- Operating temperature range: -55°C to +155°C
- Terminations: Sn matte plated, wrap-around, suitable for soldering
- RoHS compliant and Pb-free
Buy the TT Electronics Series LCS Low Value Current Sense Resistor: LCS1206
Order the TT Electronics LCS1206 low value current sense resistor online today. Designed for precision current sensing in compact electronic systems, these resistors feature thin film technology, stable resistance values down to 100mΩ, and RoHS compliance. With high-temperature stability, wrap-around tin-plated terminations for secure soldering, and a wide operating temperature range, it’s the ideal choice for engineers seeking reliable and accurate current measurement in demanding environments. Enhance your electronic designs with these dependable, compact resistors, available now for fast online purchase.
Buy TT Electronics LCS1206 low value current sense resistor now and experience unmatched reliability and performance in electronic current measurement applications.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LCS12061R0FT3?
You can click on the BUY or RFQ button to purchase LCS12061R0FT3 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LCS12061R0FT3?
You can download the LCS12061R0FT3 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LCS12061R0FT3?
TTElectronics - Welwyn
