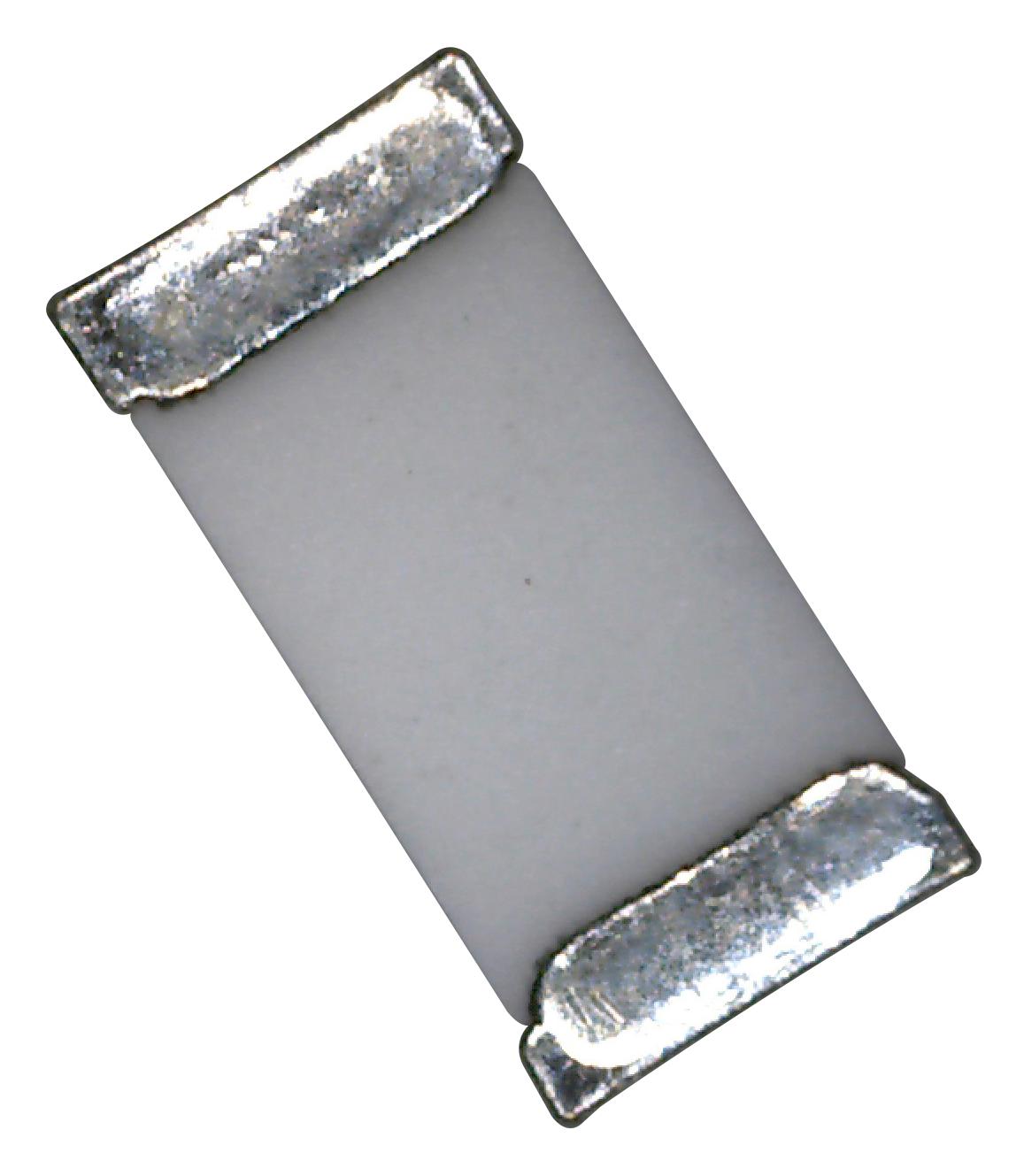

TTElectronics - Welwyn LR12061R0FW Low-Value Flat Chip Resistor
The Welwyn LR series consists of automotive-grade, low-value, flat chip resistors available in sizes 1206, 2010, and 2512. These resistors feature solder-plated copper wrap-around terminations and range from 0.003 ohms to 1 ohm across E24 values. They provide power ratings of 0.5W, 1W, and 2W, with tolerances of ±1%, ±2%, and ±5%. Operating voltages reach up to 200V, with temperature ranges from -55°C to +150°C. Multiple TCR options include ±100ppm/°C, +200ppm/°C, +300ppm/°C, +500ppm/°C, and +900ppm/°C. These resistors are suitable for high-precision and automotive applications.
TTElectronics - Welwyn LR12061R0FW Low-Value Flat Chip Resistor Specifications:
- Size options: 1206, 2010, 2512
- Resistance range: 0.003 ohms to 1 ohm
- Power ratings: 0.5W (1206), 1W (2010), 2W (2512)
- Resistance Tolerance: ±1%, ±2%, ±5%
- Voltage withstand: Up to 200V
- Operating temperature: -55°C to +150°C
- TCR options: ±100ppm/°C, +200ppm/°C, +300ppm/°C, +500ppm/°C, +900ppm/°C
- Termination: Copper wrap-around, solder-plated
- Compliance: RoHS, AEC-Q200 qualified
- Dimensions (mm): LR1206 (3.2×0.305), LR2010 (5.2×0.38), LR2512 (6.5×3.25)
Buy the Buy TT Electronics Resistor Part Number LR12061R0FW Online
Secure your TT Electronics LR series resistor LR12061R0FW online today for automotive-grade reliability. These resistors in sizes 1206, 2010, and 2512 offer resistance down to 0.003 ohms, supporting high current and precision applications. With power ratings up to 2W, operating across -55°C to +150°C, and various TCR options, they are ideal for automotive, industrial, and high-precision circuits. Easy ordering and fast delivery ensure your projects stay on schedule with quality components from a trusted manufacturer.
Order your TT Electronics Low-Value Flat Chip Resistor LR12061R0FW today and ensure reliable, automotive-grade performance for your high-precision projects.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LR12061R0FW?
You can click on the BUY or RFQ button to purchase LR12061R0FW from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LR12061R0FW?
You can download the LR12061R0FW datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LR12061R0FW?
TTElectronics - Welwyn
