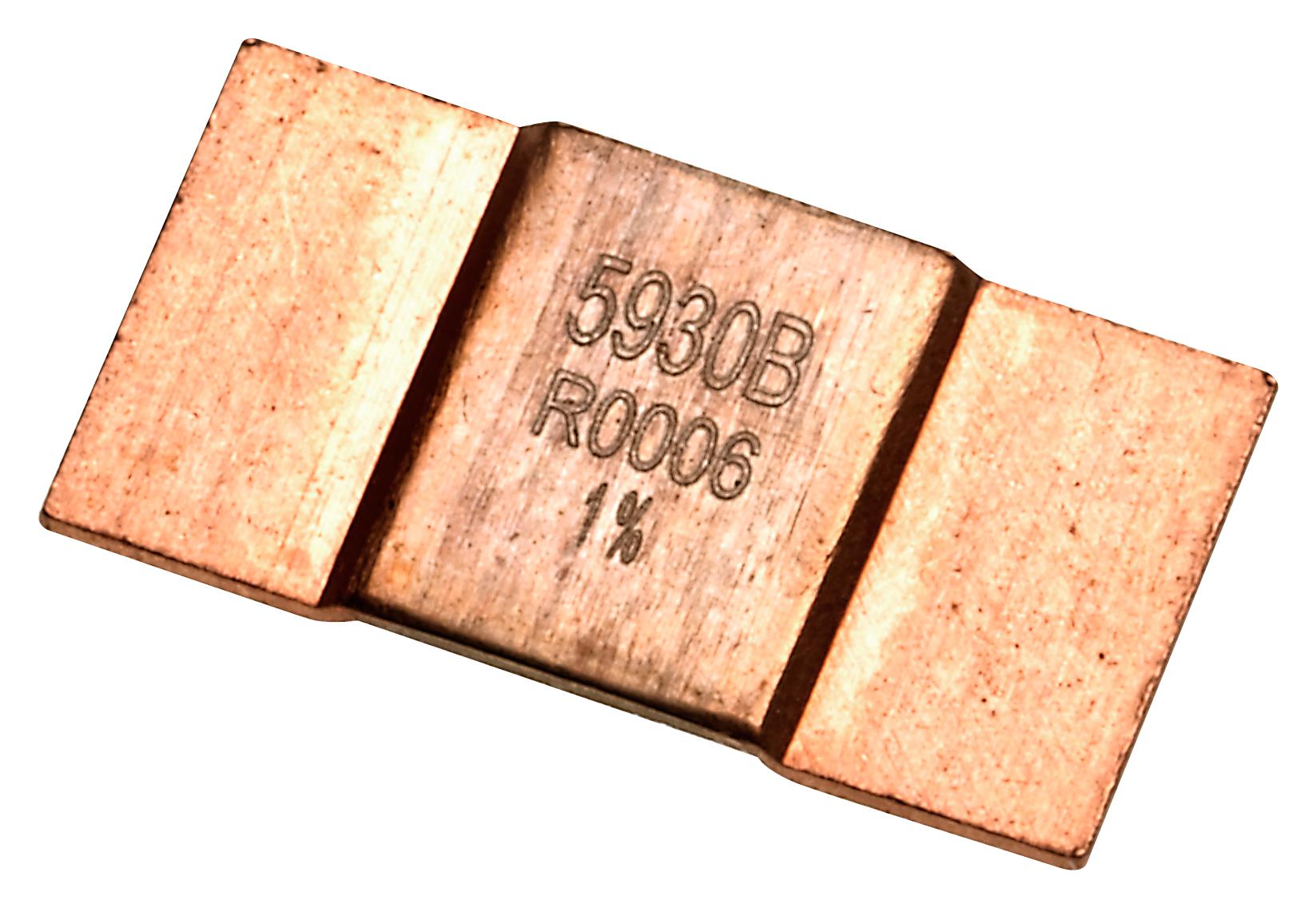

TTElectronics - Welwyn LRMAP5930BR0006FT Power Resistor
The LRMAP5930 series power resistors feature low resistance alloy elements with resistance values from 0.2mΩ to 2mΩ. These high-power resistors offer excellent long-term stability, rated up to 15W, and are suitable for current sensing in power electronics. They are RoHS3 compliant, Pb-free, and qualified for AEC-Q200 standards. Designed with precise E-beam welded resistive strips, they withstand industrial solvents and soldering processes, making them ideal for demanding industrial applications requiring accuracy, durability, and thermal stability.
TTElectronics - Welwyn LRMAP5930BR0006FT Power Resistor Specifications:
- Resistance range: 0.2mΩ to 2mΩ
- Power rating: up to 15W
- Resistance tolerance: ±1%
- TCR (20 to 60°C): ±50 ppm/°C
- Thermal EMF: n/c
- Inductance: 3 nH
- Ambient temperature: -55°C to 170°C
- Manufactured with E-beam welded resistive strips using various alloys
- Resistant to industrial cleaning solvents
- Mounted on FR4 board or thermal substrate
- Certified RoHS3, Pb-free, AEC-Q200 qualified
- Peak reflow soldering temperature: 260°C with SAC387 alloy
- Package: 24mm tape, 2000 pieces per reel
Buy the TT Electronics LRMAP5930 U– Reliable Power Resistors for Industrial Applications
Purchase the LRMAP5930 series power resistors online today to ensure reliable current sensing and high power performance for industrial electronic systems. These resistors offer exceptional stability, thermal endurance, and RoHS compliance, making them perfect for demanding applications. With ratings up to 15W and resistance values as low as 0.2mΩ, they are ideal for high-precision, long-term operations in power electronics. Order now for fast delivery, competitive prices, and proven durability used in top-tier industrial equipment.
Get TT Electronics LRMAP5930 today—built for precision, high power, and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn LRMAP5930BR0006FT?
You can click on the BUY or RFQ button to purchase LRMAP5930BR0006FT from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRMAP5930BR0006FT?
You can download the LRMAP5930BR0006FT datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of LRMAP5930BR0006FT?
TTElectronics - Welwyn
