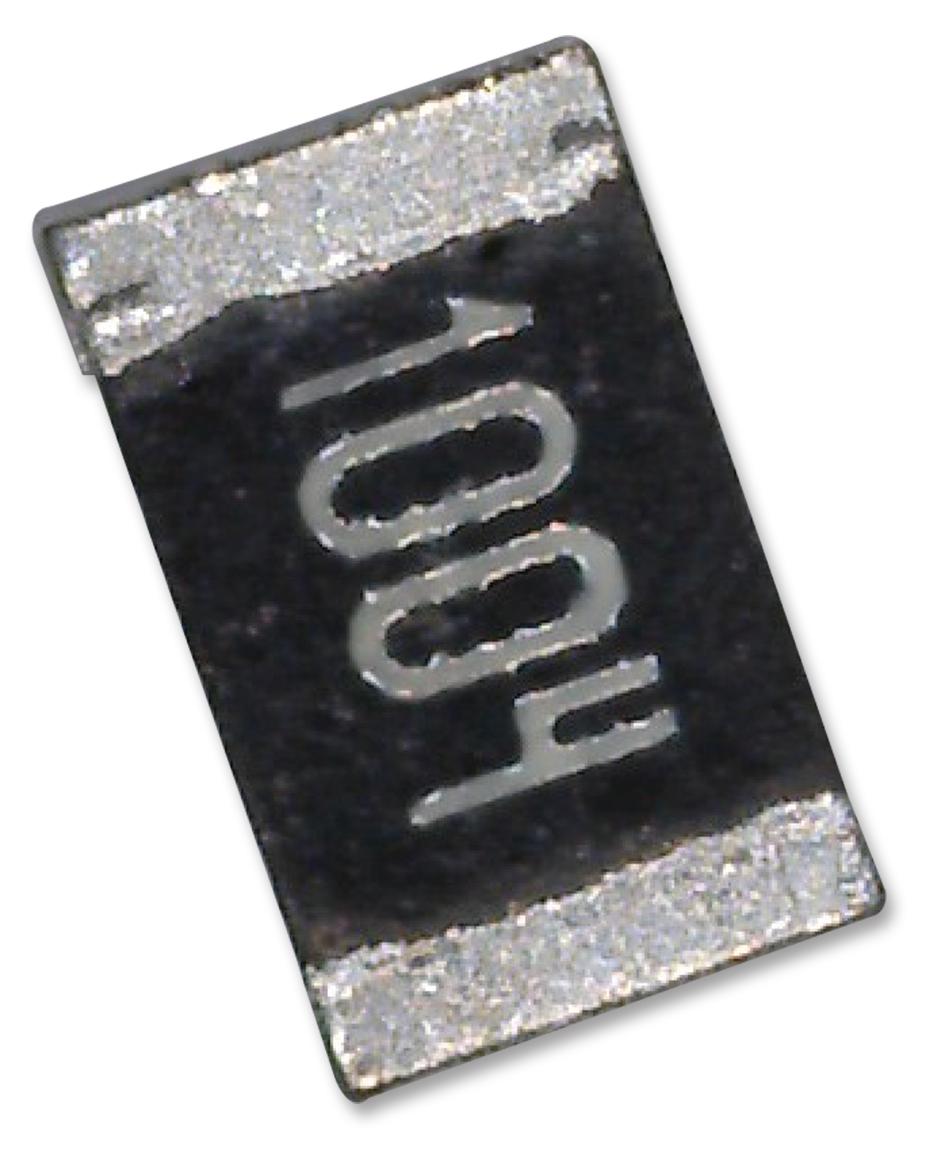

TTElectronics - Welwyn WCR0805100RFI Surface Mount Resistor
These general-purpose surface-mounted resistors from the WCR Series are designed for reliable and precise performance in electronic circuits. Featuring a high alumina substrate with ruthenium oxide resistance elements, these resistors have wrap-around terminations and meet industry standards for solderability and mechanical strength. They offer a wide resistance range, from 1 ohm to 10 megaohms, and are suitable for applications requiring high reliability, low TCR variation, and RoHS compliance. The resistors are ideal for industrial, consumer electronics, and automotive uses, providing durability and consistent performance over time.
TTElectronics - Welwyn WCR0805100RFI Surface Mount Resistor Specifications:
- Resistance Range: 1Ω to 10MΩ
- Tolerance: ±1% (1K to 10K), ±2% (above 100K), ±5% (others)
- Resistance TCR: -400ppm/°C to +600ppm/°C depending on value
- Ambient Temperature Range: -55°C to +155°C
- Substrate: Alumina (minimum 96%)
- Termination Material: Tin-plated, silver palladium with nickel barrier
- Dielectric: Glass coating for protection
- Maximum Working Voltage: 25V to 200V depending on size
- Marking: 3-digit code (significant figures + zeros)
- Compliance: RoHS2 and EU Directive 2011/65/EU
- Packaging: Tape on reels, up to 20,000 units per reel
- Shelf Life: 12 months at room temperature
- Load Life: 1000 hours at 70°C with 2% max change
- Solvent Resistance: Resistant to standard industrial cleaning fluids
- Flammability: UL 94V-0 rated
- Certifications: IEC 115-1, IEC 68.2.21
- Construction: High alumina substrate with ruthenium oxide resistor element
Buy the Buy TT Electronics WCR Series Resistors Part Number WCR0805100RFI Online
Purchase TT Electronics WCR series surface-mounted resistors online today to ensure high reliability, precise resistance values, RoHS compliance, and easy integration into your electronic designs. These resistors feature wrap-around terminations for secure soldering and broad resistance options suitable for industrial, automotive, and consumer electronics. With excellent performance, compliance with industry standards, and reliable packaging, ordering online guarantees fast delivery and quality assurance, making your project efficient and cost-effective.
Buy TT Electronics WCR1206 series resistors now and experience unmatched reliability, precision, and RoHS compliance for your electronic projects.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WCR0805100RFI?
You can click on the BUY or RFQ button to purchase WCR0805100RFI from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WCR0805100RFI?
You can download the WCR0805100RFI datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WCR0805100RFI?
TTElectronics - Welwyn
