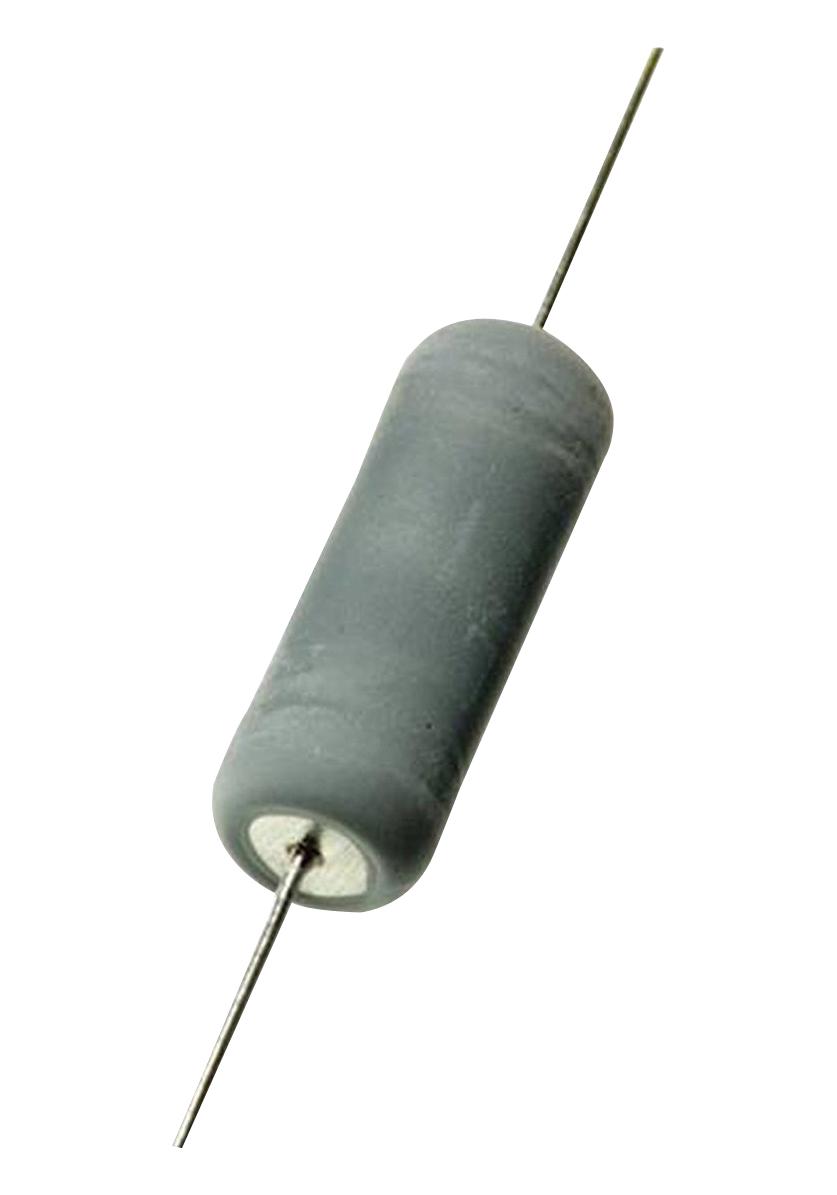

TTElectronics - Welwyn WHS715RJT07 High Surge Resistor
The Welwyn WHS series comprises axial leaded wirewound high surge resistors engineered for safety-critical applications, offering enhanced surge and pulse energy capacity. These resistors are UL recognized, flameproof (UL94-V0), and available in radial taped, surface-mount Z-form, and non-inductive configurations with hot tin dipped copper terminations. Designed with a reduced body size for space efficiency, they feature a temperature coefficient of ±200 ppm/°C, an ambient temperature range from -55°C to +155°C, and power ratings from 2W to 10W at 25°C. Suitable for line input circuits requiring safe fusing in case of malfunction, these resistors meet UL and cURus safety standards, ensuring reliable performance in demanding environments.
TTElectronics - Welwyn WHS715RJT07 High Surge Resistor Specifications:
- Resistance range: 250V to 1000V isolation voltage depending on model
- Power Ratings: 2W to 10W at 25°C
- Temperature Coefficient: ±200 ppm/°C
- Ambient Temperature Range: -55°C to +155°C
- Flameproof: UL94-V0
- Terminations: Hot tin dipped copper wire, compliant with IEC 68.2.21 and IEC 115-1
- Construction: Ceramic substrate, interference fit end caps, welded terminations
- Marking: IEC color codes or legend with type reference, resistance value, and tolerance
- Configurations: Radial taped, Z-form surface mount, non-inductive, and leaded variants
- Mounting: Suitable for PCB and through-hole mounting, with optional goalpost or lancet pre-formed leads
- Solvent Resistance: Resistant to industrial cleaning solvents
- Peak Voltage Limit: 1.2/50us at 100kV for pulsed applications
Buy the Buy TT Electronics Wirewound Surge Resistors Part Number WHS715RJT07 Online
Order the TT Electronics high surge resistor today for reliable surge handling and safety-critical power applications. These resistors feature flameproof UL94-V0 coating, UL recognition, and a robust ceramic construction with brass terminations. Designed to withstand high pulse energies and surge conditions, they are available in various configurations including radial taped and surface-mount Z-form. Suitable for line input circuits requiring safe fusing, they operate over a wide temperature range from -55°C to +155°C. Enjoy fast delivery and competitive pricing for quality resistors that ensure dependable performance in critical applications.
Get TT Electronics high surge resistors today—built for safety and long-lasting durability in demanding power circuits.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn WHS715RJT07?
You can click on the BUY or RFQ button to purchase WHS715RJT07 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part WHS715RJT07?
You can download the WHS715RJT07 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of WHS715RJT07?
TTElectronics - Welwyn
