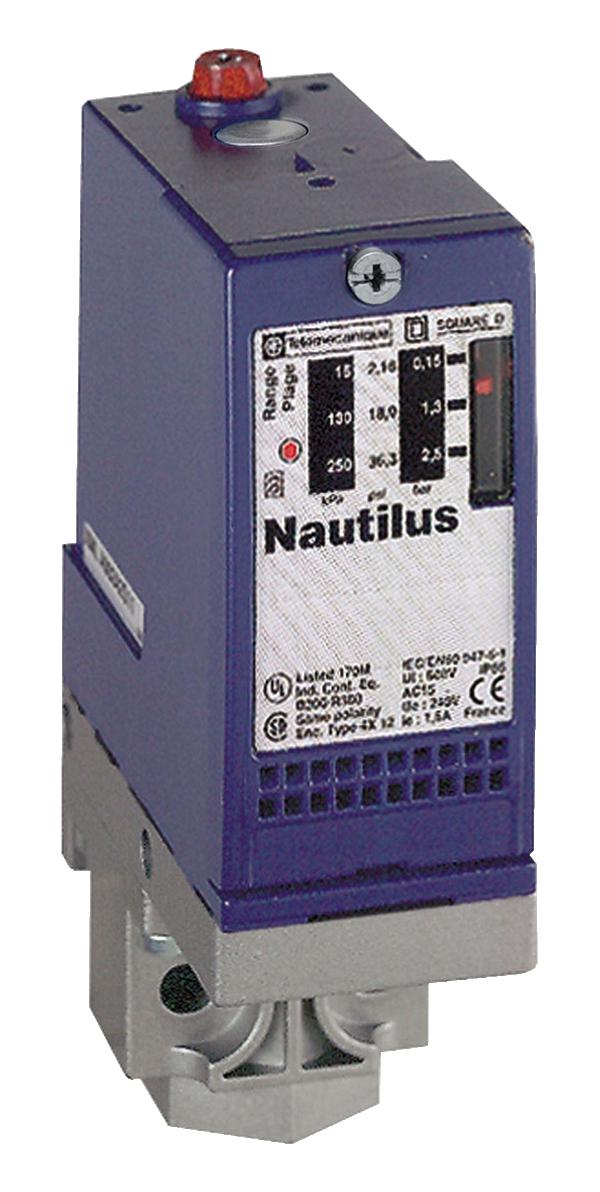

Telemecanique Sensors XMLA020A2S12 Industrial Pressure Sensor
The pressure sensor XMLA020A2S12 from the OsiSense XM series is an electromechanical device designed for air, water, and hydraulic oil pressure detection up to 20 bar (290.08 psi). It features a G 1/4 fluid connection, screw-clamp electrical terminals, and a diaphragm actuator. The sensor provides fixed differential scale with adjustable switching points for rising and falling pressures, enhanced durability with a mechanical lifespan of 5 million cycles, and conforms to numerous safety and environmental standards including UL, CE, and CSA. Suitable for industrial automation, it operates over a temperature range of -25°C to 70°C and IP66 rated for robust protection.
Telemecanique Sensors XMLA020A2S12 Industrial Pressure Sensor Specifications:
- Pressure range: 0...20 bar (0...290.08 psi)
- Controlled fluids: Air, water (fresh water 0-70°C), hydraulic oil
- Fluid connection: G 1/4 (female) conforming to ISO 228
- Electrical connection: Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm², M20 connector
- Electrical ratings: 3 A, B300, AC-15 at 120 V; 1.5 A, B300, AC-15 at 240 V; 0.1 A, R300, DC-13 at 250 V
- Materials in contact: Brass, nitrile, zinc alloy
- Enclosure material: Zinc alloy
- Ambient temperature: -25°C to 70°C (-13°F to 158°F)
- Ingress protection: IP66
- Vibration resistance: 4 gn at 30-500 Hz
- Shock resistance: 50 g
- Durability: 5 million cycles
- Operating position: Any
- Certifications: UL, CE, CSA, Lloyds register, BV
- Rated insulation voltage: 300 V (UL), 500 V (IEC)
- Impulse withstand voltage: 6 kV
- Dimensions: Height 4.45 in (113 mm), Depth 2.95 in (75 mm), Width 1.38 in (35 mm)
- Net weight: 1.51 lb (0.685 kg)
Buy the Schneider Series XMLA Pressure Sensor: XMLA020A2S12
Purchase the Schneider XMLA020A2S12 pressure sensor online today for reliable, high-precision pressure measurement in industrial applications. Featuring a G 1/4 connection, adjustable switching points, and robust IP66 enclosure, it’s ideal for air, water, and hydraulic oil systems up to 20 bar. The device offers long-lasting durability with 5 million cycles, complies with UL, CE, and CSA standards, and operates across a temperature range of -25°C to 70°C. Order now for fast delivery and trusted quality to enhance your automation and control systems.
Get Schneider XMLA020A2S12 today—built for precision and long-lasting durability in industrial pressure detection.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XMLA020A2S12?
You can click on the BUY or RFQ button to purchase XMLA020A2S12 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XMLA020A2S12?
You can download the XMLA020A2S12 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XMLA020A2S12?
Telemecanique Sensors
