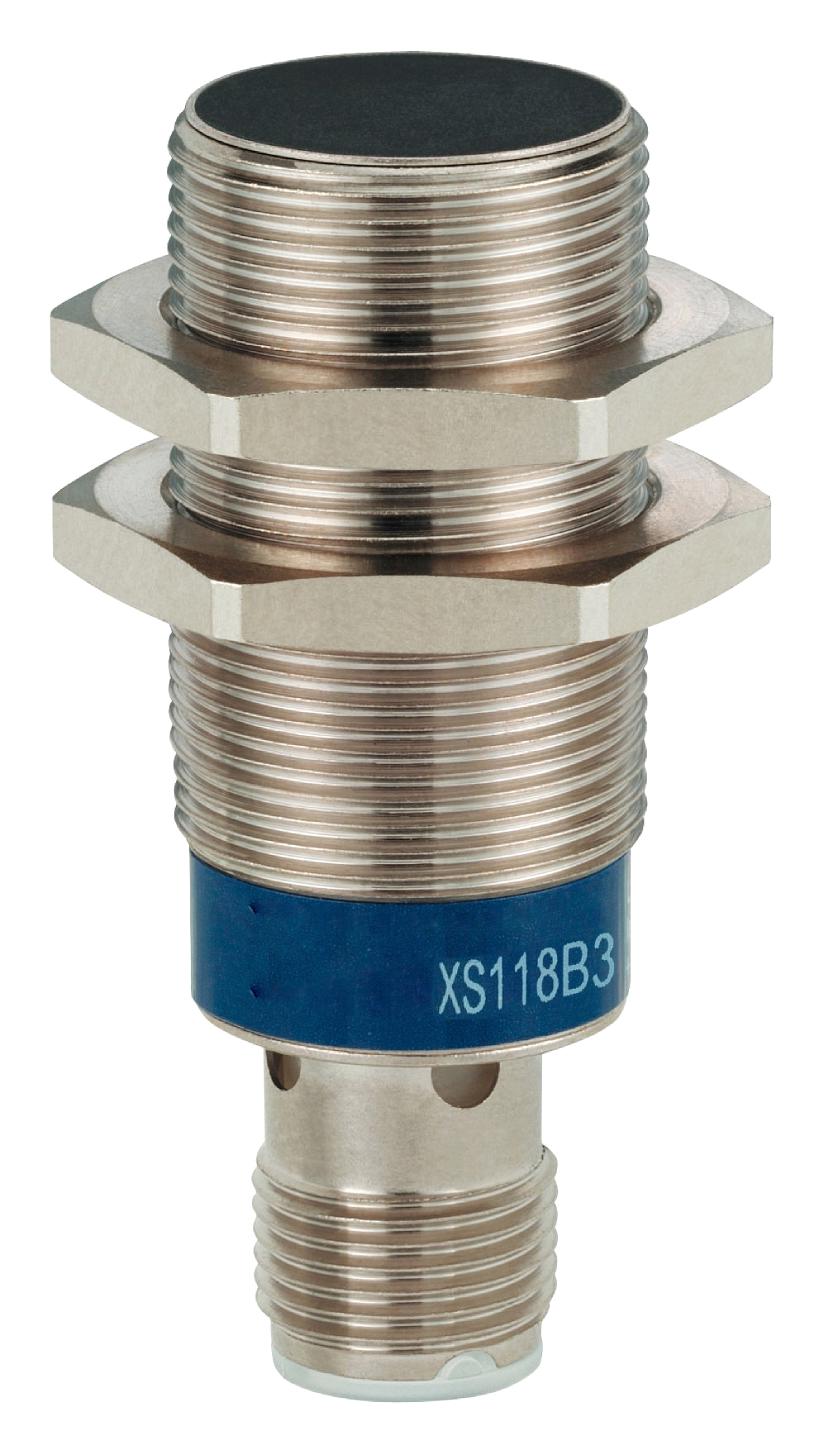

Telemecanique Sensors XS118B3PAM12 Inductive proximity sensor
The XS118B3PAM12 is a robust inductive proximity sensor designed for industrial applications, featuring a cylindrical M18 metal body with thread. Capable of detecting metal objects within a 8 mm range, it operates at 12 to 24 V DC with PNP normally open discrete output. The sensor is flush-mountable, IP65/IP67 rated, and has a frontal detection face made of PPS. Its compact size (50 mm length) and M12 connector offer easy integration, with specifications ensuring durability, fast response, and resistance to vibration and shock, suitable for mobile equipment and automation systems.
Telemecanique Sensors XS118B3PAM12 Inductive proximity sensor Specifications:
- Sensor type: Inductive proximity sensor
- Body material: Nickel plated brass
- Detection face: Frontal, made of PPS
- Size: 50 mm length, M18 x1 thread
- Detection distance: 8 mm (0.31 in)
- Operating voltage: 12...24 V DC with reverse polarity protection
- Output signal: Discrete PNP NO
- Wiring: Male connector M12, 4 pins
- Ingress protection: IP65 and IP67
- Maximum switching frequency: <= 1000 Hz
- Response time: 0.3 ms, Delay up to 10 ms
- Current consumption: <= 10 mA
- Vibration resistance: 25 gn, 10-55 Hz
- Shock resistance: 50 gn, 11 ms
- Ambient temperature (operation): -25°C to 70°C
- Certifications: UL, CSA, E2
- Thread length: 28 mm
- Mounting distances: 16 mm side-by-side, 100 mm face-to-face, 25 mm facing metal object
Buy the Schneider Electric XS118B3PAM12 – Reliable Inductive Sensor for Industrial Applications
Secure your automation needs with the Schneider Electric XS118B3PAM12 inductive sensor. Designed for durability, it features a compact 50 mm metal body, IP65/IP67 protection, and a detection range of 8 mm at 12-24 V DC. Its fast response time and high vibration resistance make it ideal for mobile and industrial equipment, ensuring reliable operation in demanding environments. Purchase online today and enhance your system's performance with proven quality and ease of integration.
Buy Schneider Electric XS118B3PAM12 now and experience unmatched reliability and performance in your industrial automation projects.
