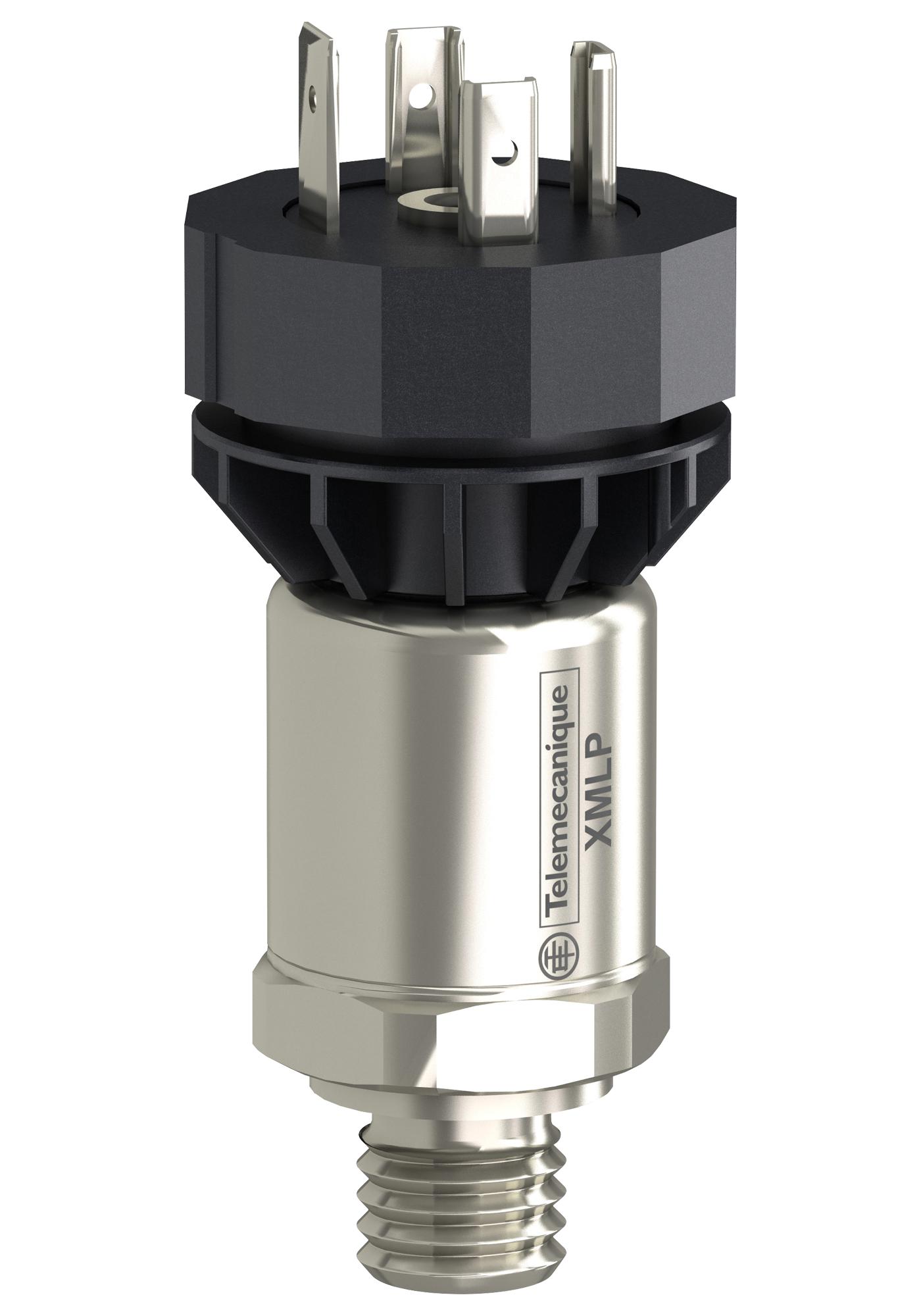

Telemecanique Sensors XMLP030RC23F Pressure Sensor
The XMLPO30RC23F pressure transmitter is a robust electronic sensor that measures up to 30 psi (206.84 kPa) with high accuracy of +/- 0.5%. It features a 4-20 mA analog output, designed for control circuits, with a response time of under 2 milliseconds. Its stainless steel AISI 316L wetted parts ensure durability and corrosion resistance. Suitable for various fluids including water, air, and hydraulic oil, it complies with EN/IEC standards, offers IP65 protection, and operates in temperature ranges from -22°F to 185°F. Its compact dimensions are 1.02 inches in diameter and 2.09 inches in length, and it withstands vibration and shock resistance well suitable for industrial environments.
Telemecanique Sensors XMLP030RC23F Pressure Sensor Specifications:
- Pressure Range: 0...30 psi (0.00...206.84 kPa)
- Maximum Permissible Pressure: 109 psi (751.53 kPa)
- Destruction Pressure: 145 psi (999.74 kPa)
- Material in Contact with Fluid: Ceramic, Fluorocarbon FPM, Stainless steel AISI 316L
- Electrical Connection: EN 175301-803-A 3-pin connector
- Supply Voltage: 12...24 V DC, 7...33 V limits
- Current Consumption: <23mA
- Output Signal: 4...20 mA, 2-wire
- Response Time: <= 2 ms
- Accuracy: +/- 0.5% of measuring range
- Resolution: 0.1% of measuring range
- Operating Temperature: -22°F to 185°F (-30°C to 85°C)
- Protection Class: IP65
- Vibration Resistance: 20 gn (10...2000 Hz)
- Shock Resistance: 100 g for 11 ms
- Dimensions: Diameter 1.02 in (26 mm), Length 2.09 in (53 mm)
- Weight: 0.21 lb (0.095 kg)
- Standards: EN/IEC 61326-2-3, NSF ANSI 61
- Certifications: CULus, RCM, EAC, CE
Buy the Buy Schneider Electric XMLPO30RC23F Pressure Transmitter Part Number XMLP030RC23F Online
Purchase the Schneider Electric XMLPO30RC23F pressure sensor now for accurate, durable, and reliable pressure measurement in water, air, and hydraulic applications. Its robust stainless steel construction, IP65 protection, fast response time, and compliance with international standards ensure it delivers optimal performance in demanding industrial environments. Ideal for control systems requiring precise pressure monitoring, this sensor is easy to install and provides long-term stability. Shop online today to simplify your project needs and ensure dependable operation with this high-quality pressure transmitter.
Order your Schneider Electric XMLPO30RC23F pressure transmitter today and enhance your industrial control systems with this reliable, high-precision sensor.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XMLP030RC23F?
You can click on the BUY or RFQ button to purchase XMLP030RC23F from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XMLP030RC23F?
You can download the XMLP030RC23F datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XMLP030RC23F?
Telemecanique Sensors
