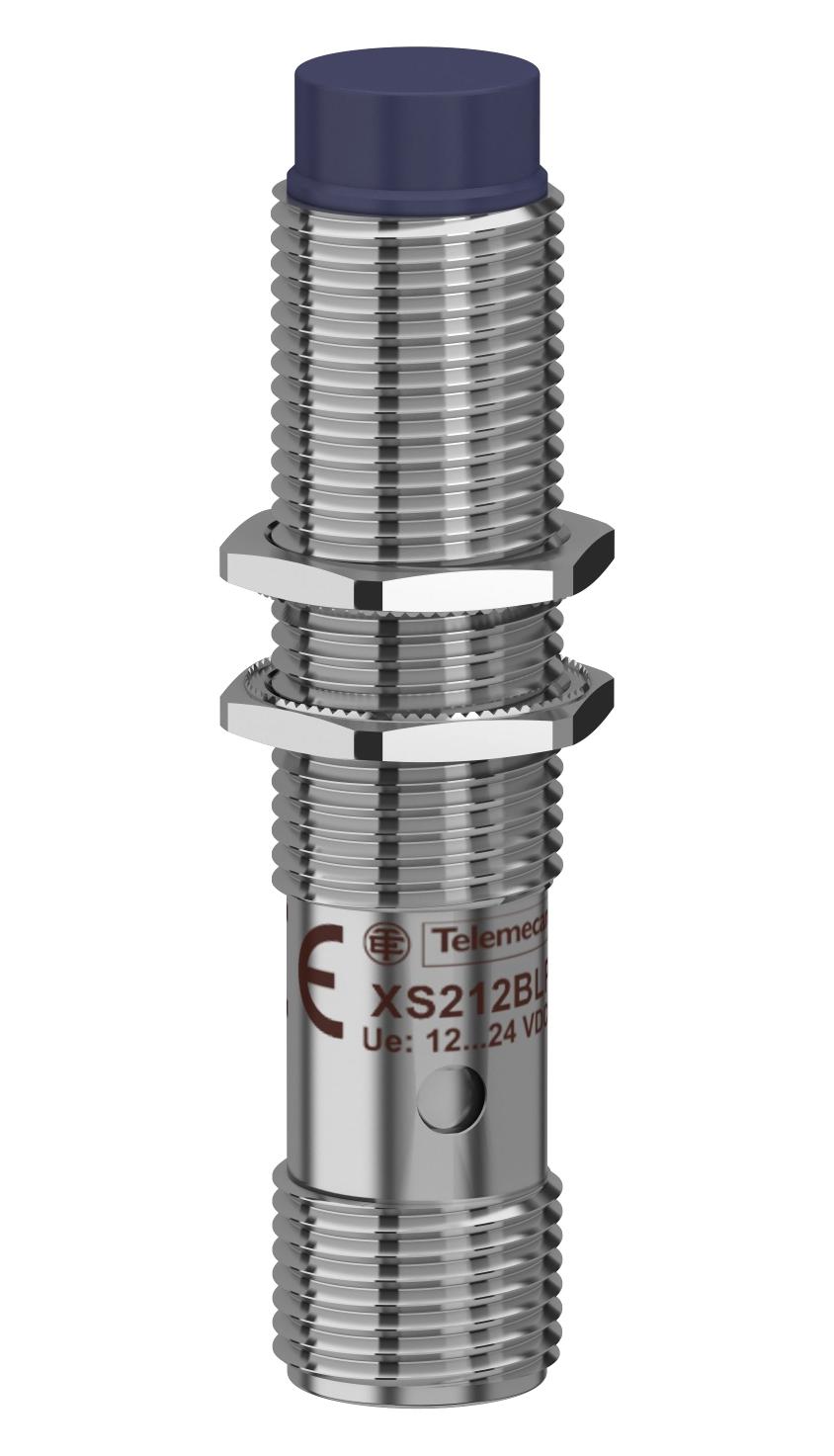

Telemecanique Sensors XS212BLPAM12 Inductive Proximity Sensor
The inductive proximity sensor features a cylindrical M12 body with a 55mm length, manufactured from nickel-plated brass for durability. It detects metallic objects within a 4mm sensing range and provides a discrete PNP NO output signal. Suitable for general purpose applications, it has a rated supply voltage of 12 to 24V DC, IP67 sealing, and operates reliably in temperatures from -25°C to 70°C. The sensor includes a male M12 connector, is shock and vibration-resistant, and compliant with EU RoHS, REACh, and safety standards, ensuring longevity and environmental safety.
Telemecanique Sensors XS212BLPAM12 Inductive Proximity Sensor Specifications:
- Sensor type: Inductive proximity sensor
- Design: Cylindrical M12, 55mm length
- Enclosure material: Nickel plated brass
- Detection face: Frontal
- Sensing distance: 4mm (0.16 inches)
- Output type: PNP normally open (NO)
- Rated supply voltage: 12 to 24V DC
- Voltage protection: Reverse polarity protected
- Output current: <= 200 mA, overload and short-circuit protected
- Environmental rating: IP67
- Operating temperature: -25°C to 70°C (-13°F to 158°F)
- Vibration resistance: 25 gn, 10–55 Hz
- Shock resistance: 50 gn, 11 ms
- Switching frequency: <= 1200 Hz
- Response delay: 0.15 ms
- Power consumption: <=10 mA
- Thread size: M12x1, 29mm length
- Dimensions: Height 12mm, Width 16mm, Length 55mm
- Certification: CE
- Weight: 0.015 kg (0.03 lbs)
Buy the Buy Schneider XS2 M12 Inductive Sensor Part Number XS212BLPAM12 Online
Enhance your automation setup with the Schneider inductive proximity sensor, featuring a durable brass body, IP67 protection, 4mm sensing range, and PNP output. This reliable sensor operates between 12 and 24V DC, making it ideal for detecting metal objects in various industrial environments. Its compact cylindrical design ensures easy mounting, while shock and vibration resistance guarantee longevity. With advanced features like reverse polarity protection and CE certification, purchasing this sensor online ensures high-quality, performance, and seamless integration into your machinery.
Buy Schneider XS212BLPAM12 now and experience unmatched reliability and performance in metal detection for industrial automation.
