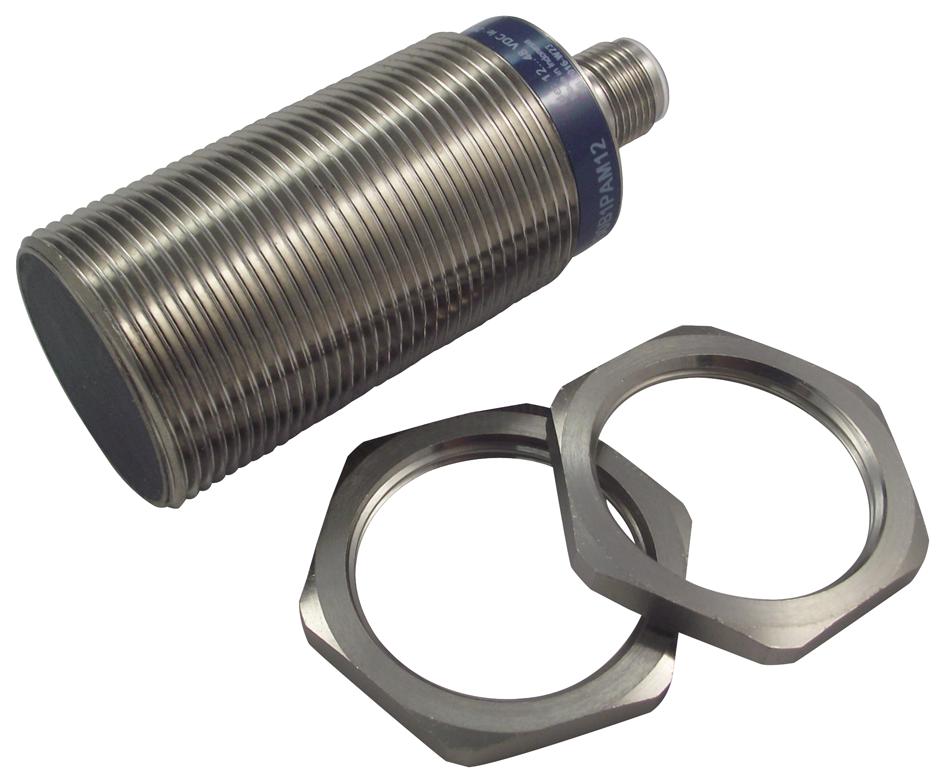

Telemecanique Sensors XS530B1MAU20 Inductive Proximity Sensor
The XS530B1MAU20 from Schneider Electric / Telemecanique is a compact, general-purpose inductive proximity sensor designed for non-contact detection of metal objects. Featuring a cylindrical M30 body and a PPS front face, it is flush mountable and constructed with a nickel-plated brass enclosure. Its sensing range is 10mm within an operating zone of 0 to 8mm, suitable for automation, robotics, and machine monitoring. The sensor offers a 2-wire discrete NO output, rated for currents between 5mA to 200mA (DC) and 5mA to 300mA (AC). Operating voltage spans 24V to 240V AC/DC, with reverse polarity protection, conforming to IP67 and IP69K standards for durability under harsh environments. It functions reliably in temperatures from -25°C to 70°C, making it ideal for industrial automation, materials handling, packaging, and manufacturing settings.
Telemecanique Sensors XS530B1MAU20 Inductive Proximity Sensor Specifications:
- Sensor type: Inductive proximity sensor
- Body material: Nickel-plated brass
- Front face material: PPS
- Dimension: Diameter 30mm, length 73mm
- Thread type: M30 x 1.5
- Detection face: Frontal
- Sensing distance: 10mm
- Operating zone: 0 to 8mm
- Output: Discrete 2-wire, normally open (NO)
- Rated current: 5-200mA DC, 5-300mA AC
- Supply voltage: 24-240V AC/DC
- Reverse polarity protection: Yes
- Environmental rating: IP67, IP69K
- Operating temperature: -25°C to 70°C
- Certifications: CE, UL, CSA
- Connection: 1/2"-20 UNF male connector
Buy the Buy Schneider Electric XS530B1MAU20 Part Number XS530B1MAU20 Online
Order the Schneider Electric XS530B1MAU20 inductive proximity sensor online today to improve your automation system. This durable, metal-detection sensor features a 10mm sensing range and IP67/IP69K protection, ensuring reliable operation in harsh environments. With a compact M30 cylinder design and easy connectivity, it’s perfect for monitoring machine parts, counting metal objects, and enhancing process control. Available with CE, UL, and CSA certifications, purchasing online guarantees fast delivery and access to technical support for seamless integration into your manufacturing or robotics projects.
Buy Schneider Electric XS530B1MAU20 now and experience unmatched reliability and performance in metal detection for industrial automation.
