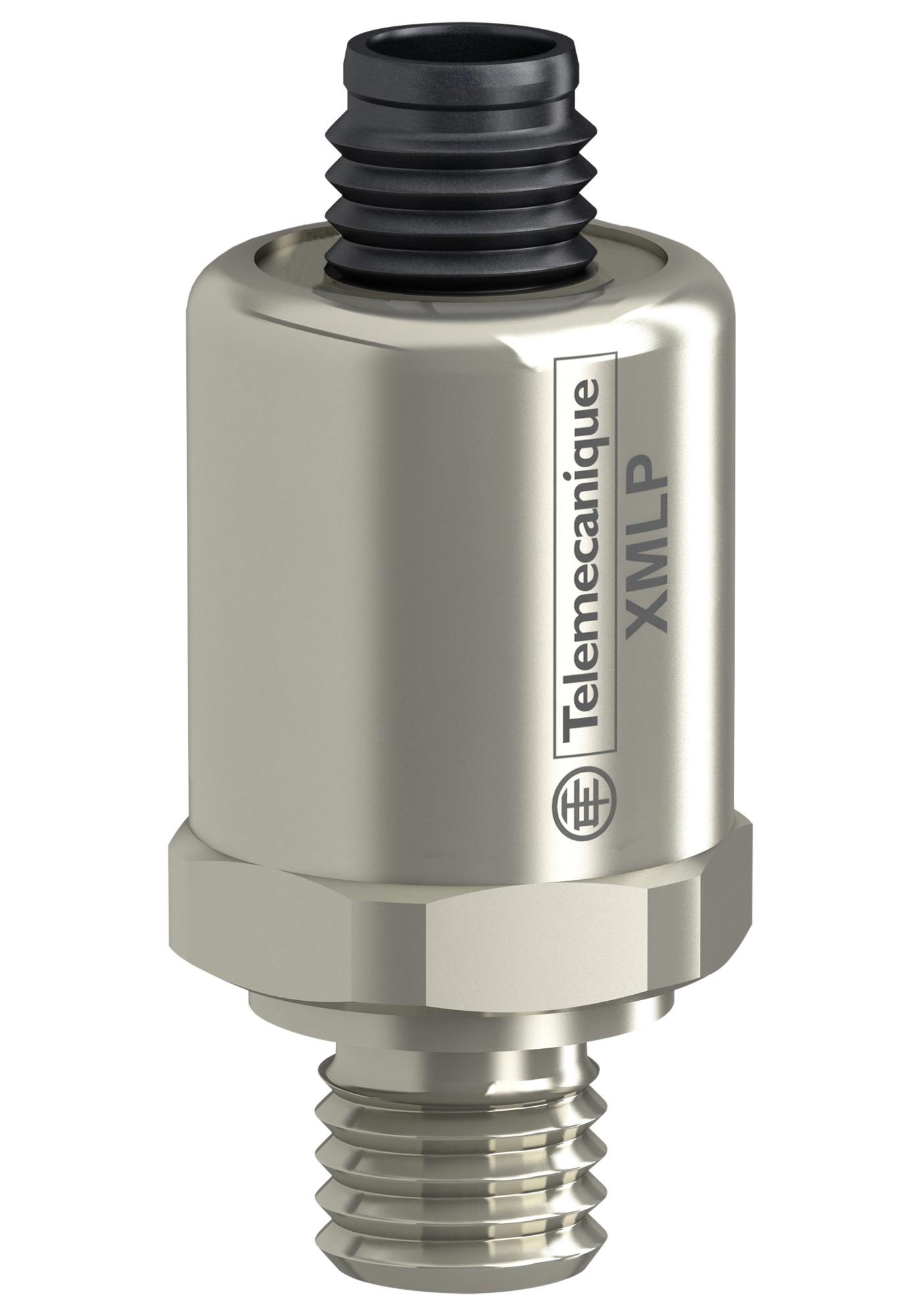

Telemecanique Sensors XMLP030RD23F pressure sensor
The XMLPO30RD23F is a compact, high-accuracy electronic pressure sensor designed for industrial applications. It features a 30 psi control circuit with a 4-20 mA analogue output, making it suitable for water, air, gas, and hydraulic fluids across a broad temperature range. Built with stainless steel, ceramic, and FPM materials, it offers exceptional durability, electromagnetic compatibility, and resistance to vibration and shock. Its IP65/IP67/IP69K protection ensures reliable operation in harsh environments, with a quick response time of less than 2ms for precise pressure measurement and long-term stability.
Telemecanique Sensors XMLP030RD23F pressure sensor Specifications:
- Pressure range: 0 to 30 psi (0.00 to 206.84 kPa)
- Maximum permissible pressure: 109 psi (751.53 kPa)
- Destruction pressure: 145 psi (999.74 kPa)
- Material in contact: FPM, stainless steel AISI 316L, ceramic
- Electrical connection: M12 4-pin male connector
- Rated supply voltage: 12 to 24 V DC, SELV
- Current consumption: <23mA
- Output signal: 4-20 mA, 2-wire analogue
- Response time: ≤ 2ms (10-90%) of full scale
- Measurement accuracy: ± 0.5% of range
- Resolution: 0.1% of range
- Operating temperature: -22 to 185°F (-30 to 85°C)
- Storage temperature: -58 to 212°F (-50 to 100°C)
- Vibration resistance: 20 gn, 10-2000 Hz
- Shock resistance: 100 gn for 11 ms
- Protection: IP65, IP67, IP69K
- Long-term stability: ± 0.25% of range
- Mechanical durability: 10 million cycles
- Dimensions: Diameter 1.02 in (26 mm), Length 1.19 in (30.2 mm)
Buy the Buy Schneider Electric XMLP Pressure Sensor Part Number XMLPO30RD23F Online
Discover the precision and durability of the Schneider Electric XMLP pressure sensor. Designed for industrial environments, it offers high accuracy, rapid response, and long-term stability. With a 30 psi range, IP65/IP67/IP69K protection, and robust stainless steel construction, it ensures reliable performance even in demanding applications. Easily connect via M12 4-pin connector and operate within broad temperature ranges. Upgrade your process measurement system today by purchasing online for fast delivery and trusted quality.
Buy Schneider Electric XMLPO30RD23F pressure transmitter now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XMLP030RD23F?
You can click on the BUY or RFQ button to purchase XMLP030RD23F from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XMLP030RD23F?
You can download the XMLP030RD23F datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XMLP030RD23F?
Telemecanique Sensors
