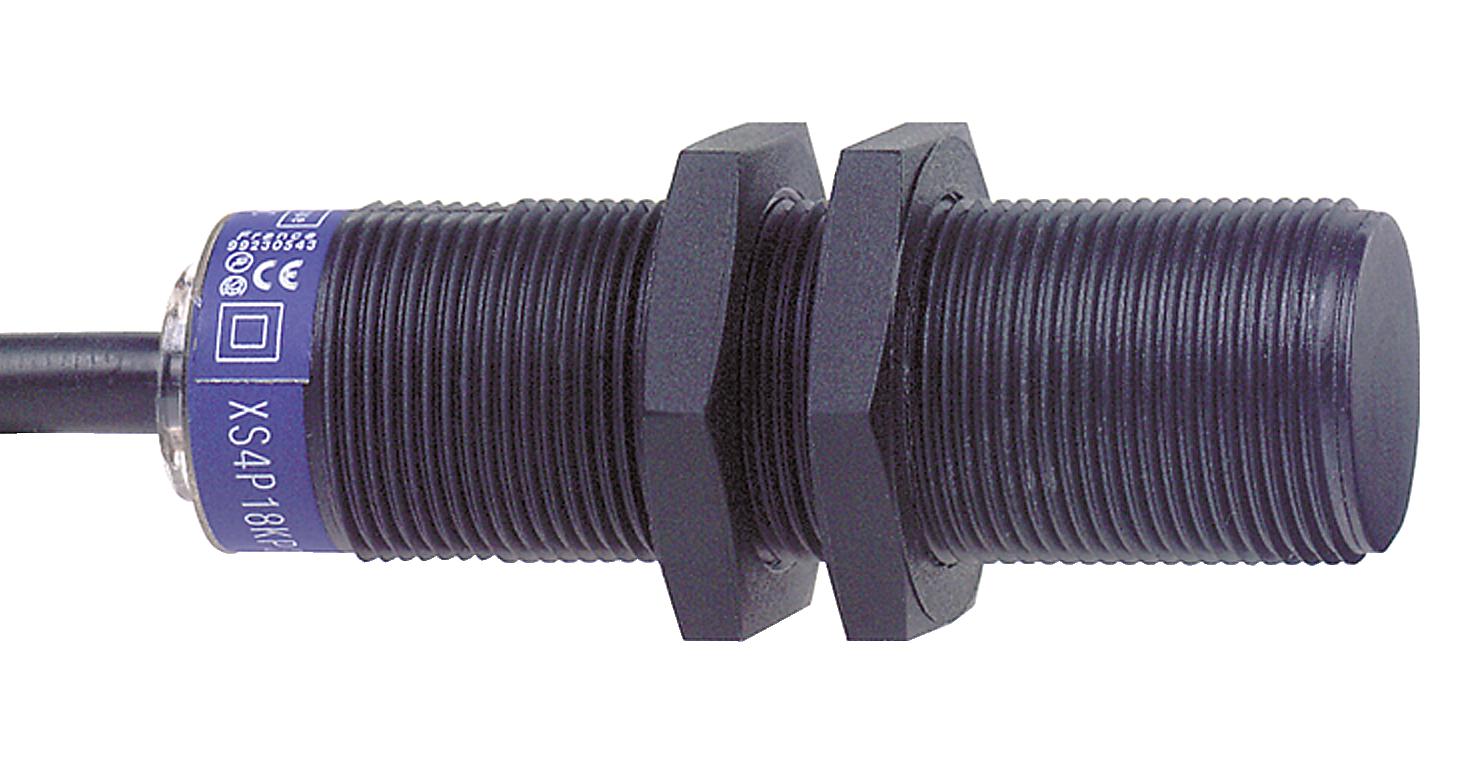

Telemecanique Sensors XS4P18MA230L2 Inductive Proximity Sensor
The XS4P18MA230L2 is a cylindrical inductive proximity sensor designed for general industrial automation. It features a plastic body with a frontal detection face, non-flush mounting capability, and a sensing distance of 8 mm (0.31 in). Rated for 24 to 240 V AC/DC, it operates with a discrete 2-wire output circuit and IP68 protection, ensuring durability in harsh environments. The sensor includes a yellow status LED, operates reliably at a frequency of up to 2000 Hz (DC), and conforms to various safety standards, making it ideal for various automation and manufacturing applications.
Telemecanique Sensors XS4P18MA230L2 Inductive Proximity Sensor Specifications:
- Sensor type: Inductive proximity sensor
- Size: 62 mm cylindrical M18
- Material: Plastic
- Detection face: Frontal
- Sensing distance: 8 mm (0.31 in)
- Electrical connection: Cable, 32.81 ft (10 m)
- Rated voltage: 24...240 V AC/DC, 50/60Hz
- Switching capacity: 5...300 mA AC, 5...200 mA DC
- IP rating: IP68 double insulation
- Enclosure material: PPS
- Body length: 2.44 in (62 mm)
- Threaded length: 2.05 in (52 mm)
- Operating zone: 0...0.25 in (0...6.4 mm)
- Vibration resistance: 25 gn, IEC 60068-2-6
- Shock resistance: 50 gn, IEC 60068-2-27
- Ambient temperature operation: -25...70°C
- Protection: Conforms to IEC 60529
Buy the Schneider XS4P18MA230L2 – Reliable Inductive Sensor for Industrial Applications
Get the Schneider XS4P18MA230L2 inductive proximity sensor online today and improve your automation systems. With IP68 protection and a sensing distance of 8 mm, it offers reliable detection in challenging environments. Suitable for general industrial use, it features a durable plastic body, frontal detection face, and a 24 to 240 V AC/DC power supply. The sensor's high switching frequency of up to 2000 Hz and compliance with safety standards make it an excellent choice for manufacturing, automation, and equipment control applications. Order now to ensure dependable, efficient performance in your operations.
Order your Schneider Series XS4P18MA230L2 today and enhance your automation projects with this durable, high-performance inductive proximity sensor.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XS4P18MA230L2?
You can click on the BUY or RFQ button to purchase XS4P18MA230L2 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XS4P18MA230L2?
You can download the XS4P18MA230L2 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XS4P18MA230L2?
Telemecanique Sensors
