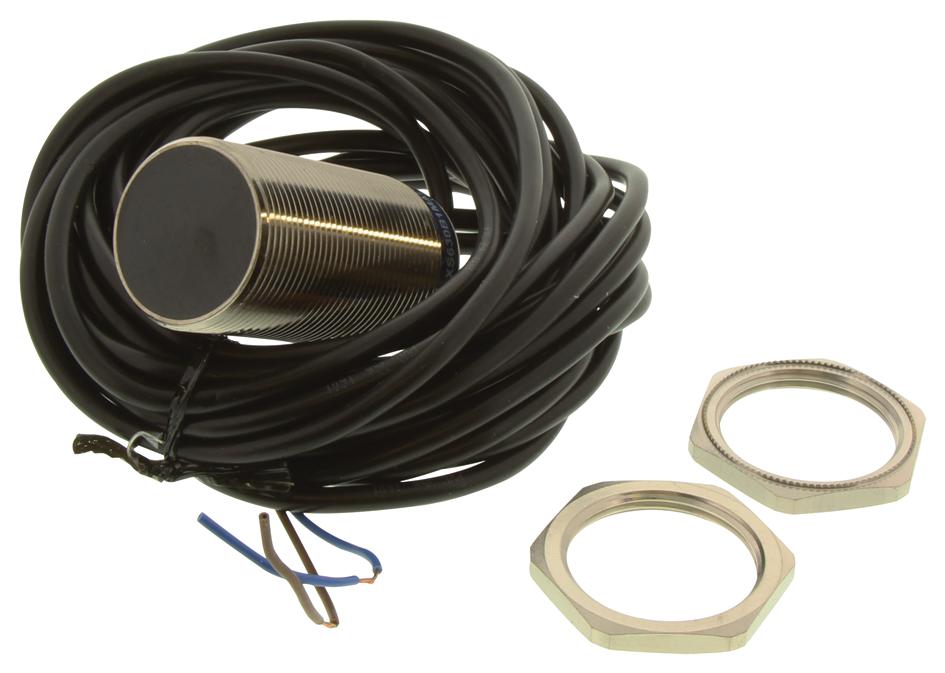

Telemecanique Sensors XS630B1MAL5 Inductive Proximity Sensor
The XS630B1MAL5 is a flush-mountable general-purpose inductive proximity sensor featuring a discrete output signal with an AC/DC circuit and Normally Open (NO) output function. It has a cable electrical connection and a frontal detection face. The sensor's body is made of metal with a PPS front and a nickel-plated brass enclosure. It includes a yellow LED indicator for output status, employs a two-wire wiring technique, and has an IP68/IP69K protection rating. Suitable for sensing and instrumentation applications.
Telemecanique Sensors XS630B1MAL5 Inductive Proximity Sensor Specifications:
- Sensor type: Inductive proximity sensor
- Sensor design: Cylindrical M30
- Size: 62mm
- Detection face: Frontal
- Nominal sensing distance: 0.59 in (15mm)
- Operating zone: 0.00...0.47 in (0...12 mm)
- Electrical connection: Cable 16.40 ft (5 m)
- Rated supply voltage: 24...240 V AC/DC 50/60 Hz
- Switching capacity: 5...200 mA DC, 5...300 mA AC
- Output signal: Discrete, Normally Open (NO)
- Enclosure material: Nickel Plated Brass
- Front material: PPS
- Protection rating: IP68, IP69K
- Front face: Frontal
- LED indicator: Output status (yellow)
- Thread type: M30 x 1.5
- Operating temperature: -25 to 70°C (-13 to 158°F)
- Vibration resistance: 25 gn, 10-55 Hz
- Shock resistance: 50 gn, 11 ms
- Environmental certifications: UL, CSA
- Warranty: 18 months
Buy the Schneider Series XS Series Inductive Proximity Sensor XS630B1MAL5
Purchase the Schneider Series XS630B1MAL5 inductive proximity sensor online today to benefit from its robust metal construction, IP68/IP69K protection, 15mm sensing range, and versatile AC/DC supply voltage. This sensor is ideal for automation, sensing, and instrumentation tasks, offering reliable, fast response with a 5-meter cable connection. Its compact M30 design and front-facing detection make installation easy in various industrial environments. Get quality sensing technology now and improve your project’s efficiency and reliability with just a few clicks.
Order your Schneider Series XS630B1MAL5 inductive proximity sensor today and enhance your sensing applications with reliable, rugged performance.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XS630B1MAL5?
You can click on the BUY or RFQ button to purchase XS630B1MAL5 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XS630B1MAL5?
You can download the XS630B1MAL5 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XS630B1MAL5?
Telemecanique Sensors
