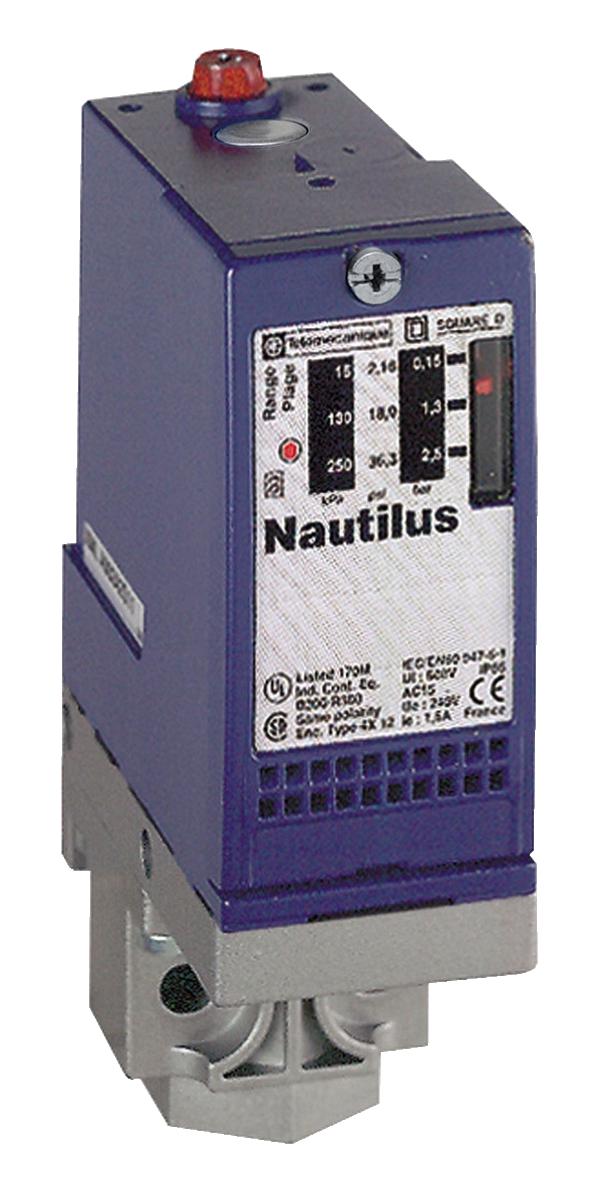

Telemecanique Sensors XMLA160D2S13 Hydraulic Pressure Sensor
The XMLA160D2S13 is an electromechanical pressure sensor designed for hydraulic applications, capable of measuring up to 160 bar (2320.60 psi). It features a fixed differential scale, control circuit operation, and a piston actuator with brass contact materials. The device includes a 1/4" NPTF fluid connection and screw-clamp terminals suitable for AWG 14 to 20 wiring. It operates at a maximum of 60 cycles per minute, with a mechanical durability of 6 million cycles, IP66 protection, and certifications including UL, CSA, and CE. The sensor's compact size and robust construction make it ideal for industrial hydraulic systems requiring reliable pressure detection and switching. It complies with safety and environmental standards such as RoHS, Reach, and is a Green Premium product, with an 18-month warranty.
Telemecanique Sensors XMLA160D2S13 Hydraulic Pressure Sensor Specifications:
- Maximum pressure: 160 bar (2320.60 psi)
- Controlled fluid: Hydraulic oil (0...160 °C)
- Fluid connection: 1/4" - 18 NPTF (female)
- Electrical connection: Screw-clamps, 1 x 0.5...2 x 2.5 mm², AWG 14-20
- Cable entry: 0.28...0.51 in (7...13 mm) cable gland
- Contacts: 1c/0, Silver contacts, Snap action, Max resistance 25 MOhm
- Mechanical durability: 6 million cycles
- IP protection: IP66
- Vibration resistance: 4 gn, IEC 60068-2-6
- Shock resistance: 50 gn, IEC 60068-2-27
- Operating temperature: -25°C to +70°C
- Protection class: IEC 1140, IEC 536, NF C 20-030
- Certifications: UL, CSA, CE, Lloyds Register, EAC, BV
- Dimensions: Height 4.45 in, Depth 2.95 in, Width 1.38 in
- Weight: 1.65 lbs (0.75 kg)
Buy the Schneider XMLA160D2S13 – Reliable Hydraulic Pressure Switch for Industrial Applications
Order the Schneider XMLA160D2S13 hydraulic pressure sensor online today to ensure immediate reliable pressure detection in your industrial hydraulic systems. Designed for durability, it features a robust IP66 enclosure, high cycle durability of 6 million, and certifications including UL and CSA. Its compact size and precise control circuit operation make it ideal for demanding environments, providing accurate pressure switching at 160 bar. Upgrading your system with this certified sensor guarantees consistent performance, safety, and compliance with environmental standards like RoHS and Reach. Shop now for fast delivery and technical support.
Buy Schneider XMLA160D2S13 now and experience unmatched reliability and performance in hydraulic pressure detection with this durable electromechanical sensor.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XMLA160D2S13?
You can click on the BUY or RFQ button to purchase XMLA160D2S13 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XMLA160D2S13?
You can download the XMLA160D2S13 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XMLA160D2S13?
Telemecanique Sensors
