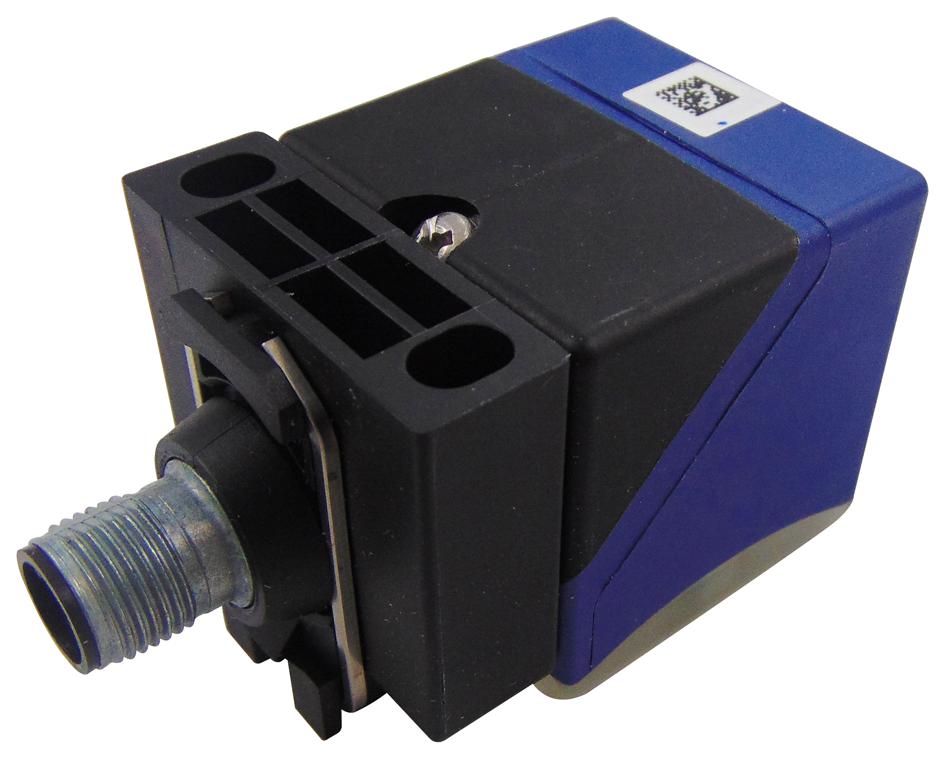

Telemecanique Sensors XS8C2A4PCM12 Inductive Proximity Sensor
The XS8C2A4PCM12 is a non-flush mountable general-purpose inductive proximity sensor featuring a discrete output signal with DC circuit PNP-NO and NC functions. It has a 4-pin M12 male connector for electrical connection and a 5-position turret head for detection. The sensor body is made of plastic with a PBT front enclosure. It includes a yellow LED indicator for output status and a green LED for power-on indication. The sensor utilizes a 3-wire wiring technique and offers protection ratings of IP65, IP67, and IP69K. Suitable for sensing and instrumentation as well as consumer electronics applications.
Telemecanique Sensors XS8C2A4PCM12 Inductive Proximity Sensor Specifications:
- Sensor type: Inductive proximity sensor
- Body material: Plastic with PBT enclosure
- Size: 40 x 40 x 70 mm (height x width x length)
- Detection face: 5-position turret head
- Nominal sensing distance: 40 mm
- Output signal: Discrete PNP (NO+NC)
- Wiring: 3-wire with M12 connector
- Electrical supply: 12 to 48 V DC with reverse polarity protection
- Switching capacity: <= 200 mA with overload and short-circuit protection
- Protection degree: IP69K, IP67, IP65
- Operating zone: 0 to 32 mm
- Repeat accuracy: <= 3% of sensing distance
- Vibration resistance: 25 gn from 10-55 Hz
- Shock resistance: 50 gn for 11 ms
- Ambient temperature for operation: -25 to 70°C
- Certification: UL, CSA, TUV, CCC
- Weight: 0.149 kg
Buy the Schneider Series XS Series Inductive Proximity Sensor: XS8C2A4PCM12
Enhance your automation projects with the Schneider XS8C2A4PCM12 inductive proximity sensor. Featuring a robust PBT enclosure, 40 mm sensing distance, and IP69K protection, this sensor offers reliable detection in harsh environments. Equipped with a PNP output and M12 connector, it’s ideal for industrial sensing, instrumentation, and consumer electronics. Easy to install and maintain, it ensures excellent repeatability and stability. Purchase online today to secure dependable sensing technology for your automation needs.
Order your Schneider Series XS8C2A4PCM12 inductive proximity sensor today and enhance your automation and sensing solutions with reliable performance.
