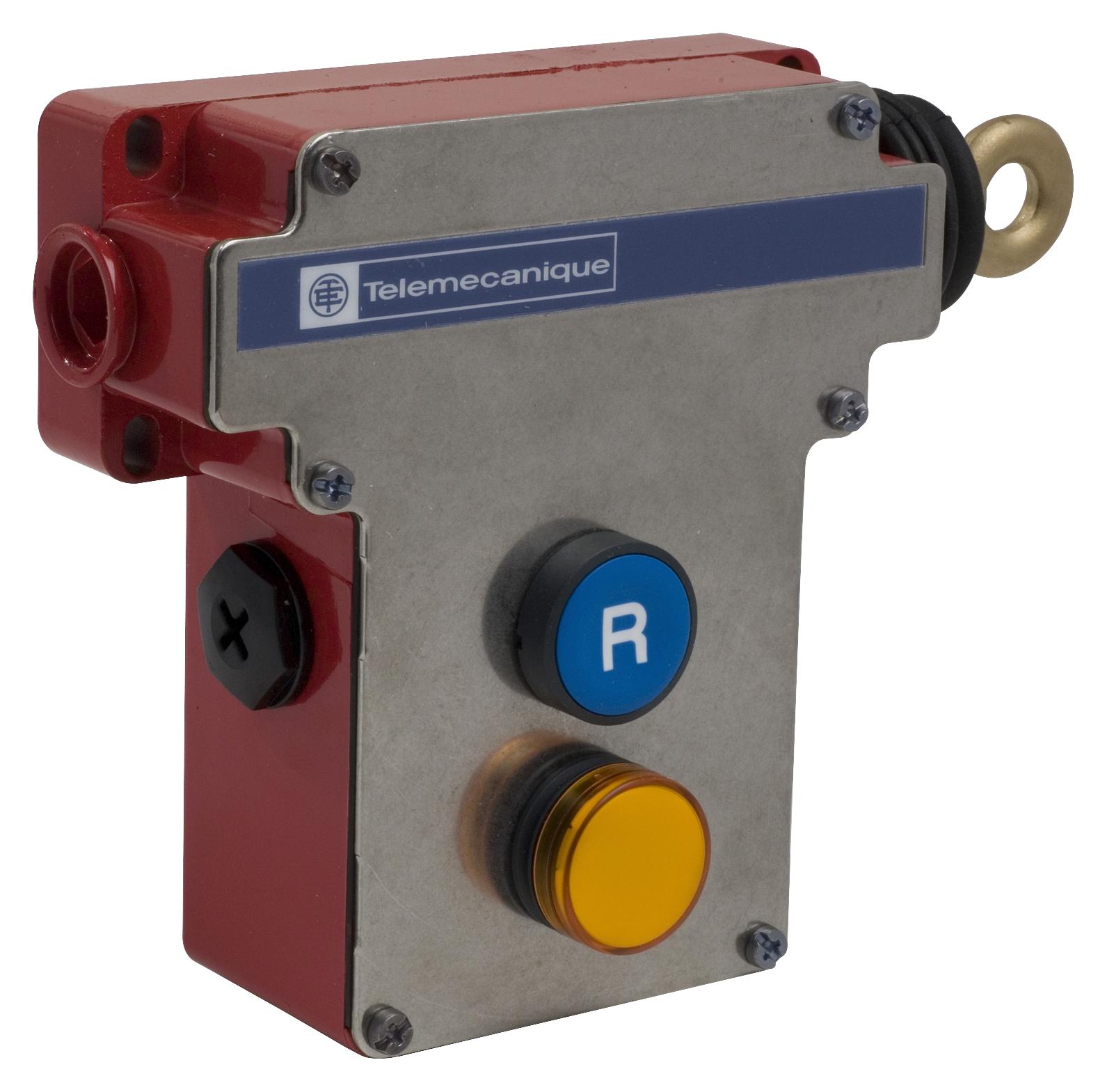

Telemecanique Sensors XY2CE1A196 Cable Pull Switch
The XY2CE1A196 is a high-reliability cable pull switch designed for emergency stop applications in industrial environments. It features a robust Zamak body, stainless steel cover, and IP66 protection, ensuring durability against dust and water ingress. With a maximum trigger cable length of 70 meters, it includes a double contact system with one NC and one NO contact rated at 5A. It complies with multiple safety standards including EN/IEC 60947-5-5 and UL 508, offering options for category 4 safety performance when properly integrated with monitoring systems, making it suitable for safety-rated bus systems.
Telemecanique Sensors XY2CE1A196 Cable Pull Switch Specifications:
- Housing material: Zamak
- Cover material: Stainless steel
- Protection level: IP66
- Contact type: 1NC + 1NO
- Contact rating: 5A
- Maximum trigger cable length: 70 m (229.66 ft)
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Mechanical durability: 60000 cycles
- Operating temperature: -25°C to +70°C
- Vibration resistance: 10 gn, 10-300 Hz
- Shock resistance: 50 gn, 11 ms
- Weight: 1.45 kg (3.20 lbs)
- Standards: EN/IEC 60947-5-5, UL 508, CSA, Machinery 2006/42/EC
Buy the Schneider Series XY2 Cable Pull Switch: XY2CE1A196
Order the Schneider XY2CE1A196 cable pull switch online today to ensure safety in your industrial applications. This rugged device offers IP66 protection, robust Zamak housing, stainless steel cover, and a contact rating of 5A. Its reliable operation with long cable reach up to 70 meters makes it ideal for emergency stop and safety applications. With compliance to EN/IEC standards and a durability of 60000 cycles, this switch guarantees dependable performance in harsh environments. Secure your safety setup now with quick online purchase.
Buy Schneider XY2CE1A196 now and experience unmatched reliability and performance in emergency stop safety systems.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XY2CE1A196?
You can click on the BUY or RFQ button to purchase XY2CE1A196 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XY2CE1A196?
You can download the XY2CE1A196 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XY2CE1A196?
Telemecanique Sensors
