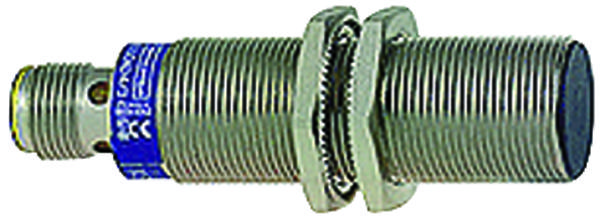

Telemecanique Sensors XS518B1PAM12 Inductive proximity sensor
The XS518B1PAM12 is a high-performance inductive proximity sensor featuring a cylindrical M18 housing with nickel-plated brass enclosure. Designed for non-contact detection of metal objects up to 50mm, it offers PNP normally open output with a yellow LED indicator for status. It supports flush mounting for easy installation and is suitable for industrial environments, meeting IP67 and IP69K ratings per DIN 40050 and IEC 60529 standards. Operating from -25°C to 70°C, it ensures reliable detection in harsh conditions, making it ideal for automation and manufacturing systems.
Telemecanique Sensors XS518B1PAM12 Inductive proximity sensor Specifications:
- Sensor type: Inductive proximity sensor
- Housing: Cylindrical M18 with nickel-plated brass enclosure
- Detection distance: 50mm (0.20 in)
- Output signal: PNP normally open
- Wiring: 3-wire with M12 connector
- Supply voltage: 12...24 V DC with reverse polarity protection
- Max switching current: <= 200 mA DC
- Protection ratings: IP67 IEC 60529, IP69K DIN 40050
- Operating temperature: -25°C to 70°C
- Material: Metal (enclosure), PPS front face
- Front material: PPS
- LED indicator: Yellow for output status
- Thread size: M18 x 1
- Operating zone: 0 to 4 mm (0.00-0.16 in)
- Response times: Max delay response 0.15 ms, max delay recovery 0.35 ms
- Vibration resistance: 25 gn, 10-55 Hz
- Shock resistance: 50 gn, 11 ms
Buy the Schneider Series Inductive Proximity Sensor XS518B1PAM12
Enhance your manufacturing processes with the inductive proximity sensor designed for precision metal detection up to 50mm. Featuring a rugged M18 housing, PNP N/O output, and IP69K/IP67 protection ratings, this sensor is ideal for demanding industrial environments. Its compact, flush-mountable design simplifies installation, while the yellow LED indicator provides clear status updates. Operating from -25°C to 70°C, it offers reliable performance and durability. Purchase online today and ensure accurate, contactless detection for your automation system.
Order your Schneider Series XS518B1PAM12 today and enhance your industrial automation with this reliable, high-detection proximity sensor with flush mount design.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XS518B1PAM12?
You can click on the BUY or RFQ button to purchase XS518B1PAM12 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XS518B1PAM12?
You can download the XS518B1PAM12 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XS518B1PAM12?
Telemecanique Sensors
