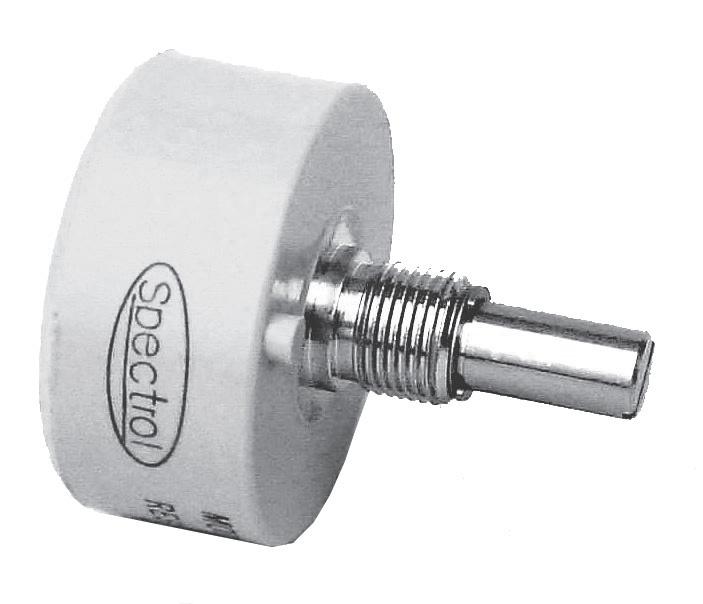

Vishay 13220102 Single Turn Wirewound Potentiometer
The Vishay Spectrol 132-2-0-102 is a versatile, industrial-grade potentiometer designed for a wide range of applications requiring precise resistance adjustment. This single-turn wirewound potentiometer features a robust bushing mount and offers continuous rotation with mechanical stops, providing flexibility in system design. Its wide electrical angle of 352° ± 2° ensures accurate and repeatable positioning. Constructed with durable materials like glass-filled thermoplastic housing and stainless steel shaft, the 132-2-0-102 is built to withstand demanding industrial environments. It's ideal for applications such as industrial equipment, automation systems, and process control where reliability and precision are paramount.
Vishay 13220102 Single Turn Wirewound Potentiometer Specifications:
- Sensor type: ROTATIONAL, single turn wirewound
- Output type: Output byturrets
- Market appliance: Industrial
- Dimensions: 15/16" (33.3 mm)
- Total Resistance Tolerance: 5 to 20 k, ± 3 % / ± 5 %
- Linearity (independent): ± 1.0 % (5 to 20)
- Noise: 100ENR
- Power Rating: 2.75 W at 40 °C
- Electrical Angle: 352° ± 2°
- Insulation Resistance: 1000 M minimum at 500 VDC
- Dielectric Strength: 1000 VRMS, 60 Hz
- Absolute Minimum Resistance: 0.5 W or 1.0 % of total resistance
- Minimum Voltage: 0.5 % maximum
- Temperature Coefficient of Resistance: Refer to standard resistance element data
- Housing: Molded glass filled thermoplastic
- Shaft: Stainless steel, non-magnetic
- Terminals: Brass, plated for solderability
- Mount Hardware: Steel, nickel plated
- Vibration: 15 g thru 2000 Hz
- Shock: 50 g
- Salt Spray: 48 h
- Rotational Life: 500 000 shaft revolutions
- Operating Temperature Range: - 55 °C to + 125 °C
- Rotation: 360° (continuous) or 340° ± 5° (stops)
- Bearing Type: Sleeve
- Starting Torque: 1.0 oz.- in (72 g- cm)
- Running Torque: 0.7 oz.- in (50.40 g- cm)
- Shaft Runout (TIR): 0.002" (0.05 mm)
- Pilot Dia. Runout (TIR): 0.003" (0.08 mm)
- Lateral Runout (TIR): 0.005" (0.13 mm)
- Shaft End Play: 0.008" (0.20 mm)
- Shaft Radial Play: 0.003" (0.08 mm)
- Weight: 1.0 oz. maximum (28.35g)
Buy the 132-2-0-102 VISHAY Single Turn Wirewound Potentiometer | myMectronic
Purchase the Vishay 132-2-0-102 potentiometer securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Vishay 13220102?
You can click on the BUY or RFQ button to purchase 13220102 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 13220102?
You can download the 13220102 datasheet or visit the Vishay website for support.
Who is the manufacturer of 13220102?
Vishay
