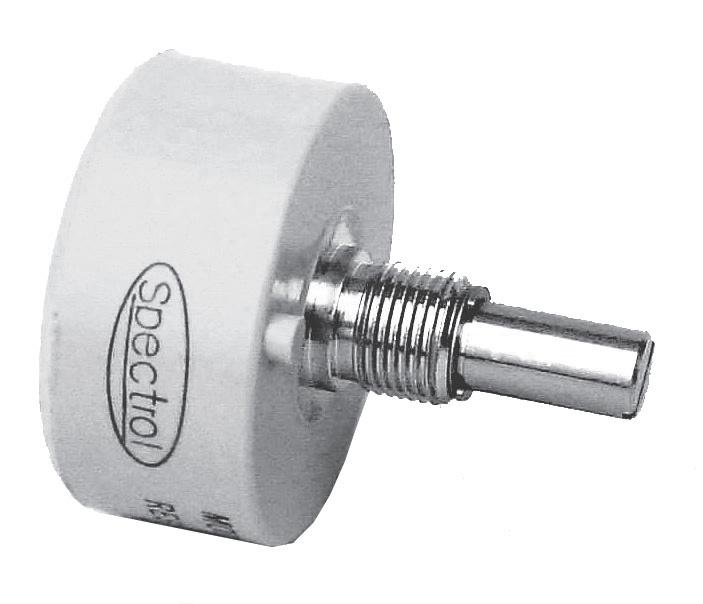

Vishay 13220103 Single Turn Wirewound Potentiometer
The Vishay Spectrol 132-2-0-103 is a robust, single-turn wirewound potentiometer designed for industrial applications. This potentiometer offers a bushing mount, continuous rotation, and a wide electrical angle, making it suitable for diverse control and adjustment needs. It features a center tap option for added flexibility and is constructed with durable materials like glass-filled thermoplastic housing and stainless steel shaft. The potentiometer's linearity and resistance tolerance are carefully controlled to ensure accurate and reliable performance in demanding environments. It is ideal for applications requiring precise resistance adjustments in industrial machinery, automation systems, and other critical control circuits.
Vishay 13220103 Single Turn Wirewound Potentiometer Specifications:
- Sensor type: ROTATIONAL, single turn wirewound
- Output type: Output byturrets
- Market appliance: Industrial
- Dimensions: 15/16"(33.3 mm)
- Total Resistance Tolerance: 50 and Above: ± 3 % ± 5 %; Below 50: to 35 k ± 1 % ± 3%
- Linearity (independent): 5to 20: ± 1.0 %; 20to 200: ± 1.0 %; 200and above: ± 0.5%
- Noise: 100ENR
- Power Rating: 40 °C ambient: 2.75 W derated to zero at 125 °C
- Electrical Angle: Continuous Rotation: 352° ± 2°; Stops: 340° ± 5°
- Insulation Resistance: 1000 Mminimum at 500 VDC
- Dielectric Strength: 1000 VRMS,60 Hz
- Absolute Minimum Resistance: 1.0 % of total resistance or 0.5 W whichever is greater
- Minimum Voltage: 0.5 % maximum
- Temperature Coefficient of Resistance: Refer to standard resistance element data
- Housing: Molded glass filled thermoplastic
- Rear Lid: Glass filled thermoset plastic
- Shaft: Stainless steel, non-magnetic
- Terminals: Brass, plated for solderability, Non-passivated
- Mount Hardware: Lockwasher Internal Tooth: Steel, nickel plated; Panel Nut: Brass, nickel plated
- Vibration: 15_g_thru 2000 Hz
- Shock: 50_g_
- Salt Spray: 48 h
- Rotational Life: 500 000 Shaft Revolutions
- Operating Temperature Range: - 55 °C to + 125 °C
- Rotation: 360° (continuous) or 340° ± 5° (stops)
- Bearing Type: Sleeve
- Starting Torque: 1.0 oz. - in(72g- cm)
- Running Torque: 0.7 oz.- in(50.40g- cm)
- Shaft Runout (TIR): 0.002" (0.05 mm)
- Pilot Dia. Runout (TIR): 0.003" (0.08 mm)
- Lateral Runout (TIR): 0.005" (0.13 mm)
- Shaft End Play: 0.008" (0.20 mm)
- Shaft Radial Play: 0.003"(0.08 mm)
- Weight: 1.0 oz. maximum(28.35g)
- Stop Strength: 8.0 in - lbs(9.21 kg- cm) (stops version only)
Buy the 132-2-0-103 VISHAY Single Turn Wirewound Potentiometer | myMectronic
Purchase the Vishay 132-2-0-103 potentiometer securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Vishay 13220103?
You can click on the BUY or RFQ button to purchase 13220103 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 13220103?
You can download the 13220103 datasheet or visit the Vishay website for support.
Who is the manufacturer of 13220103?
Vishay
