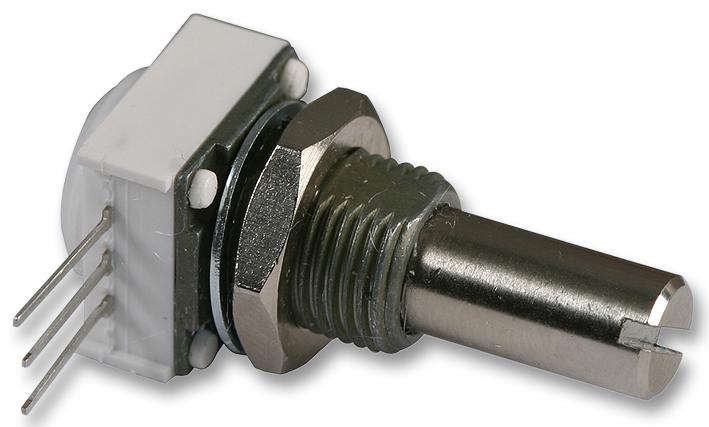

Vishay 14910A0BHSX10101KA Conductive Plastic Potentiometer
Vishay Spectrol 1/2 inch conductive plastic and cermet potentiometers provide precise resistance control with robust construction and high rotational life of 50,000 cycles. Suitable for industrial automation and control applications, these potentiometers feature RoHS compliance, low temperature coefficient, and multiple mounting options including rotary switches and solder lugs. They offer a resistance range from 100 ohms to 2 megaohms, with excellent linearity, reliability under environmental stresses, and high dielectric withstand voltage, making them ideal for demanding electronic control systems.
Vishay 14910A0BHSX10101KA Conductive Plastic Potentiometer Specifications:
- Resistance Range: 100Ω to 2MΩ (linear), 500Ω to 500kΩ (non-linear)
- Tolerance: ±10% (linear), ±20% (non-linear)
- Linearity: + 5% (typical)
- Power Rating: 0W at 70°C (linear), 1W at 70°C (non-linear)
- Effective Rotation: 270° + 10° without switch, 240° + 10° with switch
- Mechanical Travel: 300° + 5°
- Operating Temperature: -40°C to +120°C
- Storage Temperature: -55°C to +120°C
- Sealing: IP64
- Operating Torque: 0.2 to 3.0 oz-in (single), 0.3 to 4.5 oz-in (dual/triple)
- Maximum Continuous Voltage: 350 Vac across end terminals
- Dielectric Withstanding Voltage: 750 Vac at sea level
- Rotational Life: 50,000 cycles
- Sealed environmental protection
- Terminals: Gold-plated switch elements, pure Sn electrical elements
- Bushing: Multiple mounting options, anti-rotation locating pegs included
Buy the VISHAY Series Conductive Plastic Potentiometers: 14910A0BHSX10101KA
Discover Vishay 14910A0BHSX10101KA potentiometers, engineered for high reliability and consistent performance. These 1/2 inch conductive plastic and cermet potentiometers feature robust construction, RoHS compliance, and a resistance range from 100 ohms to 2 megaohms. Designed for applications requiring accuracy and durability, they offer excellent linearity, environmental sealing, and high dielectric withstand voltage. Suitable for industrial automation, control panels, and electronic instrumentation, order online today for fast delivery and exceptional quality.
Get Vishay 14910A0BHSX10101KA potentiometers today—designed for precision control, durability, and easy installation in industrial electronics.
Frequently Asked Questions
Where can I buy Vishay 14910A0BHSX10101KA?
You can click on the BUY or RFQ button to purchase 14910A0BHSX10101KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910A0BHSX10101KA?
You can download the 14910A0BHSX10101KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910A0BHSX10101KA?
Vishay
