Vishay 14910A0BHSX10503KA Conductive Plastic and Cermet Potentiometers
The Vishay Spectrol 1/2-inch conductive plastic and cermet potentiometers offer robust construction, high rotational life of 50,000 cycles, and RoHS compliance. These potentiometers feature conductive plastic or cermet elements, with low temperature coefficients and precise resistance ranges from 100 Ohms up to 2 Megaohms. Suitable for various electronic applications, they incorporate multi-section support plates, rotary switches, solder lugs, and anti-rotation locators, ensuring reliable and durable performance in diverse industrial settings. Their environmental and mechanical specifications guarantee longevity, making them ideal for equipment requiring accurate, stable control components.
Vishay 14910A0BHSX10503KA Conductive Plastic and Cermet Potentiometers Specifications:
- Resistance Range: 100 Ohms to 2 Megaohms (linear), 500 Ohms to 1 Megaohm (non-linear)
- Tolerance: ±10% (linear), ±20% (non-linear, on request)
- Linearity: Typically ±5%
- Power Rating: 0.5 Watts at 70°C, 1 Watt at 70°C for non-linear elements
- Rotational Travel: 270° ±10° without rotary switch, 240° ±10° with rotary switch
- Effective Rotation: 300° ±5°
- Operating Voltage: 350 VAC maximum across end terminals
- Dielectric Withstanding Voltage: 750 VAC at sea level
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -55°C to +150°C
- Mechanical Life: 50,000 cycles
- Sealing: IP64
- Mounting: Panel-mounted with anti-rotation pegs, support plates
- Environmental Resistance: Loss of accuracy within specified temperature cycling and load life
- Mechanical Torque: 0.2 to 4.5 oz-in depending on section
- Bushing Options: Various sizes like 1/4”, 3/8”, 1/2” with matching mounting features
- Electrical Elements: Pure Sn terminals, gold-plated switch elements

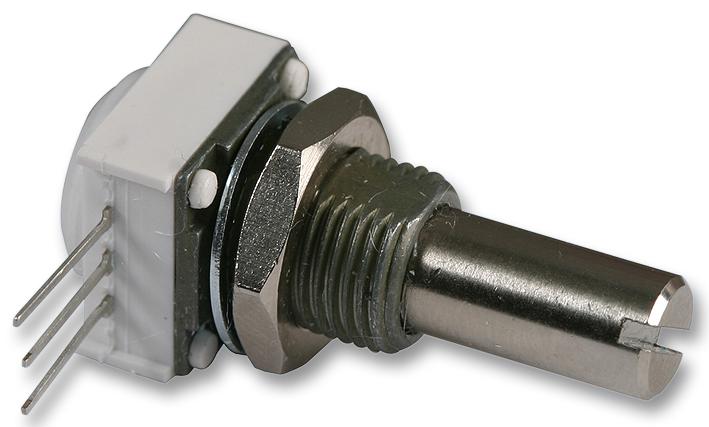

Buy the Buy Vishay Spectrol Conductive Plastic and Cermet Potentiometers Part Number 14910A0BHSX10503KA Online
Purchase the Vishay Spectrol 14910A0BHSX10503KA potentiometer online today. Known for robustness and high rotational life, this precision control component is ideal for industrial electronics, audio equipment, and instrumentation. Featuring low temperature coefficient, IP64 sealing, and a wide temperature range, it ensures long-lasting, stable performance under demanding conditions. With easy panel mount and diverse support plate options, buying this high-quality potentiometer online guarantees quick delivery, competitive pricing, and the reliability required for critical electronic applications.
Order your Vishay Series14910A0BHSX10503KA high-durability potentiometer today and enhance your electronic projects with reliable, precision control components.
Frequently Asked Questions
Where can I buy Vishay 14910A0BHSX10503KA?
You can click on the BUY or RFQ button to purchase 14910A0BHSX10503KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 14910A0BHSX10503KA?
You can download the 14910A0BHSX10503KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 14910A0BHSX10503KA?
Vishay
