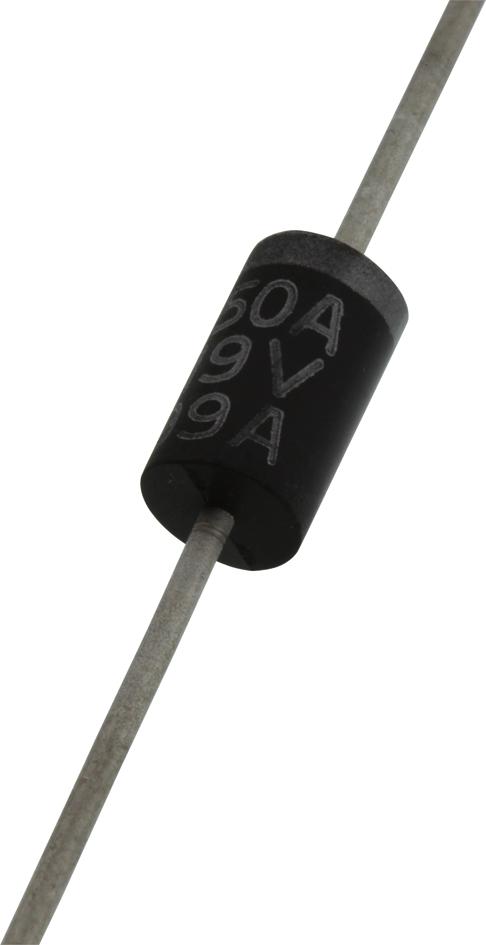

Vishay 15KE150AE354 Transient Voltage Suppressor
The 1.5KE series Transient Voltage Suppressor TVS diode provides a peak pulse power capacity of 1500W with a 10/1000µs waveform and a 0.01% duty cycle. Designed for protecting sensitive electronic components, it safeguards against voltage transients caused by inductive load switching and lighting surges on ICs, MOSFETs, and sensor signal lines. The diode features a glass-passivated chip junction and is available in both unidirectional and bidirectional configurations. It offers excellent clamping capabilities, a very fast response time, and low incremental surge resistance, operating reliably within a temperature range of -55°C to 175°C. Suitable for applications in automotive, computers and peripherals, communications, consumer electronics, lighting, sensing, and industrial systems.
Vishay 15KE150AE354 Transient Voltage Suppressor Specifications:
- Peak pulse power: 1500 W
- Waveform: 10/1000 µs
- Repetitive rate: 0.01%
- Maximum operating temperature: -55°C to 175°C
- Glass passivated chip junction
- Configurations: Unidirectional and bidirectional
- Case style: Molded epoxy
- Base P/N-E3 - RoHS compliant, commercial grade
- Base P/NHES - RoHS compliant, AEC-Q101 qualified
- Solder dip temperature: 275°C max. for 10 s
Buy the Vishay 15KE150AE354 – Reliable Transient Voltage Suppressor for Industrial Applications
Protect your sensitive electronic components with the high-power Vishay 15KE150AE354 Transient Voltage Suppressor diode. Offering a peak pulse power of 1500W with a 10/1000µs waveform, this device effectively absorbs voltage transients from inductive loads and lightning surges. Its glass-passivated chip junction ensures durability and reliability, while the unidirectional and bidirectional configurations provide versatile protection for ICs, MOSFETs, sensor lines, and more. Operating within -55°C to 175°C, it guarantees fast response and low incremental surge resistance, making it ideal for automotive, industrial, communication, and consumer electronics applications.
Order your Vishay Series15KE150AE354 transient voltage suppressor today and ensure your circuits are protected against voltage spikes with fast-acting reliability.
Frequently Asked Questions
Where can I buy Vishay 15KE150AE354?
You can click on the BUY or RFQ button to purchase 15KE150AE354 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 15KE150AE354?
You can download the 15KE150AE354 datasheet or visit the Vishay website for support.
Who is the manufacturer of 15KE150AE354?
Vishay
