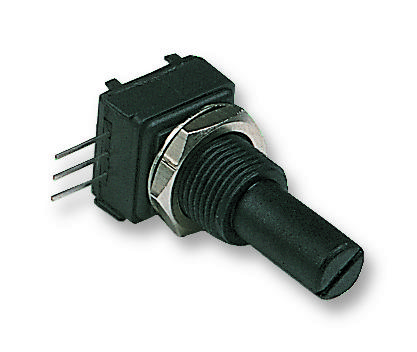

Vishay 248FGJSPXB25103MA Conductive Plastic Potentiometer
Vishay Spectrol models 248 and 249 are high-quality, conductive plastic and cermet potentiometers designed for precise resistance adjustments. The 248 model features a 0.5 W power rating at 70°C with a resistance range from 500Ω to 1 MΩ, suitable for linear or logarithmic tapers. The 249 model supports a 1 W power rating at 70°C, with similar resistance ranges and construction materials. These potentiometers are ideal for panel and PCB mounting, featuring IP50 sealing, robust mechanical travel, and high durability for demanding electronics applications.
Vishay 248FGJSPXB25103MA Conductive Plastic Potentiometer Specifications:
- Element types: Conductive plastic (Model 248), Cermet (Model 249)
- Power ratings: 0.5 W at 70°C (248), 1 W at 70°C (249)
- Resistance range: 500Ω to 1 MΩ, standard series 12.5
- Resistance tolerance: ±20%, on request ±10%
- Mechanical travel: 295° ± 5°
- Operating temperature: -55°C to +125°C
- Sealing level: IP50
- Durability: 10,000 cycles
- Environmental: Climatic category 55/125/4
- Maximum voltage: 300 V (limiting element voltage)
- Contact resistance variation: < 5% of total resistance
- End resistance: ≤ 2Ω
- Dimensions: Approx. 12.7 mm diameter, various shaft and bushing options
- Weight: ~3.2 g
- Standard packaging: Box of 25 pieces
Buy the Vishay Series 248 Conductive Plastic Potentiometer: 248FGJSPXB25103MA
Get the Vishay Series 248FGJSPXB25103MA potentiometer now available online, offering precise resistance control, high durability, and reliable performance. Designed for PCB and panel mounting, it features IP50 sealing, a wide resistance range from 500Ω to 1 MΩ, and excellent temperature stability from -55°C to +125°C. Ideal for demanding electronic applications, this high-quality component ensures consistent operation and long lifespan, making it a perfect choice for engineers and technicians seeking robust, accurate adjustment solutions for their projects.
Order your Vishay Series 248FGJSPXB25103MA today and give your electronic projects the dependable precision and durability they require.
Frequently Asked Questions
Where can I buy Vishay 248FGJSPXB25103MA?
You can click on the BUY or RFQ button to purchase 248FGJSPXB25103MA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 248FGJSPXB25103MA?
You can download the 248FGJSPXB25103MA datasheet or visit the Vishay website for support.
Who is the manufacturer of 248FGJSPXB25103MA?
Vishay
