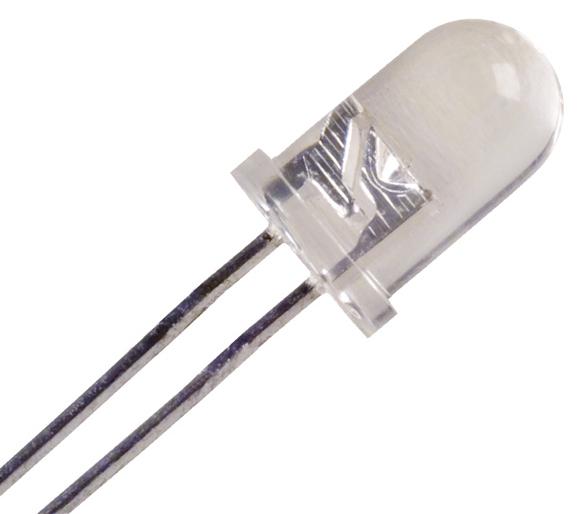

Vishay TSHF5210 Infrared Emitter Diode
The TSHF5210 is a 890 nm infrared emitting diode fabricated in GaAlAs double heterostructure (DH) technology. Encased in a clear, untinted plastic package, it offers high radiant power and intensity, making it suitable for high-speed remote control applications, free-air data transmission systems, and infrared communication that comply with IrDA standards. It is ideal for carrier frequency-based systems such as ASK/FSK at 450 kHz or 1.3 MHz, and for smoke-automatic fire detectors. The diode features a narrow half-intensity angle of ±10°, low forward voltage, and it can operate under high pulse currents. Its spectral emission is well matched with silicon photodetectors, and it boasts a high modulation bandwidth of 12 MHz, supporting high data rates and high reliability.
Vishay TSHF5210 Infrared Emitter Diode Specifications:
- Wavelength: 890 nm
- Peak wavelength: 890 nm
- Spectral bandwidth: 40 nm
- Radiant power: 50 mW at 100 mA
- Radiant intensity: 180 mW/sr at 100 mA
- Forward voltage: 14-16 V at 100 mA, peak 23 V
- Maximum forward current: 200 mA
- Peak forward current: 200 mA (tp=100 ps)
- Surge forward current: 15 A (100 ps)
- Power dissipation: 160 mW
- Junction temperature: 100 °C
- Operating temperature: -40 to +85 °C
- Storage temperature: -40 to +100 °C
- Soldering temperature: 260 °C (t<5 s, 2 mm from case)
- Thermal resistance junction/ambient: 230 KW
- Half-intensity angle: ±10°
- Modulation bandwidth: 12 MHz
- Dimensions (mm): 35.5 ±0.55 length, 4.1 ±0.25 width
- Package type: T-1%
Buy the Vishay Series TSHF Series Infrared Emitter Diode: TSHF5210
Order the Vishay TSHF5210 infrared emitter diode online today to ensure high radiant power, fast response, and reliable performance in remote controls, data links, and fire detection systems. Featuring a 890 nm wavelength, low forward voltage, and a modulation bandwidth of 12 MHz, this diode is perfect for high-speed communication and safety applications. With quick delivery and support, purchase now to enhance your electronic solutions with top-quality infrared components designed for durability and efficiency.
Buy Vishay TSHF5210 infrared emitter diode now and experience unmatched reliability and high-speed data transmission for your infrared applications.
