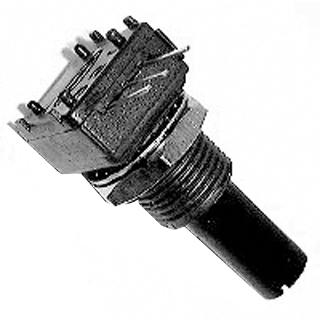

Vishay 248FGJSPXB25502MA Precision Potentiometer
The Vishay Spectrol models 248 and 249 are precision panel and PCB-mounted potentiometers designed for electronic control applications. Model 248 features conductive plastic elements rated at 0.5 W at 70°C, suitable for linear or logarithmic taper configurations, with resistance ranges from 500Ω to 1 MΩ. Model 249 utilizes cermet elements rated at 1 W at 70°C, offering high stability and durability with similar resistance values. Both models support rugged operation, sealing IP50, and are tested to CECC 41000 and IEC 60393-1 standards, making them reliable for industrial and instrumentation use.
Vishay 248FGJSPXB25502MA Precision Potentiometer Specifications:
- Element type: Conductive plastic or Cermet
- Resistance range: 500Ω to 1 MΩ
- Power rating: 0.5 W at 70°C (Model 248), 1 W at 70°C (Model 249)
- Resistance tolerance: ±20% (on request ±10%)
- Total electrical travel: 295° ±5°
- Mechanical travel: 295° ±5°
- Sealing level: IP50
- Operating temperature range: -55°C to +125°C
- End resistance: Max 2Ω
- Insulation resistance: Minimum 1000 MΩ
- Dielectric strength: 750 Vms
- End stop torque: 35 Ncm
- Weight: Approx. 0.29 oz (8.2 g)
- Tolerance options: 10%, 20%
- Mounting: PCB or panel
- Suitable for applications requiring stability, durability, and precise control
Buy the Vishay Series 248 Conductive Plastic Potentiometer: 248FGJSPXB25502MA
Discover the Vishay 248FGJSPXB25502MA precision potentiometer, ideal for electronic control systems. Featuring conductive plastic technology, 0.5 W power rating, resistance from 500Ω to 1 MΩ, and IP50 sealing, it ensures durability and accuracy. Suitable for PCB and panel mounting, with a 295° travel, and tested to industry standards for stability and longevity. Perfect for industrial, instrumentation, and control applications requiring reliable performance and precise resistance adjustment.
Buy Vishay 248FGJSPXB25502MA now and experience unmatched reliability and precise control for your electronic applications.
Frequently Asked Questions
Where can I buy Vishay 248FGJSPXB25502MA?
You can click on the BUY or RFQ button to purchase 248FGJSPXB25502MA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 248FGJSPXB25502MA?
You can download the 248FGJSPXB25502MA datasheet or visit the Vishay website for support.
Who is the manufacturer of 248FGJSPXB25502MA?
Vishay
