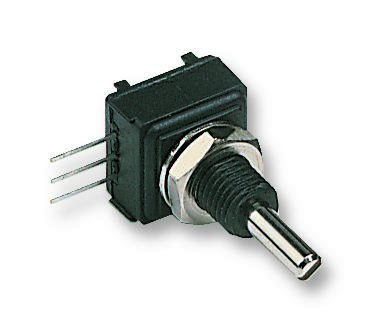

Vishay 249BBHS0XB25102KA Conductive Plastic Cermet Potentiometer
The Vishay Spectrol 249BBHS0XB25102KA is a versatile conductive plastic or cermet potentiometer designed for a wide range of applications. Its cost-effective design and compact size make it suitable for panel mounting in various industrial and consumer electronics devices. Available with linear or logarithmic taper, this potentiometer offers flexibility in circuit design. The robust construction ensures reliable performance, while the various shaft and bushing options allow for easy integration into different systems. It is commonly used in audio equipment, industrial controls, and automotive applications where precise resistance adjustment is required.
Vishay 249BBHS0XB25102KA Conductive Plastic Cermet Potentiometer Specifications:
- Model: 249
- Element Type: Cermet
- Resistance Range: 500Ω to 1 MΩ
- Resistance Tolerance: ± 20 % (on request ± 10 %)
- Power Rating: 1 W at 70 °C
- Linearity: ± 5 %
- Limiting Element Voltage: 300 V
- Insulation Resistance: 1000 MΩ minimum, 500 VDC
- Dielectric Strength: 750 VRMS minimum 50 Hz / 60 Hz
- Mechanical Travel: 295° ± 5°
- Operating Torque: 0.1 Ncm to 2 Ncm
- End Stop Torque: 35 Ncm (50 oz.-inch)
- Max. Tightening Torque: 150 Ncm
- Weight: 8.3 g
- Temperature Range: -55 °C to +125 °C
- Climatic Category: 55 / 125 / 4
- Sealing: IP 50
Buy the 249BBHS0XB25102KA VISHAY Conductive Plastic Cermet Potentiometer | myMectronic
Purchase the Vishay 249BBHS0XB25102KA potentiometer securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Vishay 249BBHS0XB25102KA?
You can click on the BUY or RFQ button to purchase 249BBHS0XB25102KA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 249BBHS0XB25102KA?
You can download the 249BBHS0XB25102KA datasheet or visit the Vishay website for support.
Who is the manufacturer of 249BBHS0XB25102KA?
Vishay
