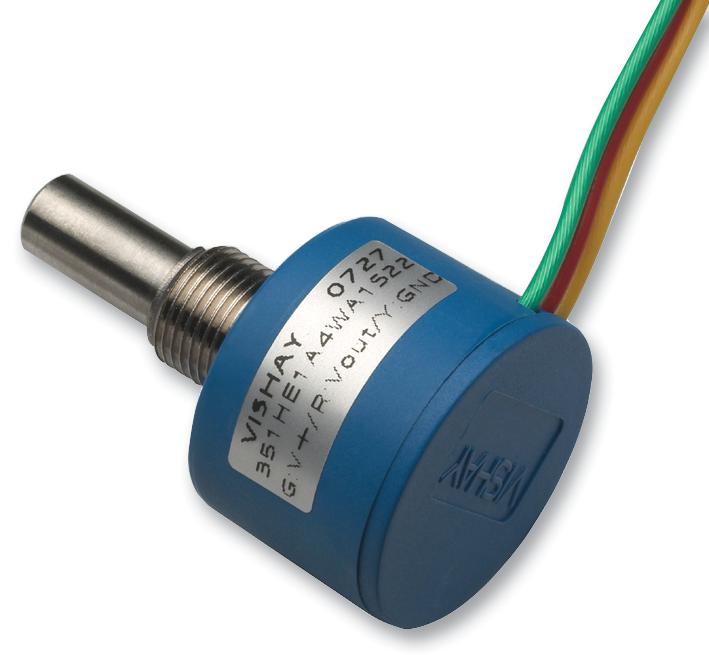

Vishay 351HE0B4WA1S22 Bushing Mount Hall Effect Sensor
The Vishay Spectrol 351HE0B4WA1S22 is a robust single-turn bushing mount Hall effect sensor suitable for a wide range of industrial applications. Featuring accurate linearity down to ±0.5%, it provides reliable position feedback. Its long operational life, exceeding 10 million cycles, and non-contacting Hall effect technology ensure durability and consistent performance in demanding environments. The sensor offers various electrical angle options, output signal types (analog ratiometric or PWM), and shaft configurations to meet specific application requirements. It is commonly used in industrial automation, automotive systems, and other applications requiring precise position sensing.
Vishay 351HE0B4WA1S22 Bushing Mount Hall Effect Sensor Specifications:
- Electrical Angle: 90°, 180°, 270°, 360° (Custom angles available)
- Linearity: ± 1 % (± 0.5 % special)
- Supply Voltage: 5 VDC ± 10 % (Other upon request)
- Supply Current: 10 mA typical (16 mA for PWM)
- Output Signal: Analog ratiometric (10 % to 90 % of Vsupply) or PWM (10 % to 90 % duty cycle) (Other upon request)
- Over Voltage Protection: + 20 VDC
- Reverse Voltage Protection: - 10 VDC
- Load Resistance: Min. 1 kΩ
- Hysteresis: < 0.2 %
- Mechanical Travel: 360° continuous (Stops upon request: 340° ± 3°)
- Bearing Type: Sleeve bearing
- Standard: IP 50
- Weight: 20g ± 2g
- Shaft Type: 6 mm, 6.35 mm, 3.175 mm, Plain, Slotted (Special upon request)
- Shaft Length: 22 mm to 72 mm (per step of 5 mm)
- Operating Temperature Range: -45 °C to +125 °C
- Vibration Resistance: 20 G (10 Hz to 2000 Hz)
- Shock Resistance: 3 shocks/axis; 50 G (11 ms)
- Rotational Speed: Max 120 rpm
- Immunity to Electromagnetic Disturbances: 200 V/m (150 kHz to 1 GHz)
- Material - Housing: Thermoplastic
- Material - Bushing: Brass, nickel plated
- Material - Shaft: Stainless steel
