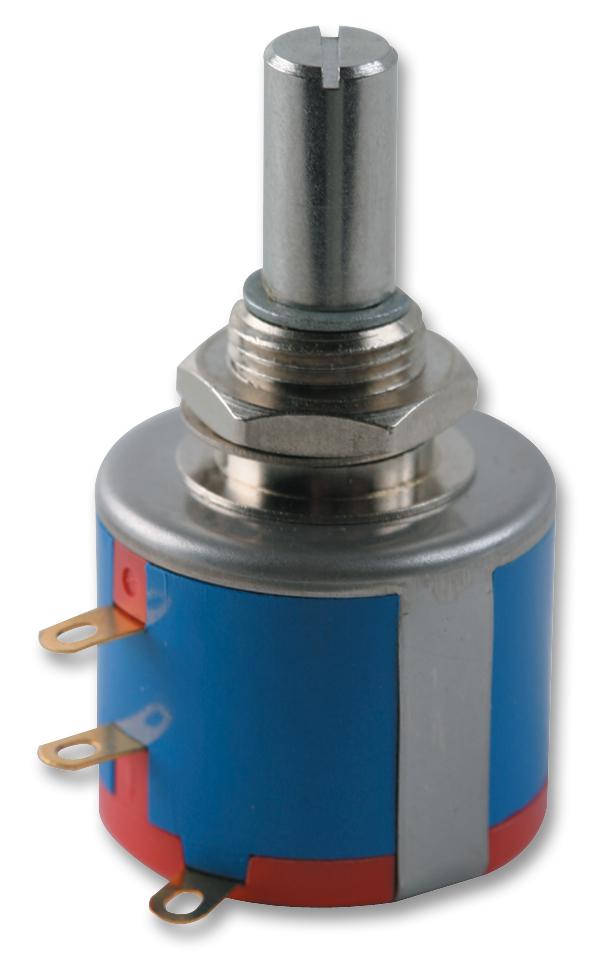

Vishay 533B1103JLB Multiturn Wirewound Potentiometer
The Vishay Spectrol multiturn wirewound potentiometers Models 533, 534, and 535 feature a compact 7/g inch (22.2 mm) diameter with high precision and durable construction. They offer 3, 10, or 5 turns respectively, with optional bushing or servo mount designs, high torque, and concentric shaft configurations. These potentiometers have resistances ranging from 2Ω to 100kΩ, with special resistance tolerances up to 1%. Suitable for industrial control applications, they provide excellent linearity, high insulation resistance, and reliable dielectric strength, operating across a wide temperature range.
Vishay 533B1103JLB Multiturn Wirewound Potentiometer Specifications:
- Diameter: 7/g inch (22.2 mm)
- Turns: 3 (Model 533), 10 (Model 534), 5 (Model 535)
- Resistance Range: 2Ω to 100kΩ
- Tolerance: Up to 1%
- Linearity: ±0.25%
- Power Rating: 1.0W (533), 20W (534), 15W (535) at 70°C
- Insulation Resistance: ≥1000 MΩ
- Dielectric Strength: ≥1000 V
- Operating Temperature: -55°C to +125°C
- Shaft Options: Metric, concentric, front extensions
- Mounting: Bushing or servo mount
- Bearing Types: Sleeve or ball bearing
- Vibration: 154g to 2000 Hz
- Shock: 50g
- Rotational Life: >500,000 to 3,000,000 shaft revolutions
- Weight: Up to 1.25 oz (35.44 g)
Buy the Buy Vishay Spectrol Multiturn Wirewound Part Number 533B1103JLB Online
Order the Vishay Spectrol multiturn wirewound potentiometer 533B1103JLB online today to enjoy exceptional control accuracy, durable build quality, and versatile mounting options. Perfect for industrial automation, control panels, and instrumentation, these potentiometers provide precise resistance adjustment with high linearity and stability across broad temperature ranges. Quickly purchase via our secure online channel and benefit from fast delivery, expert support, and the confidence of sourcing from a trusted manufacturer. Enhance your projects with reliable, high-performance potentiometers from Vishay today.
Buy Vishay Spectrol multiturn wirewound potentiometer 533B1103JLB now and experience unmatched reliability and precise control in industrial applications.
Frequently Asked Questions
Where can I buy Vishay 533B1103JLB?
You can click on the BUY or RFQ button to purchase 533B1103JLB from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 533B1103JLB?
You can download the 533B1103JLB datasheet or visit the Vishay website for support.
Who is the manufacturer of 533B1103JLB?
Vishay
