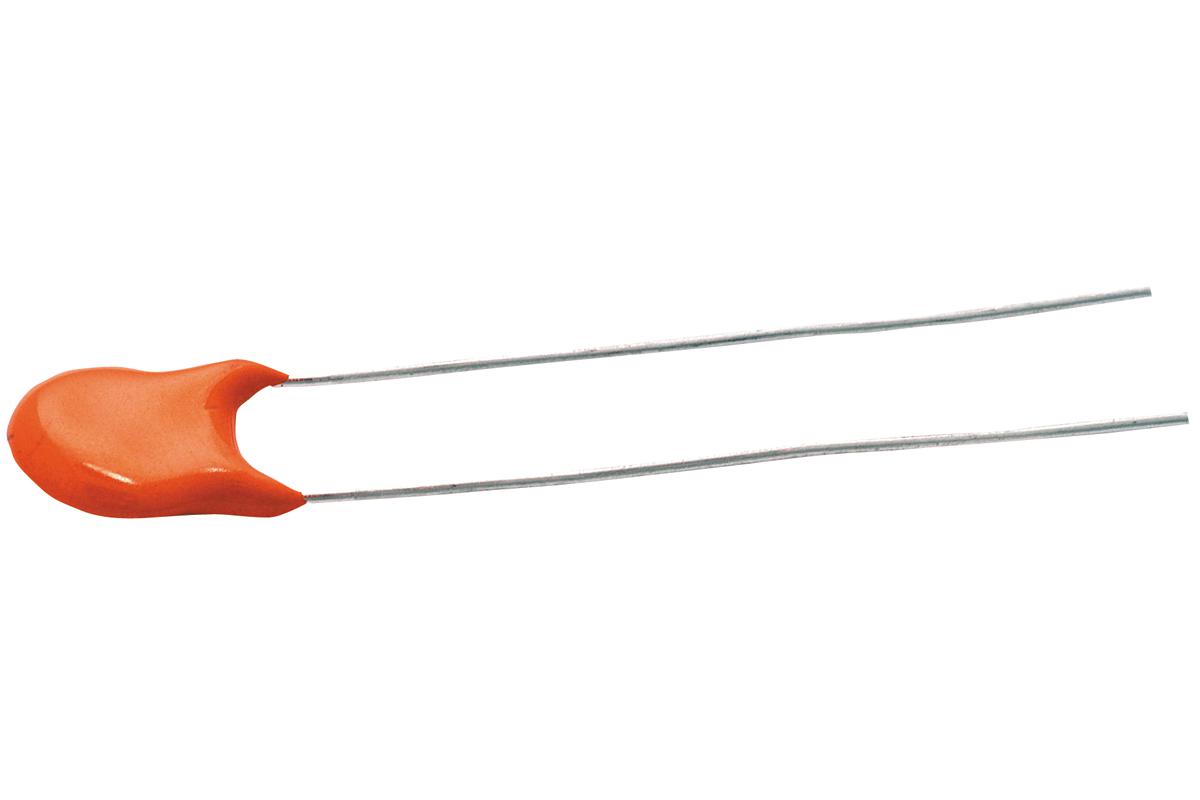

Vishay 561R10TCCQ50 Ceramic Disc Capacitor
The 561R10TCCQ50 is a radial leaded, low-voltage ceramic DC disc capacitor with kinked leads and UL94V-0 epoxy coating. Made of ceramic disc with silver-plated sides, it's suitable for temperature compensation and resonant circuits. Offering ultra-stable performance over temperature and voltage, it is ideal for precision applications. The capacitor features 22 AWG wiring, with a 1000 V rated voltage and dielectric materials like COK, COG, U2J, M3K, and S3N. Dimensions include lead diameter of 0.020 inches and spacing options of 0.250 and 0.375 inches, ensuring reliable operation in demanding environments.
Vishay 561R10TCCQ50 Ceramic Disc Capacitor Specifications:
- Capacitance: 1.0 pF to 680 pF
- Voltage Rating: 1000 Vdc
- Dielectric Materials: COK, COG, U2J, M3K, S3N
- Temperature Range: -55°C to +105°C
- Insulation Resistance: Min. 1000 MΩ or 50,000 MΩ
- Dissipation Factor: Max. 0.1% at 1 MHz; 1 V
- Lead Diameter: 0.020 inches (0.51 mm)
- Lead Spacing: 0.250 inches (6.35 mm) or 0.375 inches (9.5 mm)
- Coating: UL94 V-0 flame-retardant epoxy resin
- Features: Ultra stable over temperature and voltage, ceramic single-layer, radial leads
- Application: Temperature compensating, resonant circuits
Buy the Buy Vishay Cera-Mite 561R Series Part Number 561R10TCCQ50 Online
Purchase the Vishay Cera-Mite Ceramic Disc Capacitor 561R10TCCQ50 online today. Designed for high stability and precision in applications like temperature compensation and resonant circuits, this low-voltage capacitor features a ceramic dielectric, UL94V-0 epoxy coating, and radial leads for easy installation. With a rated voltage of 1000 Vdc and an operating temperature range of -55°C to +105°C, it ensures reliable performance in demanding environments. Order now to benefit from fast shipping and expert support for your electronic projects.
Get Vishay Cera-Mite 561R10TCCQ50 today—built for precision, high stability, and long-lasting durability in your electronic designs.
Frequently Asked Questions
Where can I buy Vishay 561R10TCCQ50?
You can click on the BUY or RFQ button to purchase 561R10TCCQ50 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 561R10TCCQ50?
You can download the 561R10TCCQ50 datasheet or visit the Vishay website for support.
Who is the manufacturer of 561R10TCCQ50?
Vishay
