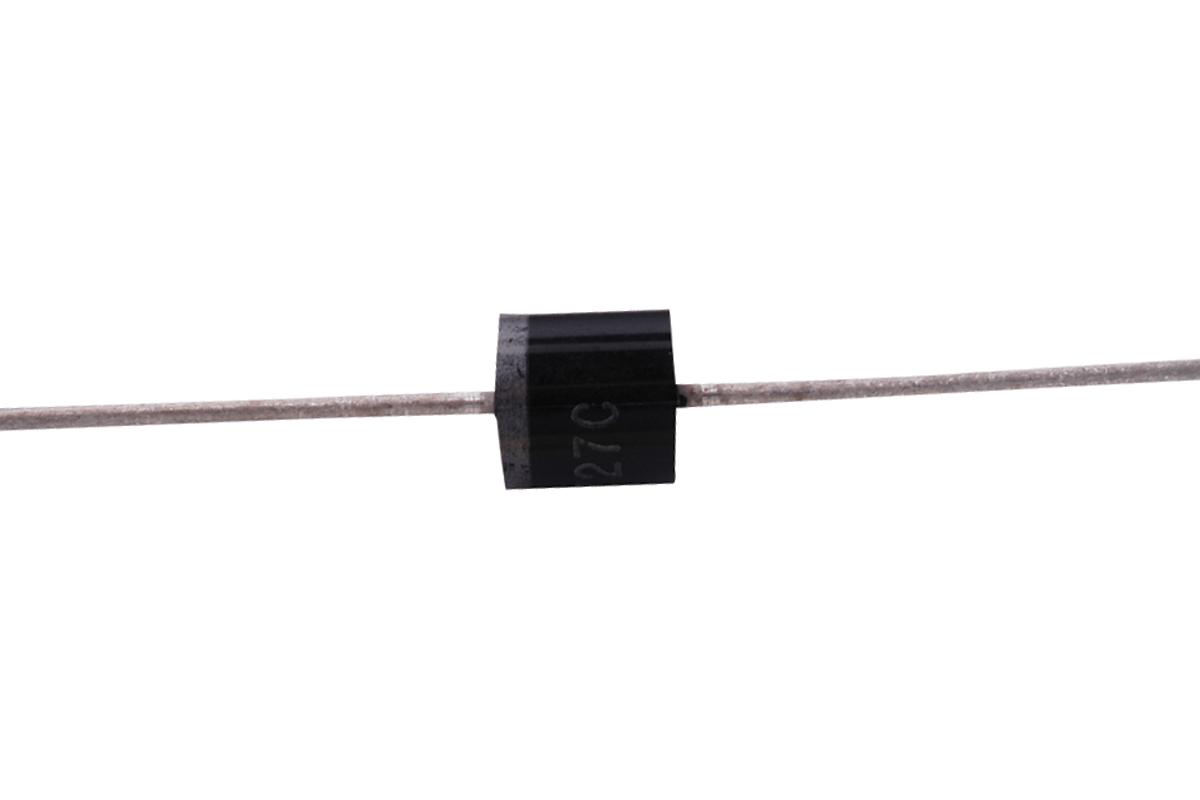

Vishay 5KP24AE354 Transient Voltage Suppressor
The Vishay 5KP24A-E3/54 is a unidirectional transient voltage suppressor (TVS) diode, ideal for protecting sensitive electronic circuits from voltage transients induced by inductive load switching and lighting. This device offers a 5000W peak pulse power capability and fast response time, ensuring robust protection for ICs, MOSFETs, and signal lines in consumer, computer, industrial, automotive, and telecommunication applications. It is AEC-Q101 qualified, making it suitable for demanding automotive environments. The device's glass passivated junction and low incremental surge resistance contribute to its reliability and performance.
Vishay 5KP24AE354 Transient Voltage Suppressor Specifications:
- VWM: 8.5 V to 188 V
- VBR: 9.4 V to 231 V
- PPPM: 5000 W
- PD: 8.0 W
- IFSM: 500 A
- TJmax: 175 °C
- Polarity: Uni-directional
- Package: P600
- Peak pulse power dissipation: 5000 W
- Peak pulse current: See table
- Power dissipation on heatsink: 8.0 W
- Peak forward surge current: 600 A
- Instantaneous forward voltage: 3.5 V
- Operating junction and storage temperature range: -55 to +175 °C
- Breakdown Voltage VBR at IT: 9.44 V to 209 V
- Test Current IT: 10.4 mA to 231 mA
- Maximum Reverse Leakage at VWM: 50 μA
- Maximum Clamping Voltage at IPPM: 347 V to 15.2 V
- Maximum Temp Coefficient of VBR: 0.078 %/°C
Buy the 5KP24A-E3/54 VISHAY Transient Voltage Suppressor | myMectronic
Securely purchase the Vishay 5KP24A-E3/54 transient voltage suppressor and protect your circuits today.
Buy Now
Frequently Asked Questions
Where can I buy Vishay 5KP24AE354?
You can click on the BUY or RFQ button to purchase 5KP24AE354 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part 5KP24AE354?
You can download the 5KP24AE354 datasheet or visit the Vishay website for support.
Who is the manufacturer of 5KP24AE354?
Vishay
