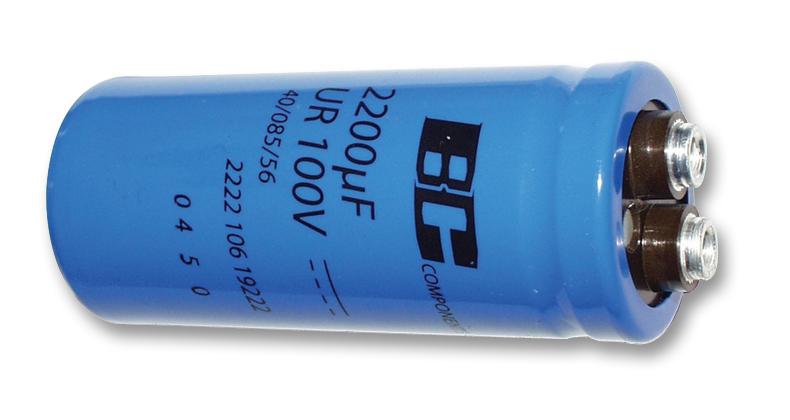

Vishay MAL210617223E3 Aluminum Capacitors
Vishay BCcomponents 106 PED-ST series are polarized aluminum electrolytic capacitors designed for high reliability and long life, with a useful life of 20,000 hours at 85°C. Featuring extremely low ESR and ESL, they are suitable for smoothing, filtering, power supplies, and energy storage in pulse systems. Delivered in cylindrical aluminum cases with screw terminals, they resist shock and vibration, making them ideal for industrial, telecommunications, and computer applications, with a pressure relief feature and RoHS compliance ensuring safety and environmental standards.
Vishay MAL210617223E3 Aluminum Capacitors Specifications:
- Nominal case size: 35 x 60 to 90 x 220 mm
- Rated capacitance range: 1000 HF to 330,000 LF
- Tolerance on rated capacitance: -10% to +30%
- Rated voltage: 25 V to 100 V
- Category temperature range: -40°C to +85°C
- Endurance test at 85°C: 8000 hours
- Useful life at 85°C: 20,000 hours
- Shelf life at 0 V, 85°C: 500 hours
- Climatic category IEC 60068 40/085/56
- Dimensions: varies by case size, e.g., 35 x 80 mm, 76 x 105 mm, 90 x 220 mm
- Maximum torque for termination screws: 2 Nm (ST), 2.6 Nm (STB bolt version)
- Pressure relief feature, shock and vibration resistance, RoHS compliant
- Made with blue insulated case, screw terminal (ST) or bolt nut (STB) options
- Maximum ESR at 100 Hz: varies with size, e.g., 0.24 Ω for 35 x 60 mm
- Maximum impedance at 20 kHz: varies by size, typically around 10-20 mΩ
- Leakage current after 1 min at rated voltage: < 0.006 * Cp * Up + 4 μA
- ESR and impedance tested at 85°C, 100 Hz and 20 kHz respectively
- Case insulations include cylindrical aluminum with safety thread and venting
Buy the Vishay Series 106 PED-ST Aluminum Capacitors: MAL210617223E3
Explore and purchase Vishay 106 PED-ST series aluminum electrolytic capacitors online today. Built for high reliability, long life of 20,000 hours at 85°C, with features like low ESR/ESL, shock resistance, and RoHS compliance. Ideal for smoothing, filtering, power supplies, energy storage, and pulse systems, these cylindrical aluminum case capacitors are available in various sizes with screw terminals or bolt versions. Ensure your industrial, computer, and telecom systems operate optimally with these high-performance, environmentally compliant capacitors—buy online now for quick delivery and trusted quality.
Buy Vishay 106 PED-ST series aluminum electrolytic capacitors now and experience unmatched reliability and performance in industrial power systems.
