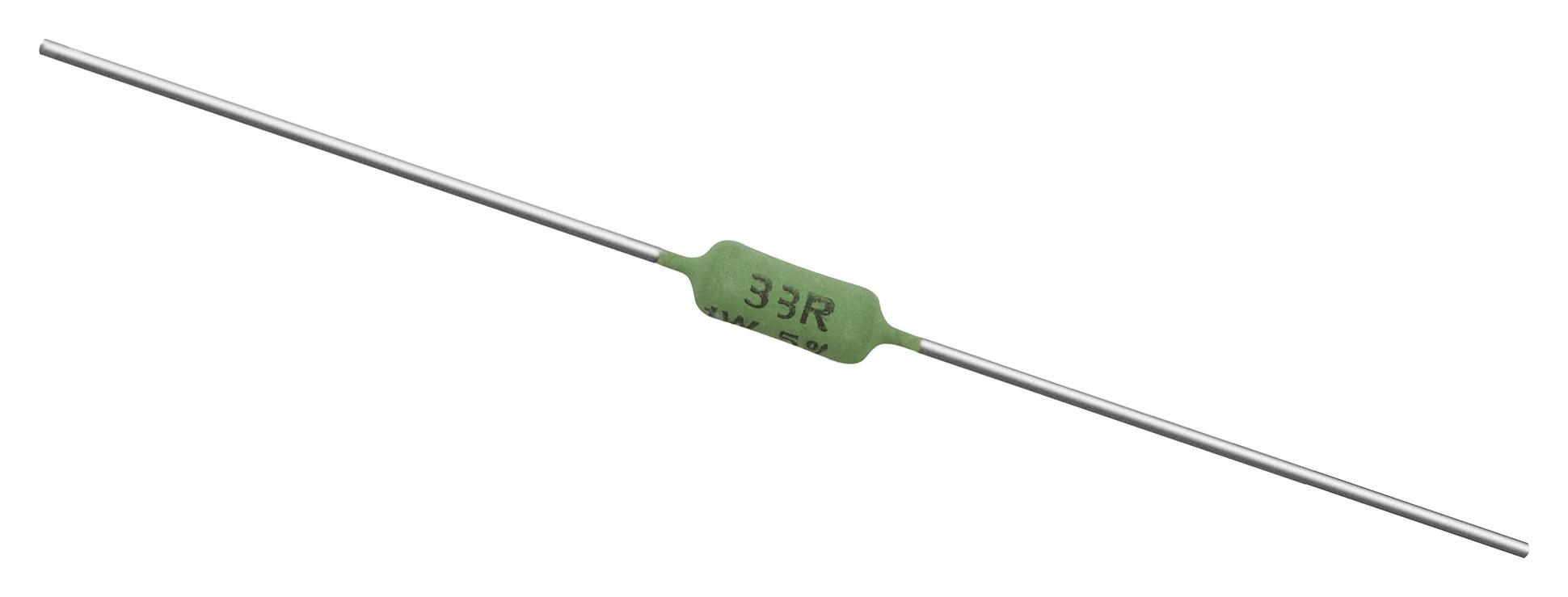

Vishay AC05AT0004701JAC00 High Power Wirewound Resistor
Vishay Draloric's cemented leaded wirewound resistors are designed for high power and high current applications, with a robust silicon cement lacquer coating that withstands challenging environmental conditions. Manufactured with high-quality ceramic on Al2O3, these resistors meet strict mechanical, thermal, dielectric, and insulation standards. Suitable for energy meters, power supplies, and automotive electronics, they feature various lead forms including radial taped, Z-form, and kinked options. Compliant with international safety and environmental standards like RoHS and WEEE, they ensure reliable performance in demanding environments.
Vishay AC05AT0004701JAC00 High Power Wirewound Resistor Specifications:
- Resistance Range: 0.10 to 750kΩ
- Rated Dissipation: 1W to 26W depending on model
- Temperature Range: -55°C to +250°C
- Ceramic Material: Al2O3
- Coating: Silicon cement lacquer, non-flammable, RoHS compliant
- Lead Forms: Radial taped, Z-form, kinked (DK, DKLP, EK, WSZ)
- Lead Diameter: 0.8 mm + 0.03 mm
- Maximum Lead Lengths: 17.8 mm to 75 mm depending on type
- TCR: ±100 ppm/K
- Tolerance: ±5%
- Packaging: Taped, bulk, or blister options
- Compliance: RoHS, WEEE, IEC 62474, GADSL, SVHC free
- Dimensions: Length varies from 11 mm to 44 mm, diameter up to 3 mm depending on model
- Mass: From 0.52 g to 4.5 g depending on size
Buy the Vishay AC05AT – Reliable High Power Wirewound Resistors for Industrial Applications
Purchase Vishay AC05AT high power wirewound resistors online today for your industrial and automotive applications. These resistors offer robust construction, high dissipation, and excellent environmental resistance. Perfect for energy meters, power supplies, and demanding electronic systems, they are RoHS compliant and available in various lead forms including radial taped, kinked, and Z-form for easy mounting. Ensure your project’s reliability with these precision-engineered resistors designed for thermal stability, electrical accuracy, and long-term performance in challenging conditions. Buy now for efficient procurement and fast delivery!
Get Vishay AC05AT today—built for high power and demanding environments, ensuring long-lasting durability and reliable performance in your industrial projects.
Frequently Asked Questions
Where can I buy Vishay AC05AT0004701JAC00?
You can click on the BUY or RFQ button to purchase AC05AT0004701JAC00 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AC05AT0004701JAC00?
You can download the AC05AT0004701JAC00 datasheet or visit the Vishay website for support.
Who is the manufacturer of AC05AT0004701JAC00?
Vishay
