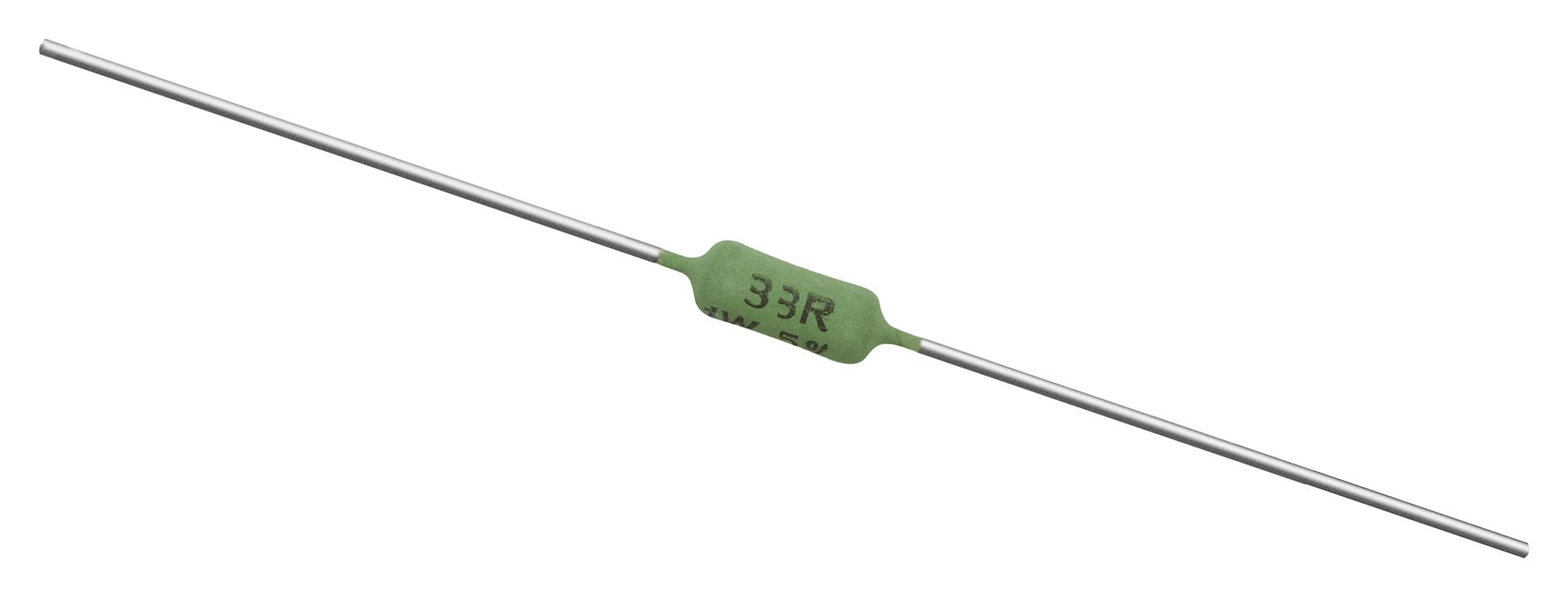

Vishay AC05AT0008209JAC00 High Power Wirewound Resistor
The AC series comprises high power wirewound resistors designed for rugged high current and high power applications. Encapsulated with a silicon cement lacquer coating, these resistors withstand challenging environmental conditions and resist cleaning solvents. Constructed on a ceramic Al2O3 body with precise winding materials, they offer excellent thermal and mechanical resilience, making them suitable for automotive, industrial, energy meters, and power supply uses. The resistors feature marked resistance and tolerance, undergo extensive quality testing, and comply with hazardous substance regulations for reliability and safety.
Vishay AC05AT0008209JAC00 High Power Wirewound Resistor Specifications:
- Resistance range: 0.10Ω to 2.4kΩ for AC01-AT, 75Ω to 27kΩ for AC03-AT, and up to 44.0Ω for AC10-AT
- Rated dissipation: 1W to 10W depending on model
- Operating temperature: -55°C to +250°C
- Ceramic body: Al2O3, high dielectric strength and mechanical resistance
- Coating: Silicon cement lacquer resistant to solvents and environmental stress
- Lead form: Axial, with options for DK, EK, WSZ, and other bending styles
- Tolerance: ±5% with markings for resistance and power rating
- Test standards: IEC 60115-1 and IEC 60068-2-xx with environmental and electrical stress tests
- Compliance: RoHS, Hazardous substance regulations, and AEC-Q200 qualified for automotive use
- Dimensions vary from 11.0 mm to 44.0 mm in length, with lead diameters of 0.8 mm
Buy the Buy Vishay AC Series High Power Wirewound Resistor Part Number AC05AT0008209JAC00 Online
Acquire the Vishay AC Series high power wirewound resistor AC05AT0008209JAC00 online today. Engineered with a ceramic Al2O3 body and silicon cement coating, this resistor provides exceptional thermal and mechanical resilience. Suitable for demanding automotive, industrial, and power supply systems, it meets stringent standards like IEC 60115-1 and RoHS compliance. With various lead configurations and precise resistance marking, it guarantees consistent performance. Order now for dependable high current handling, environmental durability, and high-quality manufacturing proven through extensive testing and certification.
Order your Vishay AC Series High Power Wirewound Resistor AC05AT0008209JAC00 today and ensure reliable high current performance for automotive, industrial, and energy applications.
Frequently Asked Questions
Where can I buy Vishay AC05AT0008209JAC00?
You can click on the BUY or RFQ button to purchase AC05AT0008209JAC00 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AC05AT0008209JAC00?
You can download the AC05AT0008209JAC00 datasheet or visit the Vishay website for support.
Who is the manufacturer of AC05AT0008209JAC00?
Vishay
