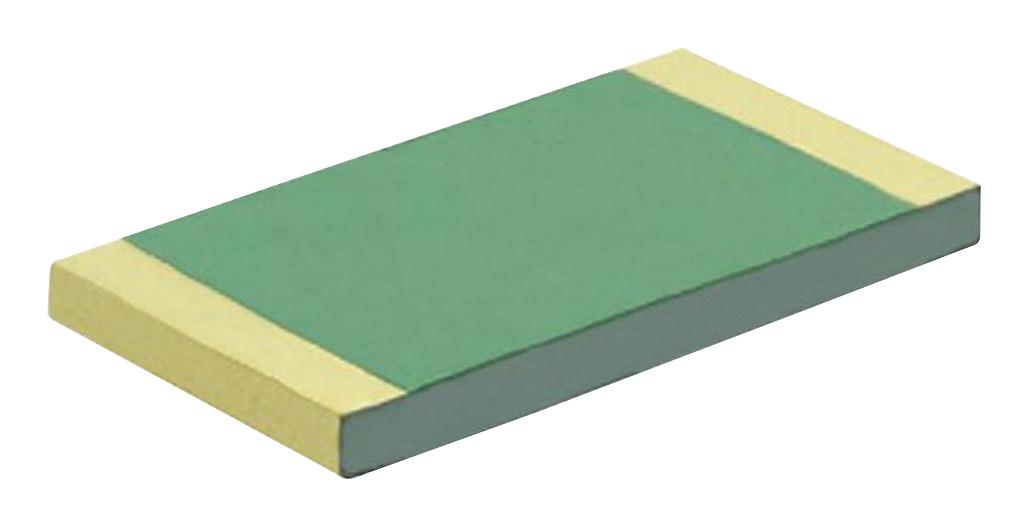

Vishay PEP0402Y1502WNTA High Power Thin Film Resistor
The PEP series high-precision wraparound power-enhanced thin film chip resistors are designed for high-power applications, offering low noise, superior stability, and low temperature and voltage coefficients. The resistive thin film layer can withstand temperatures up to 250°C, with robustness mainly dependent on termination and solder joint integrity. These resistors are ideal for compact designs needing maximum power capacity, providing load stability of 0.1% at 2000 hours at 70°C, with sulfur resistance confirmed by ASTM B809-95 humid vapor test and tin-silver over gold barriers ensuring durability.
Vishay PEP0402Y1502WNTA High Power Thin Film Resistor Specifications:
- Technology: Thin film
- Film: Nickel chromium based alloy
- Operating temperature range: -55°C to +155°C
- Resistance range: 39 Ω to 900 kΩ depending on size
- Rated power: Up to 1 W for 1206 size without cooling
- Termination: Tin silver over nickel barrier or gold over nickel barrier
- Dimensions: 0402, 0603, 0805, 1206 sizes with specific dimensions per size
- Resistance Tolerance: Down to +0.05%
- Temperature coefficient: +5 ppm/°C to +25 ppm/°C depending on model
- Load life stability: 0.1% (typical) at 2000 hours at 70°C
- Humidity resistance: Verified per ASTM B809-95
- Protection: Epoxy and silicone coating
- Peak operating temperature: 250°C
- CSA compliant, RoHS, halogen-free
Buy the Buy Vishay Sfernice PEP Series High Power Thin Film Chip Resistor Part Number PEP0402Y1502WNTA Online
Purchase the Vishay Sfernice PEP series high-precision, power-enhanced thin film chip resistors online today. Designed for high-power applications, these resistors offer low noise, excellent stability, and are highly resistant to sulfur and humidity. Their unique construction withstands temperatures up to 250°C, making them ideal for demanding industrial environments. Available in multiple sizes with tight tolerance down to 0.05%, they are perfect for compact designs needing reliable power capacity and durability under thermal and mechanical stress. Order now and upgrade your projects with trusted Vishay quality.
Order your Vishay Sfernice PEP0402Y1502WNTA high-power thin film resistor today and ensure reliable performance in your high-temperature, high-humidity environments.
Frequently Asked Questions
Where can I buy Vishay PEP0402Y1502WNTA?
You can click on the BUY or RFQ button to purchase PEP0402Y1502WNTA from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part PEP0402Y1502WNTA?
You can download the PEP0402Y1502WNTA datasheet or visit the Vishay website for support.
Who is the manufacturer of PEP0402Y1502WNTA?
Vishay
