Vishay AY2221K29Y5SS63L7 Automotive Ceramic Capacitor
High-reliability automotive grade AC line rated ceramic disc capacitors designed for line filtering and primary-secondary coupling in battery chargers and DC/DC converters for PHEV/EV and hybrid vehicle applications. Featuring ceramic dielectric with Class 1 and Class 2 classifications, these capacitors operate between -55°C to +125°C, withstand high voltage and temperature cycles, and are flame retardant with UL 94 V-0 coating. They are available with straight or kinked leads, various lead spacings, and packaging options suitable for automated assembly, meeting IEC and UL standards for safety and performance.
Vishay AY2221K29Y5SS63L7 Automotive Ceramic Capacitor Specifications:
- Capacitance Range: 10 pF to 4700 pF
- Voltage (Vac): 300 | 440 Vac for Y2 and X1 types
- Dielectric: Ceramic Class 1 (U2J, N750) and Class 2 (Y5S, YSU)
- Operating Temperature: -55°C to +125°C
- Capacitance Tolerance: +20% (code M); +10% (code K)
- Dissipation Factor: Class 1 max. 0.3% at 1 MHz; Class 2 max. 2.5% at 1 kHz
- Insulation Resistance: ≥210000 MΩ
- Test Voltage: 2600 Vac 50 Hz, 2 s
- Body Diameter: 11.0 mm (for small sizes), up to 16.0 mm (larger sizes)
- Lead Diameter: 0.6 mm
- Lead Spacing: 5 mm, 7.5 mm, or 10 mm
- Temperature Cycles: Can pass 3000 temperature cycles from -55°C to +125°C
- Climatic Category: 40/125/21
- Coating: Flame retardant epoxy resin UL 94 V-0
- Certifications: IEC 60384-14, UL 60384-14, CSA, VDE, CQC
- Packaging: Bulk, tape and reel, ammopack

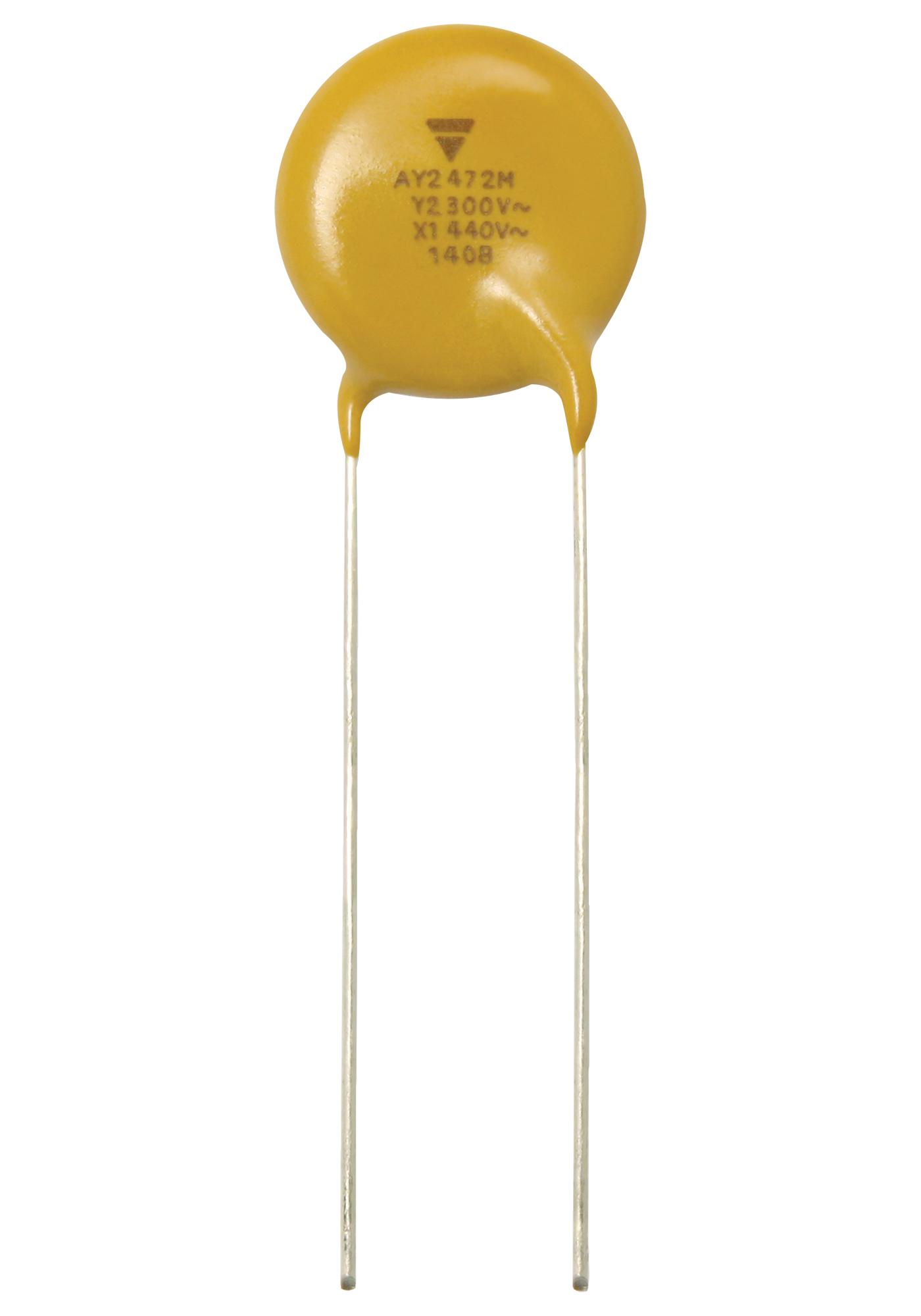

Buy the VISHAY AY2 – Reliable Ceramic Capacitors for Industrial Applications
Discover the high-performance VISHAY AY2 ceramic capacitors, engineered for demanding automotive and industrial applications. These ceramic disc capacitors operate reliably in temperatures from -55°C to +125°C, withstand high voltage tests, and feature UL and IEC safety standards. They are suitable for line filtering, coupling, and decoupling in power supplies, battery chargers, and DC/DC converters for electric and hybrid vehicles. Available in various lead spacings and packaging options, these capacitors offer excellent stability and durability for your manufacturing needs.
Order your VISHAY AY2 ceramic disc capacitor today and ensure high reliability for line filtering and automotive electronic projects.
Frequently Asked Questions
Where can I buy Vishay AY2221K29Y5SS63L7?
You can click on the BUY or RFQ button to purchase AY2221K29Y5SS63L7 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part AY2221K29Y5SS63L7?
You can download the AY2221K29Y5SS63L7 datasheet or visit the Vishay website for support.
Who is the manufacturer of AY2221K29Y5SS63L7?
Vishay
