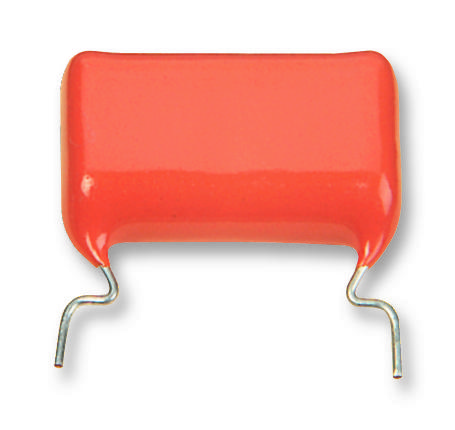

Vishay BFC237534333 High-Voltage Film Capacitor
Vishay BCcomponents KP/MKP 375 series capacitors are high-voltage metallized polypropylene film capacitors designed for applications involving high currents, steep pulses, and deflection circuits in television sets. They feature robust construction, multiple pitch options, and are supplied loose, in tapes, or on reels with automatic insertion compatibility. These capacitors have rated voltages up to 2000 V DC and 600 V AC, exhibit excellent stability and low loss at high frequencies, and are suitable for demanding electrical and electronic applications requiring reliable performance under thermal and electrical stress.
Vishay BFC237534333 High-Voltage Film Capacitor Specifications:
- Dielectric: Polypropylene film
- Electrodes: Metallized and aluminum
- Construction: Internal serial
- Rated (DC) Voltage: 630 V, 1000 V, 1600 V, 2000 V
- Rated (AC) Voltage: 300 V, 400 V, 500 V, 600 V
- Rated Peak-to-Peak Voltage: 850 V, 1100 V, 1400 V, 1700 V
- Capacitance Range: 0.1 nF to 270 nF for high-voltage series
- Capacitance Tolerance: ±5%
- Temperature Range: -55°C to +105°C, maximum application temperature 105°C
- Impulse Voltage: Up to 1700 V peak
- Impedance: Low at high frequencies, typical loss tangent < 6 at rated voltages
- Insulation Resistance: > 100 MΩ at 500 V for various pitches
- Encapsulation: Flame-retardant epoxy (UL 94 V-0)
- Vibration Resistance: Meets IEC standards
- Humidity & Climatic Test: Compliant with IEC 60068-1
Buy the Buy Vishay KP/MKP 375 Part Number BFC237534333 Online
Upgrade your electronic projects with the Vishay KP/MKP 375 high-voltage metallized polypropylene film capacitor. Designed for high current and steep pulse applications, it features ratings up to 2000 V DC, excellent thermal stability, and low loss at high frequencies. Available in various pitches and packages, this capacitor offers reliable long-term performance and robust construction, making it the ideal choice for power electronics, deflection circuits, and demanding industrial applications. Buy now online and ensure dependable operation for your equipment.
Order your Vishay series KP/MKP 375 high-voltage film capacitor today and ensure reliable performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy Vishay BFC237534333?
You can click on the BUY or RFQ button to purchase BFC237534333 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BFC237534333?
You can download the BFC237534333 datasheet or visit the Vishay website for support.
Who is the manufacturer of BFC237534333?
Vishay
