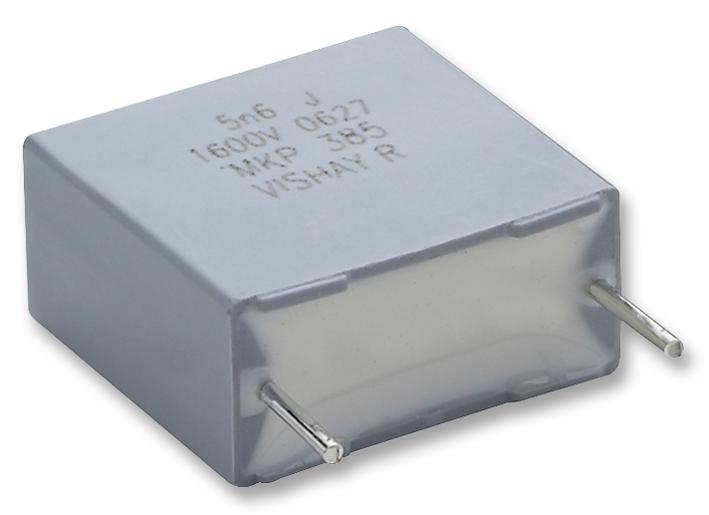

Vishay BFC238560153 High-Voltage Polypropylene Capacitor
Vishay BCcomponents MKP 385 radial potted metallized polypropylene film capacitor is designed for high-frequency pulse and AC applications such as switch-mode power supplies, electronic lighting, and motor control circuits. It features low dielectric loss, high-density packaging dimensions, and is supplied loose or on tape reels with various lead configurations. Rated for ±5% capacitance tolerance at 1600V or 2000V DC, and operates at a maximum temperature of 110°C with proven stability and reliability, making it suitable for demanding industrial environments.
Vishay BFC238560153 High-Voltage Polypropylene Capacitor Specifications:
- Capacitance range: 0.00047 to 0.033 LF
- Rated (DC) Voltage: 1600 V, 2000 V
- Rated (AC) Voltage: 550 V, 700 V
- Maximum operating temperature: 110°C
- Temperature rating: 85°C continuous, 125°C for limited time
- Dielectric: Metallized polypropylene film
- Construction: Internal serial
- Material: Flame retardant plastic case, UL 94 V-0
- Lead configuration: Tinned wire, bent back options available
- Packaging: Loose in box, taped reel, or Ammopack with lead pitches of 7.5 mm, 10 mm, and 15 mm
- Climatic category: 55/110/56, IEC 60068-1
- Compliance: RoHS, halogen-free
- Insulation resistance: >50 GΩ at 85°C, 2000 V, varies with temperature and voltage
- Impregnation: Epoxy resin encapsulation
- Pulse testing: withstands peak voltages over 2000 V with specified pulse shapes
- Features: Low-loss dielectric, small size for high-density applications, suitable for pulse and AC use
Buy the Vishay BFC238560153 – Reliable Pulse Capacitor for Industrial Applications
Purchase your Vishay BFC238560153 high-voltage metallized polypropylene film capacitor online now. Designed for pulse and AC applications, it offers stable performance at up to 2000V, operates at high temperatures, and is RoHS compliant. Perfect for demanding industrial power supplies, motor controls, and lighting systems, this reliable capacitor ensures long-term durability and high-frequency stability. Order today and get trusted quality directly from Vishay for your critical projects.
Order your Vishay BFC238560153 series high-voltage polypropylene capacitor today and ensure your circuits perform reliably under demanding pulse and AC conditions.
Frequently Asked Questions
Where can I buy Vishay BFC238560153?
You can click on the BUY or RFQ button to purchase BFC238560153 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BFC238560153?
You can download the BFC238560153 datasheet or visit the Vishay website for support.
Who is the manufacturer of BFC238560153?
Vishay
