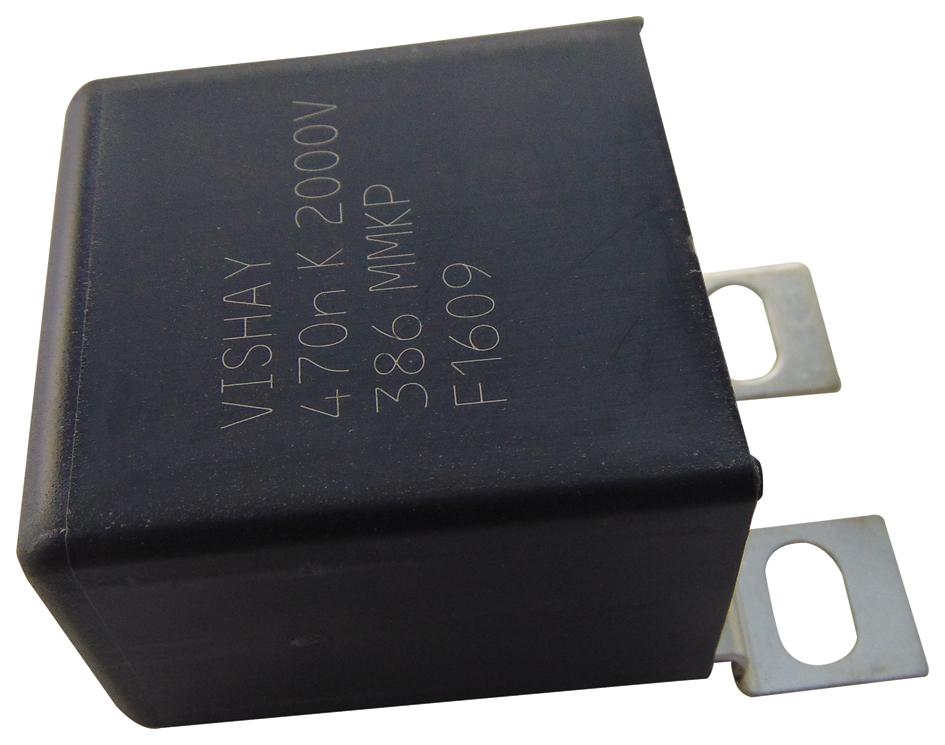

Vishay BFC238670274 High-Voltage Film Capacitor
The Vishay MMKP 386 series consists of radial snubber polypropylene film capacitors designed for industrial motor control circuits, especially mounted directly on IGBT or GTO devices. With low inductive construction and double-sided metallization, they offer high pulse ratings and low dielectric loss, ensuring reliable performance in demanding applications. Rated temperatures are 85°C with a voltage range up to 2500 V peak-to-peak, conforming to IEC standards. Encapsulated in flame-retardant plastic cases, these long-life performance grade capacitors feature precise dimensions, robust mounting options, and excellent thermal stability and electrical properties suitable for high-voltage pulse and switching environments.
Vishay BFC238670274 High-Voltage Film Capacitor Specifications:
- Capacitance range: 0.1 pF to 4.7 pF; 0.33 pF, 0.56 pF, 0.68 pF, 0.82 pF, 1.0 pF, 1.2 pF, 1.5 pF, 1.8 pF, 2.2 pF, 2.7 pF, 3.3 pF, 3.9 pF, 4.7 pF
- Rated (DC) voltage: 630 V, 850 V, 1000 V, 1250 V, 1400 V, 1600 V, 2000 V, 2500 V
- Maximum operating DC voltage: up to 2500 V peak-to-peak
- Climatic testing class: 50/085/56 IEC standard
- Rated (DC) temperature: 85°C, maximum application temperature: 85°C
- Dielectric: Polypropylene film; Electrodes: Double metallized; Construction: Mono from 630V, serial from 850V
- Encapsulation: Flame retardant plastic case UL 94 V-0, epoxy resin; Tabs: Tinned copper
- Dimensions: varies per capacitance, e.g., 22.0 x 30.5 x 33.5 mm for lower values, up to 22.0 x 38.0 x 44.0 mm for larger values
- Impedance and loss angle: Typical at 100 kHz ESR: 6 mΩ; ESL: 15 nH; Temperature range: -55°C to +85°C
- Performance grade: Grade 1 (long life), Stability grade: Grade 2
- Type test standards: IEC 60384-17; RoHS, halogen-free compliant
- Mechanical: Designed for direct mounting on IGBT or GTO, with specific mounting screws to withstand vibration and shock
Buy the Buy Vishay MMKP 386 Part Number BFC238670274 Online
Order Vishay MMKP 386 polypropylene film capacitor online and experience reliable performance in motor control circuits. Designed for high pulse ratings and temperatures up to 85°C, these capacitors are ideal for demanding industrial applications. With robust construction, precise dimensions, and conformance to IEC standards, they provide long-term stability and durability. Available in various voltage ratings, the Vishay MMKP 386 series is perfect for switching power supplies, motor drives, and snubber circuits, ensuring optimal electrical properties and safety in your critical applications.
Get Vishay MMKP 386 high-voltage polypropylene film capacitor today—built for industrial motor control, long-lasting reliability, and high pulse performance.
Frequently Asked Questions
Where can I buy Vishay BFC238670274?
You can click on the BUY or RFQ button to purchase BFC238670274 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BFC238670274?
You can download the BFC238670274 datasheet or visit the Vishay website for support.
Who is the manufacturer of BFC238670274?
Vishay
