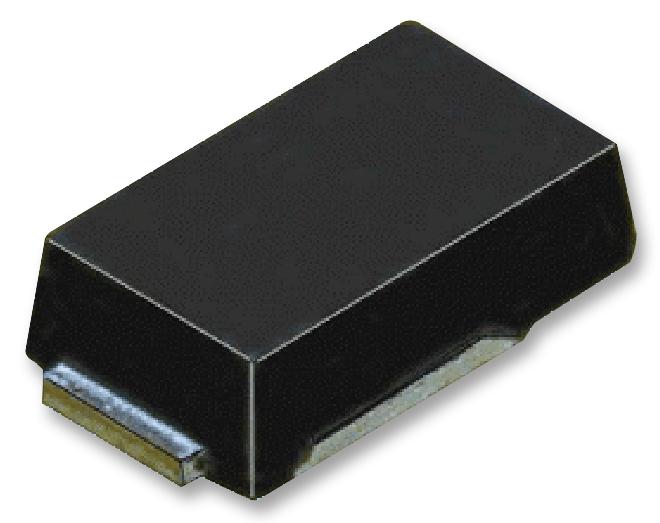

Vishay SS2PH10M384A High Voltage Schottky Diode
The Vishay SS2PH10 is a high voltage surface mount Schottky barrier rectifier in a DO-220AA (SMP) package. Designed with high barrier technology, it offers improved high temperature performance and low forward voltage drop, making it ideal for high-frequency inverters, DC/DC converters, and polarity protection applications. This diode is RoHS compliant, halogen-free, and available in AEC-Q101 qualified versions. Its compact, ultra-low profile and low thermal resistance ensure efficient operation in automotive and industrial environments, supporting a maximum junction temperature of 175°C.
Vishay SS2PH10M384A High Voltage Schottky Diode Specifications:
- Package: DO-220AA (SMP)
- Maximum Repetitive Peak Reverse Voltage: 100 V
- Average Forward Rectified Current: 2.0 A
- Peak Forward Surge Current: 50 A
- Forward Voltage (at 2.0A): 0.62V (typ. at 125°C), 0.77V (typ. at 25°C)
- Reverse Current (at 25°C): 0.04 μA, at 125°C: 60-500 μA
- Junction Capacitance: 65 pF at 4.0 V, 1 MHz
- Thermal Resistance Junction-to-Ambient: 110 °C/W
- Operating Temperature Range: -65°C to +175°C
- Material: Molding compound UL 94 V-0, matte tin plated leads
- Dimensions: 0.142 x 0.126 x 0.037 inches (3.61 x 3.19 x 0.94 mm)
Buy the Vishay Series eSMP Schottky Barrier Rectifier: SS2PH10
Order the Vishay SS2PH10 high voltage Schottky barrier rectifier online today. Designed in a compact surface-mount package, it delivers reliable performance for high-frequency inverters, DC/DC converters, and automotive circuits. With high temperature capability, low forward voltage, and RoHS compliance, this diode ensures efficiency and durability in demanding applications. Its UL 94 V-0 flammability rating, halogen-free construction, and AEC-Q101 qualification make it an excellent choice for automotive and industrial electronics. Purchase now for rapid delivery and superior quality.
Get Vishay SS2PH10 today—built for high voltage reliability and low forward voltage in surface-mount packages.
Frequently Asked Questions
Where can I buy Vishay SS2PH10M384A?
You can click on the BUY or RFQ button to purchase SS2PH10M384A from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part SS2PH10M384A?
You can download the SS2PH10M384A datasheet or visit the Vishay website for support.
Who is the manufacturer of SS2PH10M384A?
Vishay
