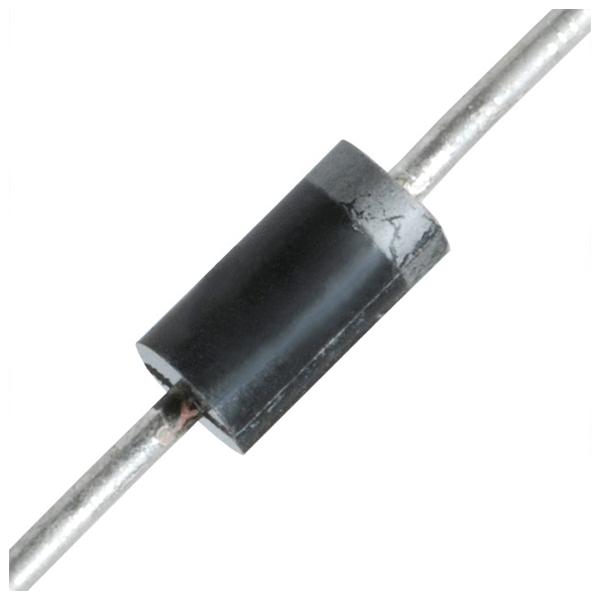

Vishay BZX55C11TR Small Signal Zener Diode
The BZX55C11TR is a small signal Zener diode capable of voltage stabilization with a Vz range of 2.4 to 75 V. Designed for precise voltage regulation in electronic circuits, it features a low reverse current, high stability, and RoHS compliance. Suitable for applications requiring voltage reference or stabilization, it has a Power dissipation of 500 mW, a maximum junction temperature of 175°C, and comes in a DO-35 package with UL94 V-0 flammability rating. Its electrical characteristics include test current at 25 mA and a forward voltage of 15 V at 200 mA.
Vishay BZX55C11TR Small Signal Zener Diode Specifications:
- Voltage range: 2.4 to 75 V
- Power dissipation: 500 mW
- Junction temperature max: 175°C
- Test current: 25 mA
- Forward voltage: 15 V at 200 mA
- Package: DO-35
- Moisture sensitivity: Level 1
- Flammability rating: UL 94 V-0
- Storage temperature: -65°C to +175°C
- Maximum junction temperature: 175°C
- Junction to ambient air resistance: 300 K/W
- Material: Semiconductor silicon
- RoHS compliant, AEC-Q101 qualified
Buy the Vishay Series BZX55 Zener Diode: BZX55C11TR
Purchase the Vishay Series BZX55C11TR small signal Zener diode online today and ensure your electronic circuits benefit from reliable voltage regulation. With a Vz range of 2.4 to 75 V, low noise, and high stability, this diode is ideal for voltage reference and stabilization tasks. Its compact DO-35 package offers easy integration for various applications. Featuring a maximum junction temperature of 175°C and a power dissipation of 500 mW, the BZX55C11TR guarantees performance and durability in demanding environments. Secure your stock now for efficient circuit design and maintenance.
Order your Vishay Series BZX55C11TR small signal Zener diode today and give your projects the dependable voltage stabilization they deserve.
Frequently Asked Questions
Where can I buy Vishay BZX55C11TR?
You can click on the BUY or RFQ button to purchase BZX55C11TR from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part BZX55C11TR?
You can download the BZX55C11TR datasheet or visit the Vishay website for support.
Who is the manufacturer of BZX55C11TR?
Vishay
