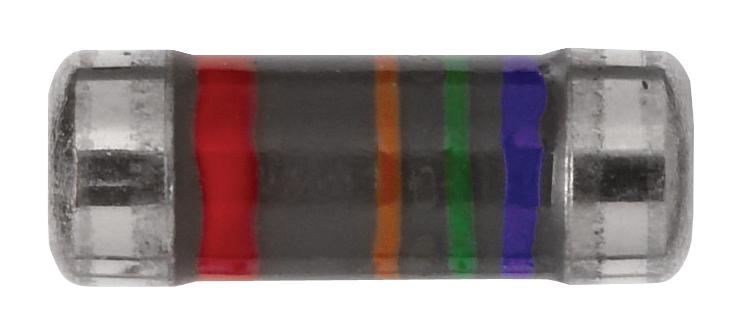

Vishay CMB02070X1000GB200 High Pulse Load Resistor
The CMB 0207 series MELF resistor features advanced pulse load capability, making it ideal for protecting circuitry on signal and mains input lines from surge pulses. It is suitable for circuits exposed to high levels of electromagnetic interference and electro-static discharge. The resistor utilizes special carbon film technology and offers up to 10kV or 17kW single pulse capacity, as well as 16kV ESD capability in the human body model. It is also AEC-Q200 qualified, ensuring reliability in automotive applications.
Vishay CMB02070X1000GB200 High Pulse Load Resistor Specifications:
- DIN size: 0207
- Resistance range: 2.2Ω to 1.5MΩ
- Resistance tolerance: ±5 %, ±2 %, ±1 %
- Temperature coefficient: see TCR graph
- Rated dissipation: 1.0W at 155°C film temperature
- Operating voltage: 500 V maximum
- Permissible film temperature: max 155°C
- Operating temperature range: -85°C to 155°C
- Pulse load capacity: up to 17kW single pulse, 10kV
- ESD capability: 16kV human body model
- Surge voltage: up to 10kV 1.2/50 us pulse
- Material: Homogeneous carbon film on Al2O3 ceramic
- Terminations: Nickel plated steel caps with matte tin
- Dimensions: length 5.8 ± 0.15 mm, diameter 2.2 ± 0.2 mm
- Weight: approximately 79 mg
- Packaging: blister tape or reel as per IEC 60286-3
Buy the Vishay CMB 0207 – Reliable Surge Protection Resistor for Industrial Applications
Shop the Vishay CMB 0207 high pulse load resistor online today to ensure robust surge and EMI protection for your electronic circuits. With advanced carbon film technology, this resistor offers exceptional pulse capacity up to 17kW and withstands surge voltages up to 10kV, making it ideal for automotive, telecommunication, industrial, and medical applications. Its proven reliability, high ESD capability, and compliance with automotive standards ensure long-term performance. Purchase now for fast delivery and secure your circuit protection needs with trusted Vishay quality.
Order your Vishay Series CMB 0207 surge protection resistor today and enhance the resilience of your circuits with dependable, high pulse load performance.
