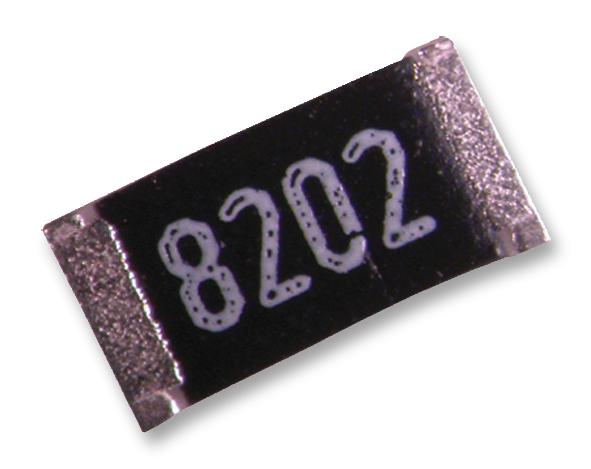

Vishay CRCW06032K20FKEAHP High Power Thick Film Resistor
The Vishay CRCW-HP e3 series are pulse-proof, high-power thick film chip resistors designed for demanding applications. Features include pure tin solder contacts on nickel barrier layers, excellent pulse load capability, and a double-sided resistor element with protective overglaze. These resistors are AEC-Q200 Rev. C qualified, offering tolerance levels of ±0.5%, ±1%, and ±5%. Suitable for high-current environments due to zero-ohm jumpers in all sizes, they have a power rating twice that of standard series, providing superior surge performance. Ideal for automotive, industrial, and power measurement applications, they combine reliability with excellent thermal and electrical stability.
Vishay CRCW06032K20FKEAHP High Power Thick Film Resistor Specifications:
- Type: Thick film chip resistor
- Series: CRCW-HP e3
- Resistance range: 1 Q to 1 MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- Temperature coefficient: ±200 ppm/°C or ±100 ppm/°C depending on model
- Rated power: 0.75W to 15W depending on size
- Maximum voltage: 50V to 500V depending on size
- Resistance values: 562R (0.562 Ω), 10K (10,000 Ω), 1M (1 MΩ), etc.
- Operating temperature range: -55°C to +155°C
- Pulse load capability: Designed for high pulse and surge performance
- Material: Cermet film with glass-over layer, pure tin on nickel plating
- Compliance: RoHS, AEC-Q200 Rev. C qualified
- Packaging: Tape, blister, and bulk options for automated assembly
- Dimensions: Vary according to size; detailed dimensions provided in datasheet
- Marking: Three- or four-character code indicating resistance value as per IEC 60062
- Application: Automotive electronics, industrial power control, measurement systems
Buy the Vishay Series CRCW-HP e3 High Power Thick Film Chip Resistors: CRCW0603-HP
Order Vishay CRCW0603-HP high-power thick film resistors online today. Engineered for high pulse loads, exceptional surge performance, and durability in automotive, industrial, and power measurement applications. These resistors feature precise resistance tolerances, wide temperature ranges, and RoHS compliance. Suitable for automatic assembly and compatible with lead-free soldering processes, they ensure reliable operation under extreme conditions. Purchase now to benefit from high-quality, tested components designed to meet the most demanding electronic systems with long-term stability and excellent thermal management.
Get Vishay CRCW0603-HP high-power thick film chip resistor today—built for precision, high surge endurance, and long-lasting reliability in demanding environments.
Frequently Asked Questions
Where can I buy Vishay CRCW06032K20FKEAHP?
You can click on the BUY or RFQ button to purchase CRCW06032K20FKEAHP from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CRCW06032K20FKEAHP?
You can download the CRCW06032K20FKEAHP datasheet or visit the Vishay website for support.
Who is the manufacturer of CRCW06032K20FKEAHP?
Vishay
