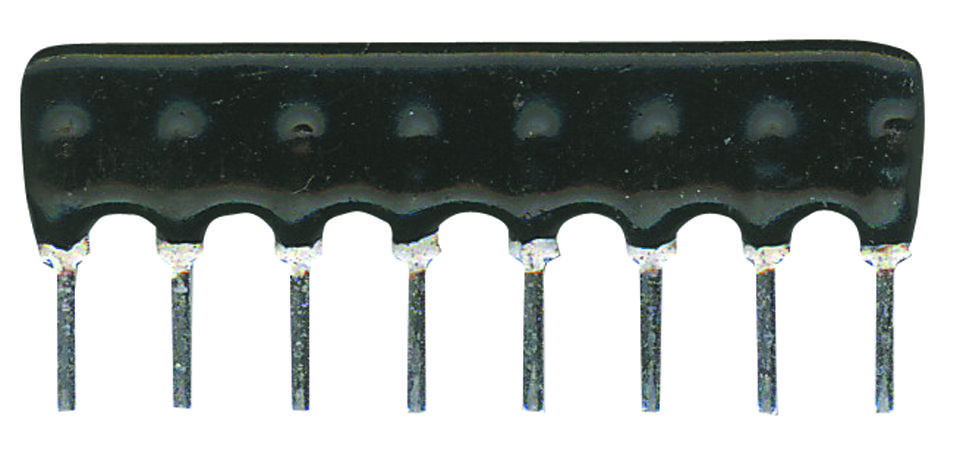

Vishay CSC08A0110K0GEK Resistor Networks
The Vishay Dale CSC series consists of single-in-line resistor networks designed for reliable circuit applications. Available in 'A' and 'B' profiles, these resistors feature conformal coatings, wide resistance ranges from 10Ω to 2.2MΩ, and are RoHS compliant. They support various configurations including bussed, isolated, and dual terminator schematics, suitable for pull-up/pull-down, line termination, and impedance balancing. Their robust epoxy body and solder-plated terminals ensure durability, making them ideal for industrial, telecommunications, and automation systems.
Vishay CSC08A0110K0GEK Resistor Networks Specifications:
- Profiles: A = 0.195 inches (4.95 mm), B = 0.295 inches (7.50 mm), custom C = 0.350 inches (8.89 mm)
- Resistance Range: 10Ω to 2.2MΩ
- Power Rating: A profile up to 1.5W, B profile up to 1.9W at 70°C
- Maximum Working Voltage: Deratings apply, see datasheet for specifics
- Body Material: High alumina, epoxy coated
- Terminals: Solder plated leads
- Temperature Range: -56°C to +125°C
- RoHS Compliant: Yes, lead-free options available
- Impedance: Various codes from 82Ω to 3.3KΩ depending on model
- Application: Pull-up/pull-down, impedance balancing, line termination, LED current limiting
Buy the Vishay CSC – Reliable Resistor Networks for Industrial Applications
Enhance your electronic designs with Vishay CSC resistor networks, offering wide resistance options, robust construction, and RoHS compliance. Designed for reliability in industrial electronics, telecommunications, and automation, these resistor arrays are available in various profiles and schematics including bussed, isolated, and dual terminator configurations. Their conformal coating and solder-plated terminals ensure durability in demanding environments. Purchase online today to ensure precise impedance, excellent performance, and seamless integration into your projects with fast worldwide shipping.
Buy Vishay CSC resistor networks now and experience unmatched durability and consistent performance in industrial and automation systems.
Frequently Asked Questions
Where can I buy Vishay CSC08A0110K0GEK?
You can click on the BUY or RFQ button to purchase CSC08A0110K0GEK from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part CSC08A0110K0GEK?
You can download the CSC08A0110K0GEK datasheet or visit the Vishay website for support.
Who is the manufacturer of CSC08A0110K0GEK?
Vishay
