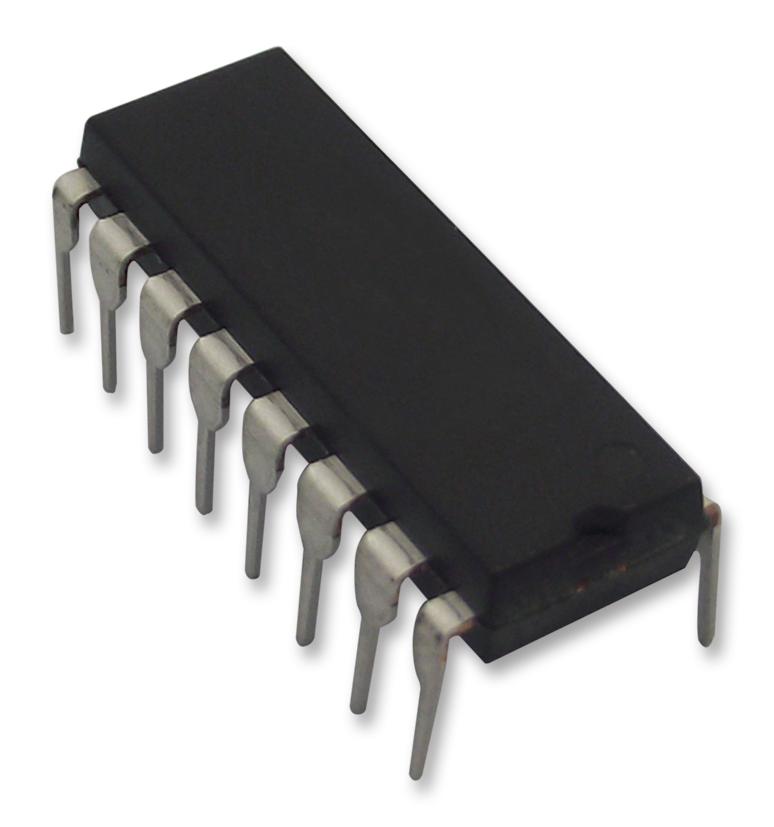

Vishay DG309BDJE3 Analog Switch
The DG309B analog switch is a high-performance, quad CMOS device fabricated in Vishay Siliconix’s proprietary silicon gate CMOS process. It offers lower on-resistance, leakage current, and power consumption, with fast switching times under 200 ns. Designed for applications in instrumentation, telecommunications, and computer peripherals, it features true bi-directional performance, a wide input voltage range, and an extended temperature range. The device’s charge injection compensation reduces transients, making it suitable for precision and sample-and-hold circuits across various industry sectors.
Vishay DG309BDJE3 Analog Switch Specifications:
- Supply Voltage: +22 V maximum
- On-Resistance: 45 Ω (typical), 85 Ω (max at room temperature)
- Leakage Current: 20 pA (typical at room temperature)
- Switching Time: < 200 ns
- Charge Injection: 1 pC
- Winch operating temperature range: -40°C to 125°C
- Package options include Dual-In-Line, SOIC, TSSOP
- Control Logic: CMOS compatible, Vin high >11V, Vin low <3.5V
- Voltage Range: Up to ±15 V input signals, full analog signal range 0 to 12 V or -15 to 15 V depending on version
- Power Dissipation: 640 mW (SOIC, TSSOP), 900 mW (CerDIP)
- Absolute Max Voltages: Referenced V+ to V- up to 44 V, terminal currents up to 30 mA
Buy the Vishay Series Improved CMOS Analog Switch: DG309BDJE3
Enhance your electronic projects with the Vishay DG309BDJE3 analog switch, featuring low on-resistance, fast switching speed, and wide voltage range. Ideal for instrumentation, telecom, and high-precision applications, this device offers low leakage current, minimized transients, and robust operation across an extended temperature range. Its compact package options ensure space savings while maintaining high performance, making it suitable for various industrial and portable instrument designs. Purchase online today to benefit from Vishay’s quality and innovation, ensuring your circuit's optimal reliability and operational efficiency.
Buy Vishay DG309BDJE3 now and experience unmatched reliability and performance in high-speed analog switching applications.
