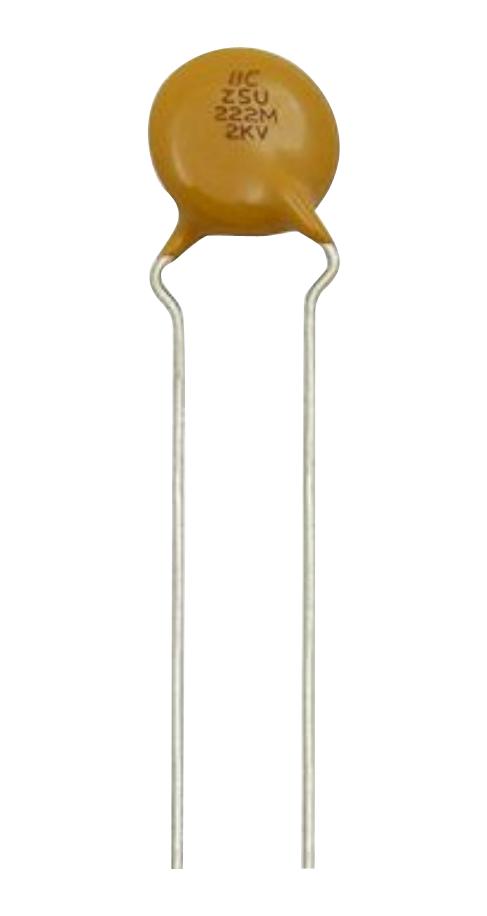

Vishay F272K75S3NR83K0R Ceramic Disc Capacitor
These ceramic disc capacitors offer high reliability and low losses, featuring Class 1 and Class 2 dielectric materials with ratings up to 3 kV. Ideal for electronic circuits requiring high capacitance in a small size, such as SMPS, HF ballast, and high voltage snubber applications, they have kinked leads for easy mounting, silver-plated ceramic discs, and epoxy-resin encapsulation compliant with UL 94 V-0. Operating temperature ranges from -30°C to +125°C, with capacitance tolerance of +10% or +20%. The capacitors meet IEC 60384-9 and EIA 198 standards, ensuring consistent performance in demanding environments.
Vishay F272K75S3NR83K0R Ceramic Disc Capacitor Specifications:
- Capacitance Range: 100 pF to 4700 pF
- Voltage Ratings: 500 V; 1 kV; 2 kV; 3 kV
- Dielectric: SN Y5R, YSR, or Y5R
- Temperature Range: -30°C to +125°C
- Dissipation Factor: Max 0.2%
- Insulation Resistance: Min 210000 MΩ at 500 V
- Lead Diameter: 0.6 mm
- Lead Spacing: 5 mm or 7.5 mm
- Material: Silver-plated ceramic disc, epoxy resin encapsulation
- Marking: Capacitance and voltage according to EIA 198, tolerance +10% or +20%
Buy the Buy Vishay Ceramic Disc Capacitor Part Number F272K75S3NR83K0R Online
Order Vishay ceramic disc capacitor F272K75S3NR83K0R online for reliable high-voltage performance in compact design. Perfect for applications like snubber circuits, high-frequency circuits, and power supplies where low losses and high reliability are essential. Featuring kinked leads for easy mounting, silver-plated ceramic discs, and epoxy encapsulation compliant with UL 94 V-0 standards, this capacitor offers capacitance from 100 pF to 4700 pF, voltage up to 3 kV, and temperature resilience from -30°C to +125°C. Buy now for immediate availability and dependable performance!
Get Vishay F272K75S3NR83K0R today—built for high voltage and long-lasting durability.
Frequently Asked Questions
Where can I buy Vishay F272K75S3NR83K0R?
You can click on the BUY or RFQ button to purchase F272K75S3NR83K0R from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part F272K75S3NR83K0R?
You can download the F272K75S3NR83K0R datasheet or visit the Vishay website for support.
Who is the manufacturer of F272K75S3NR83K0R?
Vishay
