Vishay HVCC153Y6P221MEAX High Voltage Ceramic Capacitor
The HVCC Series high voltage ceramic capacitors feature Y6P dielectric, radial-leaded design, and capacitance values ranging from 100 pF to 2000 pF. Built with ceramic Class 2 material, they offer high reliability, low losses, and RoHS compliance, suitable for high voltage power supplies, medical x-ray systems, and industrial laser applications. These capacitors withstand voltages up to 15,000 V, operate between -30°C to +105°C, and include options for customized lead styles and higher voltages. The construction includes a ceramic disc with silver-plated sides, tinned copper clad steel leads, and flame-retardant epoxy coating for durability.
Vishay HVCC153Y6P221MEAX High Voltage Ceramic Capacitor Specifications:
- Ceramic Dielectric: Y6P
- Capacitance Range: 100 pF to 2000 pF
- Voltage Rating: Up to 15,000 V
- Operating Temperature: -30°C to +105°C
- Capacitance Tolerance: ±20%
- Dissipation Factor: Max. 1.5%
- Insulation Resistance: Min. 200 GΩ at 500 V
- Mounting: Radial leads with lead spacing options of 9.5 mm and 12.7 mm
- Mechanical: Ceramic disc with silver-plated sides, tinned copper steel wires
- Coating: Flame-retardant epoxy resin (UL 94 V-0)

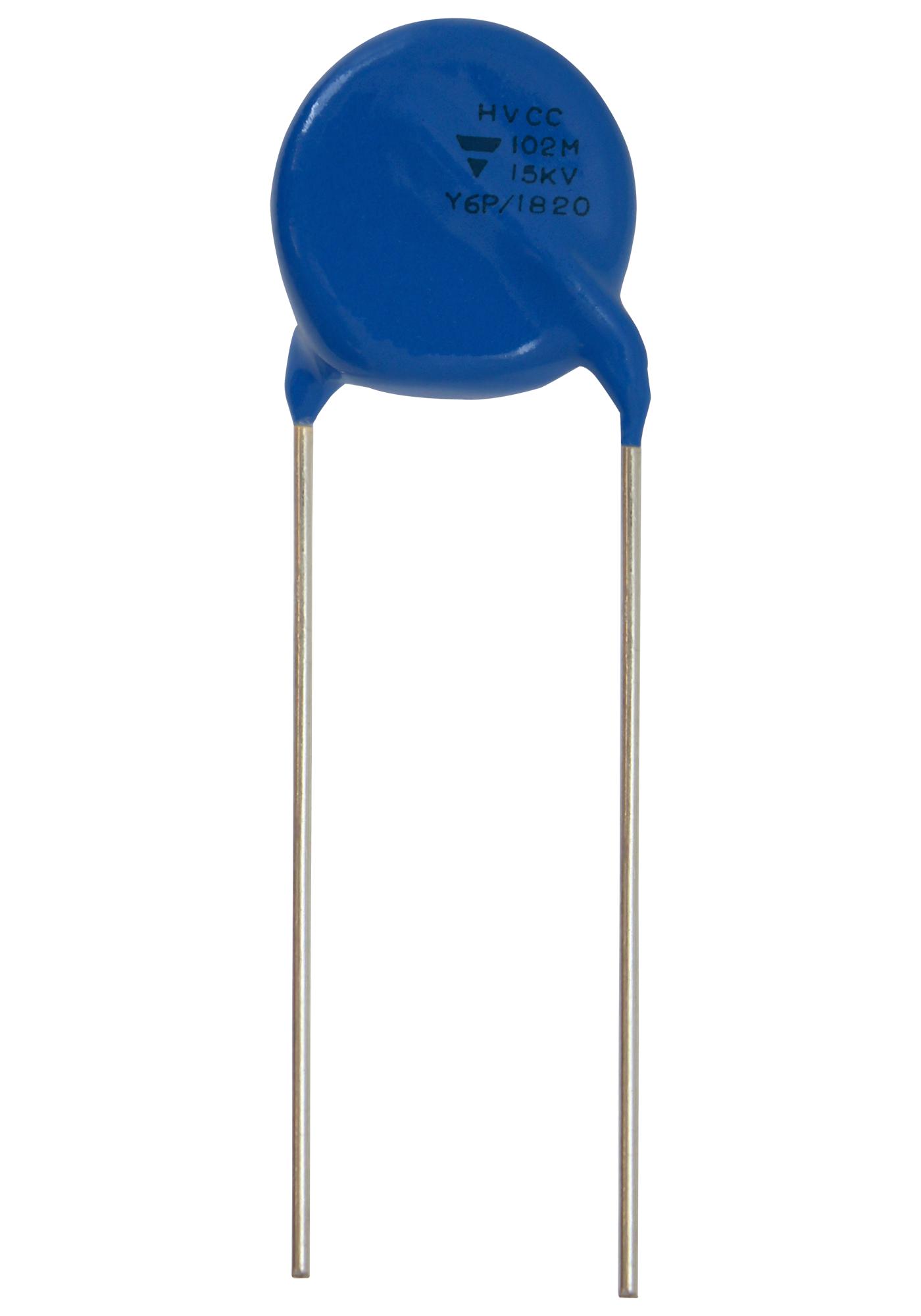

Buy the Buy Vishay HVCC Series Capacitor Part Number HVCC153Y6P221MEAX Online
Purchase the Vishay HVCC153Y6P221MEAX ceramic capacitor online today and benefit from high voltage capacity up to 15kV, robust construction, and precise capacitance. Designed for demanding applications like medical x-ray systems, power supplies, and industrial lasers, this high reliability component features Y6P dielectric, radial lead configuration, and RoHS compliance. Its durable epoxy coating and ceramic disc construction ensure long-lasting performance, while customizable options are available. Order now to secure high-quality, reliable components for your advanced engineering projects and power systems.
Order your Vishay HVCC153Y6P221MEAX high voltage ceramic capacitor today and ensure reliable power supply solutions with high dielectric stability and low losses.
Frequently Asked Questions
Where can I buy Vishay HVCC153Y6P221MEAX?
You can click on the BUY or RFQ button to purchase HVCC153Y6P221MEAX from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part HVCC153Y6P221MEAX?
You can download the HVCC153Y6P221MEAX datasheet or visit the Vishay website for support.
Who is the manufacturer of HVCC153Y6P221MEAX?
Vishay
