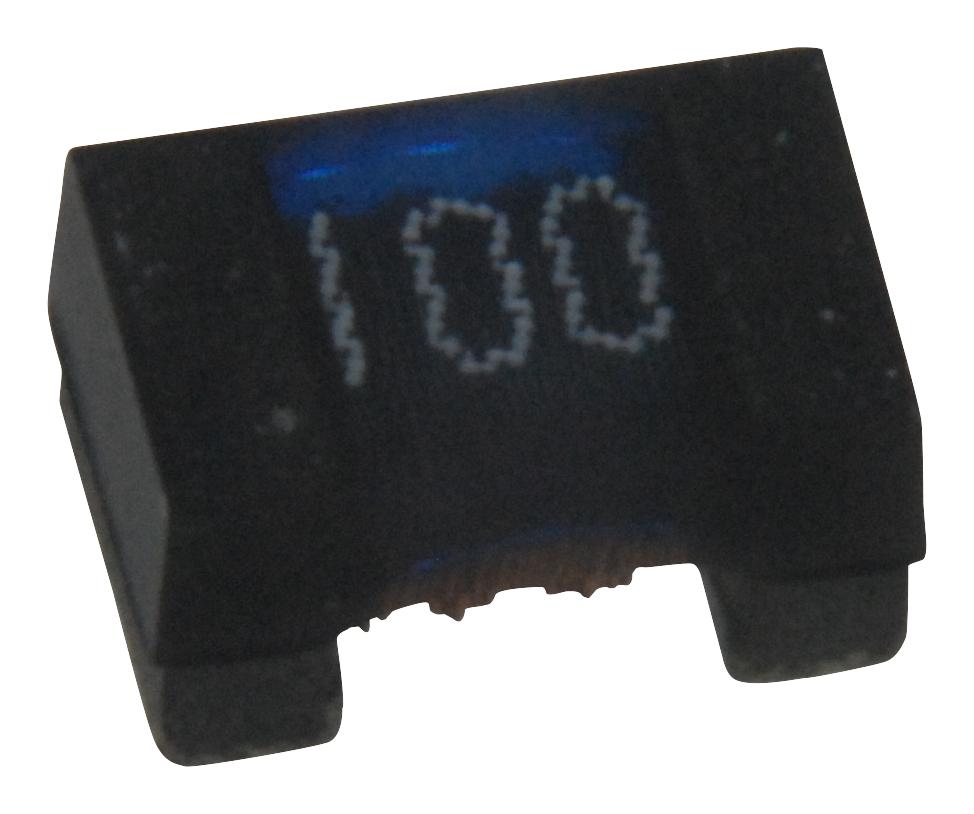

Vishay IMC0805ER100J01 Surface Mount Inductor
The IMC-0805-01 series surface-mount wire wound inductor features a ceramic and ferrite core, providing high self-resonant frequency and high Q values suitable for high-frequency applications. It is compatible with vapor phase and infrared reflow soldering, halogen-free per IEC 61249-2-21 standards, and supports an inductance range from 2.2 nH to 10,000 nH. Operating temperature spans from -40°C to 125°C, making it ideal for various demanding electronic circuits requiring reliable inductors. Its RoHS compliance ensures environmentally friendly manufacturing and usage.
Vishay IMC0805ER100J01 Surface Mount Inductor Specifications:
- Inductance Range: 2.2 nH to 10,000 nH
- Tolerance: ±5%, ±2%
- Operating Temperature: -40°C to 125°C
- Core Material: Ceramic from 2.2 nH to 390 nH; Ferrite from 470 nH to 10,000 nH
- Self-Resonant Frequency: High values at higher frequencies
- Q Values: High Q at elevated frequencies
- Compatibility: Vapor phase and infrared reflow soldering
- RoHS: Compliant according to IEC 61249-2-21 standards
- Packaging: Tape and reel for automatic handling
- Test Equipment: Inductance and Q measured on HP4286A and HP4285A
Buy the Vishay Dale Series IMC: Surface Mount Inductors 10 nH
Shop the Vishay Dale IMC-0805-01 surface mount inductor online today and experience high self-resonant frequency, high Q values, and broad inductance coverage from 2.2 nH to 10,000 nH. Engineered with ceramic and ferrite cores, these inductors are compatible with vapor phase and infrared reflow soldering processes. Fully RoHS compliant and halogen-free, they deliver reliable performance across a wide temperature range from -40°C to 125°C. Perfect for demanding electronic circuits requiring compact, environmentally friendly, and high-performance inductors. Buy now for seamless online shopping and fast delivery.
Get Vishay Dale IMC-0805-01 today—built for high frequency performance and reliable power filtering in modern electronics.
Frequently Asked Questions
Where can I buy Vishay IMC0805ER100J01?
You can click on the BUY or RFQ button to purchase IMC0805ER100J01 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IMC0805ER100J01?
You can download the IMC0805ER100J01 datasheet or visit the Vishay website for support.
Who is the manufacturer of IMC0805ER100J01?
Vishay
