Vishay IMC0805ERR22J01 Surface Mount Inductor
The IMC-0805-01 is a surface mount wirewound inductor offering high self-resonant frequencies and high Q at elevated frequencies, suitable for RF and signal filtering applications. It features a ceramic or ferrite core, RoHS compliance, and is designed for vapor phase and infrared reflow soldering with tape and reel packaging for automated assembly. With inductance values from 2.2 nH to 10,000 nH, it operates across a temperature range of -40°C to +125°C, maintaining reliable electrical performance in demanding environments.
Vishay IMC0805ERR22J01 Surface Mount Inductor Specifications:
- Inductance Range: 2.2 nH to 10,000 nH
- Tolerance: ±5%, ±2%
- Materials: Ceramic for 2.2 nH to 390 nH; Ferrite for 470 nH to 10,000 nH
- Operating Temperature: -40°C to +125°C
- Package Type: Surface mount, Tape and reel
- Dimensions: Length approximately 0.079 inches (2.00 mm), Width approximately 0.02 inches (0.52 mm), Height approximately 0.045 inches (1.15 mm)
- Q Values: Up to 1000 at specified frequencies
- Self-Resonant Frequency: High, depending on inductance
- RoHS Compliant and Halogen-Free
- Suitable for vapor phase and infrared reflow soldering
- Test equipment: Inductance and Q measured with HP4286A and HP4285A; SRF on HP8753E; DCR on HP4338B

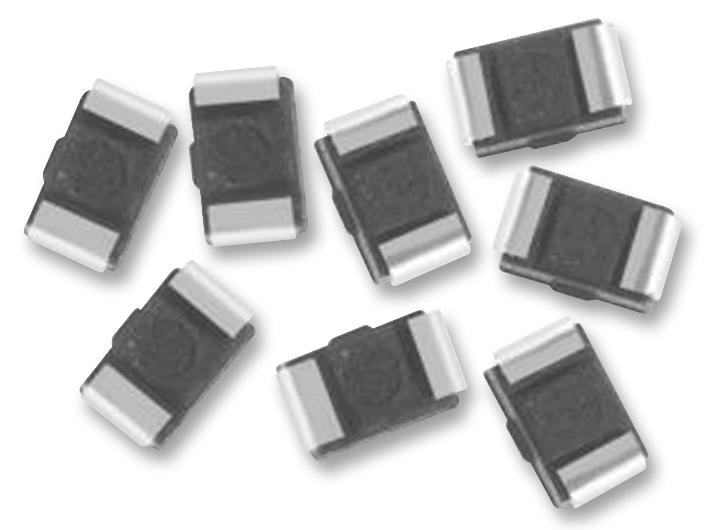

Buy the Vishay Series IMC-0805-01 Wirewound Inductor: 10 nH
Enhance your electronic designs with the Vishay IMC-0805-01 surface mount wirewound inductor. Featuring high Q, broad inductance range from 2.2 nH to 10,000 nH, and high self-resonant frequency, it ensures optimal performance in RF and signal filtering applications. Its RoHS compliance, halogen-free construction, and compatibility with vapor phase and infrared reflow soldering make it ideal for automated manufacturing. Available with tape and reel packaging, this component guarantees reliability and efficiency for demanding electronic projects.
Order your Vishay Series IMC-0805-01 wirewound inductor today and optimize your RF and filtering circuits with reliable, RoHS-compliant components.
