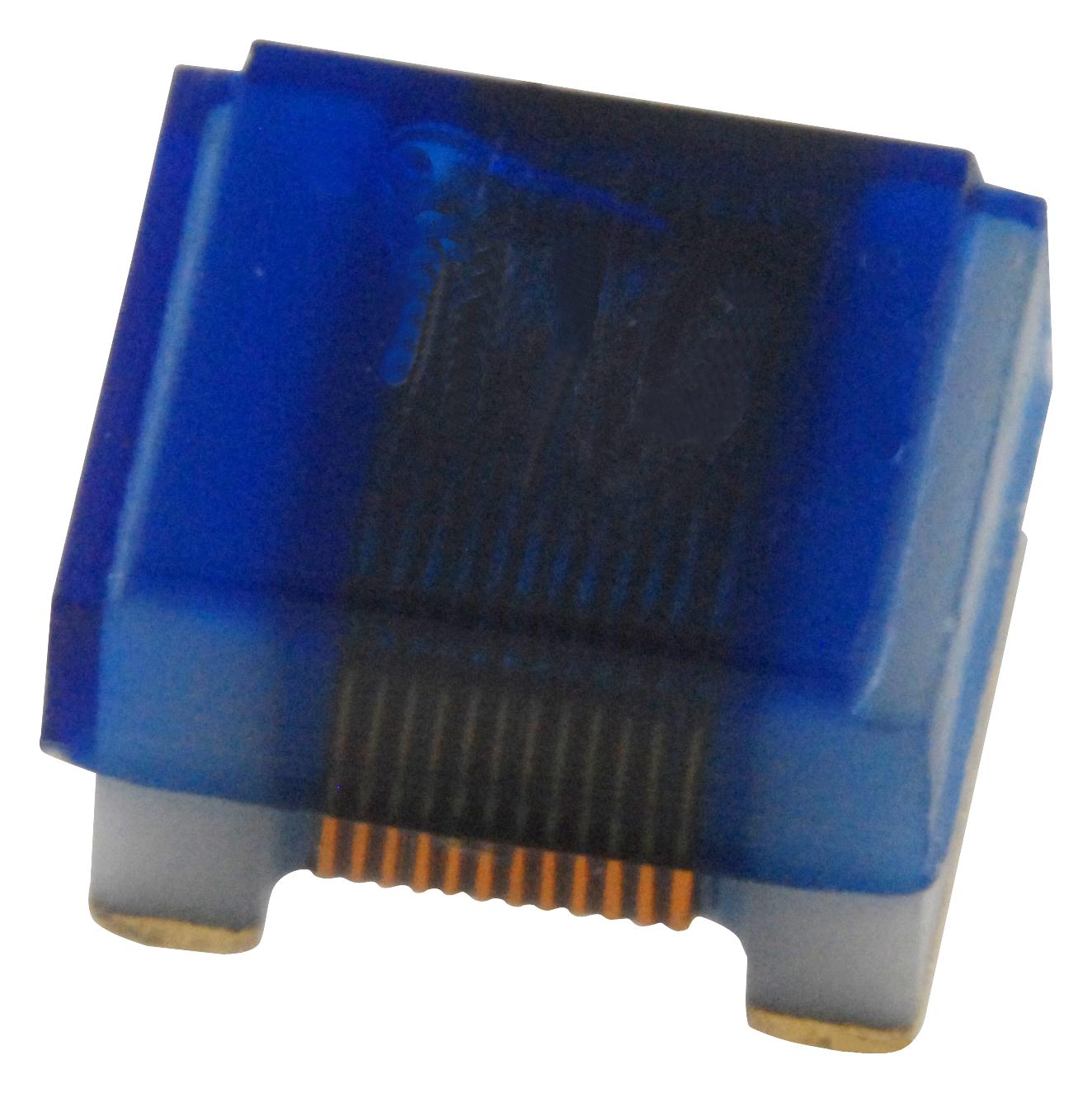

Vishay IMC1008ER15NJ Surface Mount Inductor
The IMC-1008 is a high-frequency surface mount inductor designed for RF and power applications. It features wirewound construction with high self-resonant frequency and Q values at elevated frequencies. Suitable for vapor phase and infrared reflow soldering, it offers inductance values ranging from 3.3 nH to 47,000 nH and operates effectively within temperatures of -40°C to +125°C. The component's ceramic and ferrite cores ensure low loss and high stability, making it ideal for high-speed digital and RF circuits demanding precise inductance, high current capability, and reliable performance under varying environmental conditions.
Vishay IMC1008ER15NJ Surface Mount Inductor Specifications:
- Inductance Range: 3.3 nH to 47,000 nH
- Operating Temperature: -40°C to +125°C
- Core Material: Ceramic from 3.3 nH to 1000 nH; Ferrite from 1200 nH to 47,000 nH
- Standard Packaging: Tape and reel for automated handling, 2000 units per reel
- Size: Standard surface mount package, actual dimensions vary per inductance value
- Soldering: Compatible with vapor phase and infrared reflow processes
- Electrical Characteristics: High self-resonant frequency, high Q at higher frequencies
- Test Frequencies & Q Values: Up to 20,000 MHz, Q values up to 100 at specific frequencies
- Tolerance: Typically 5%, some models 3%
- Frequency Range: Up to 100,000 MHz for SRF measurement
- Material: Copper wirewound, ceramic or ferrite core, RoHS compliant
- Designed for RF, high-speed digital, and power applications
Buy the Buy Vishay High Frequency Surface Mount Inductor Part Number IMC1008 Online
Discover the high-performance Vishay IMC1008 surface mount inductor, ideal for RF, high-speed digital, and power applications. Featuring wide inductance range, high Q factor, and excellent temperature stability from -40°C to +125°C, this component ensures reliable operation under demanding conditions. Its rugged wirewound construction supports vapor phase and infrared reflow soldering, making assembly straightforward. Whether working on RF filters, power supplies, or digital circuits, the IMC1008 offers low losses, high self-resonant frequencies, and consistent inductance, ensuring your project meets precise performance standards with ease. Buy online now for efficient procurement and seamless integration into your designs.
Order your Vishay IMC1008 high-frequency inductor today and enhance your RF and digital circuit performance with reliable, high-quality components.
Frequently Asked Questions
Where can I buy Vishay IMC1008ER15NJ?
You can click on the BUY or RFQ button to purchase IMC1008ER15NJ from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part IMC1008ER15NJ?
You can download the IMC1008ER15NJ datasheet or visit the Vishay website for support.
Who is the manufacturer of IMC1008ER15NJ?
Vishay
